SKU: SKU: HKS80310-AM001
Application
Specifications

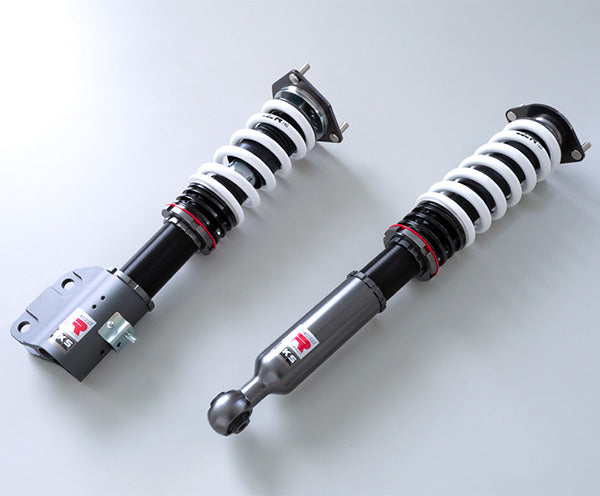

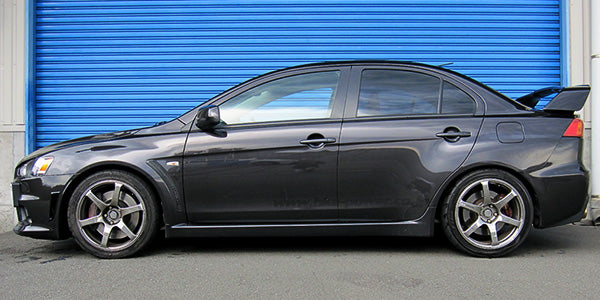

LANCER EVOLUTION X CZ4A The fun to drive at will and the balance can be adapted from circuit to winding road. Reised Driving-Comfort, "Ultimate All-Rounder" Application Engine 4B11 Model Year 07/10 - 15/09 Remarks It is suitable for 300ps spec. Model After 2008 /10 Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Spherical bearing Spherical bearing Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Possible Possible Damping force adjustment with wire - 〇 Helper spring (Spring rate N/mm) 〇 (19.8) 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 670 654 692 ～ 627 692 ～ 627 Against stock -30 -46 -8 ～ -73 -8 ～ -73 REAR Ride height *1 661 644 679 ～ 612 679 ～ 612 Against stock -18 -35 0 ～ -67 0 ～ -67 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that the
Source: HKS Japan · Detail page
