SKU: SKU: MLR13535
1300 Series Hydraulic Bearing:Ford:Lenco CS,B&J: Bellhousing Mount:W-M/C

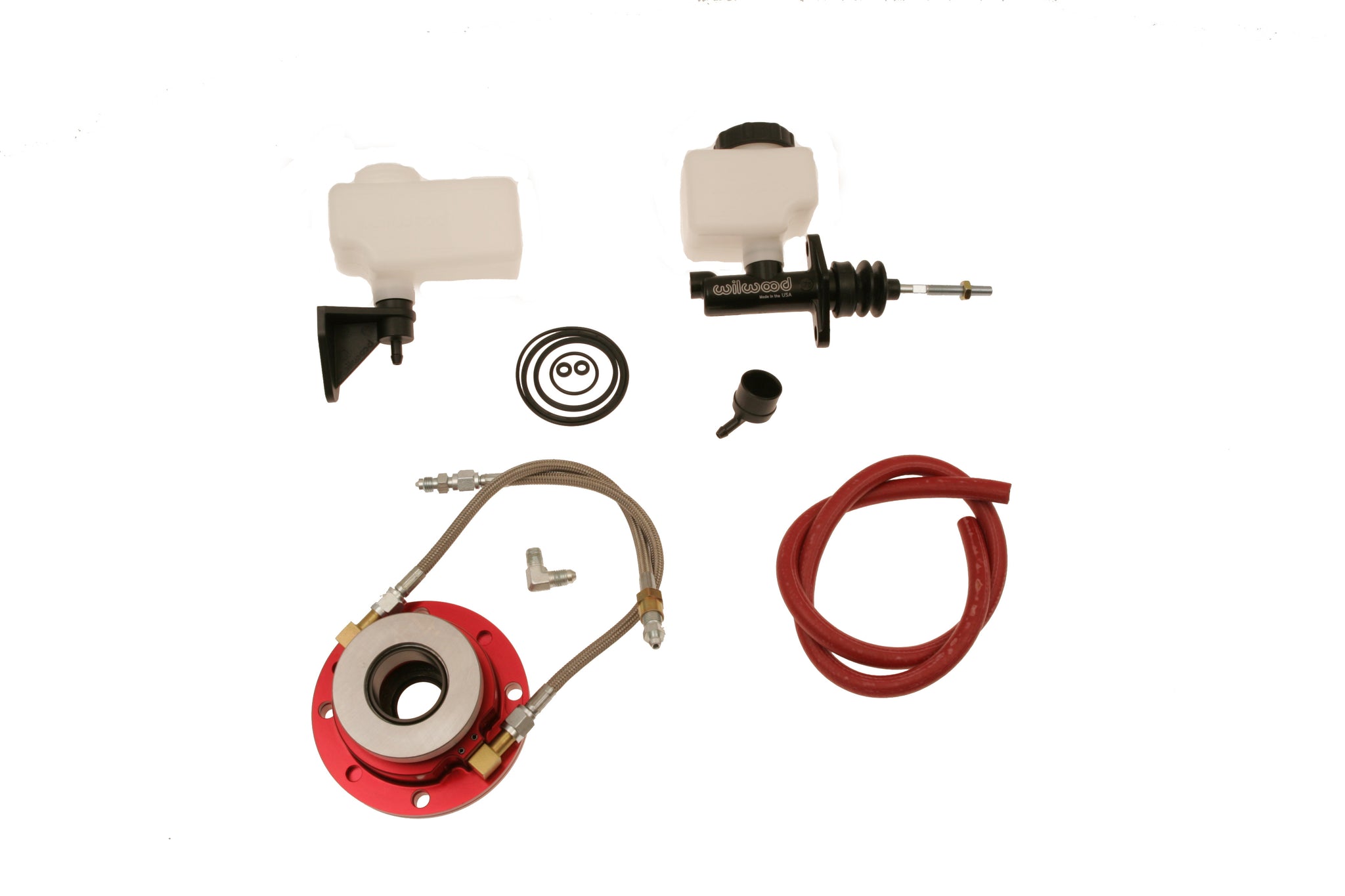

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.
| Height 3 Spacers | 2.890In. |
| Height 2 Spacers | 2.740 |
| Height 1 Spacer | 2.590In. |
| Bearing Face O.D. (in.) | 3.000 |
| Bearing Face I.D. (in.) | 1.590 |
| Master Cylinder | Universal |
| Master Cylinder Bore Size | 0.750 |
| Stroke | 1.2In. |
| Output Port Thread | 1/8In. NPT |
| Quantity | Sold individually. |
| "A" Dimension | 2.50 in. to 2.99 in. |
| Stock Collar I.D. (in.) | 4.850In. |
| Note 2 | This bearing will NOT work with counter weighted diaphragm pressure plates. |
| Note 3 | This kit comes with a universal master cylinder that is not specific to any firewall. Customer is responsible for engineering and fabricating master cylinder mount with a 6:1 pedal ratio for proper pedal feel and stroke. |
Note: This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764
