SKU: SKU: MLR1364
1300 Series Hydraulic Bearing:GM:Tremec TKO 500/600,3550

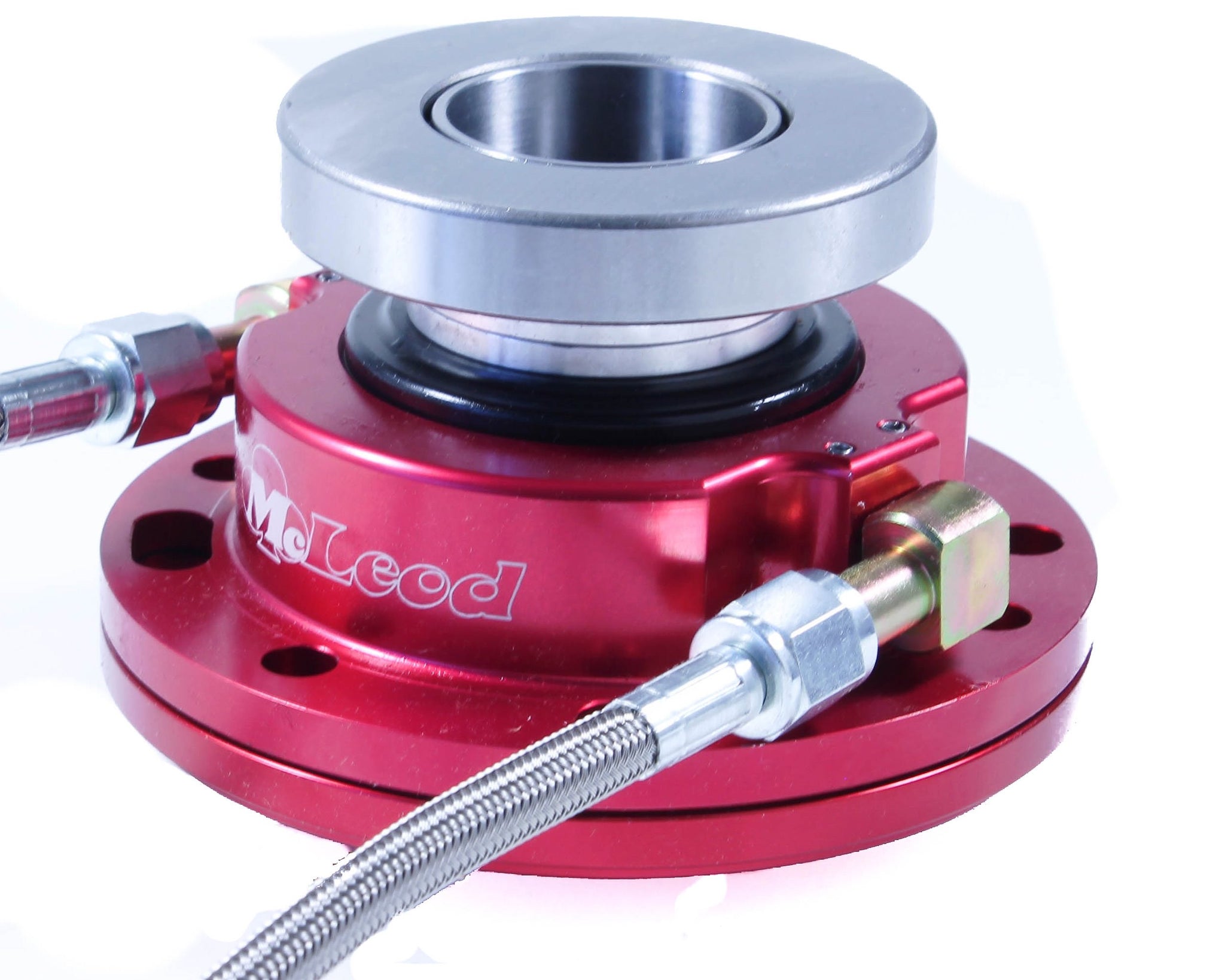

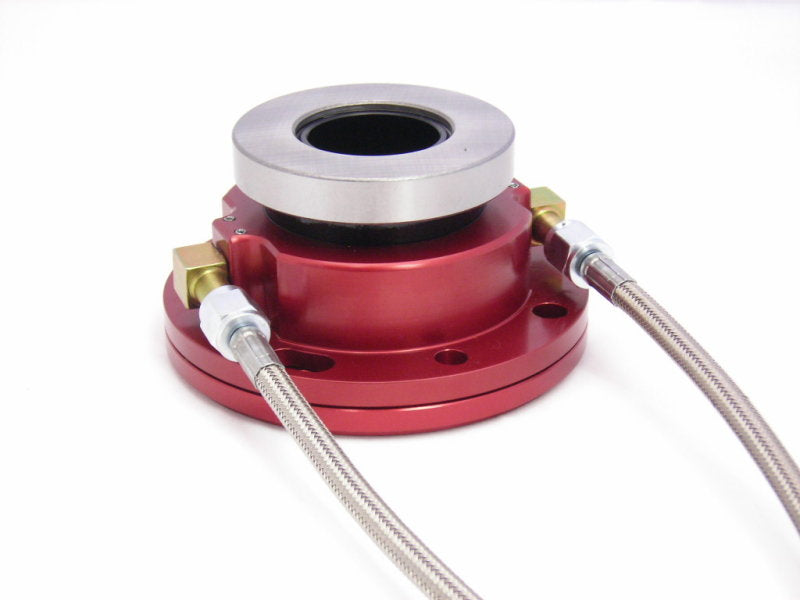

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.
| Transmission | Tremec TKO 500/600 |
| "A" Dimension | 2.50 in. to 2.99 in. |
| Spline | 1 1/8In. x 26 |
| Stock Collar I.D. (in.) | 4.680In. |
| Height 3 Spacers | 2.890In. |
| Height 2 Spacers | 2.740 |
| Height 1 Spacer | 2.590In. |
| Bearing Face O.D. (in.) | 3.000 |
| Bearing Face I.D. (in.) | 1.590 |
| Quantity | Sold individually. |
| Note 2 | This bearing will NOT work with counter weighted diaphragm pressure plates. |
Note: This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764
