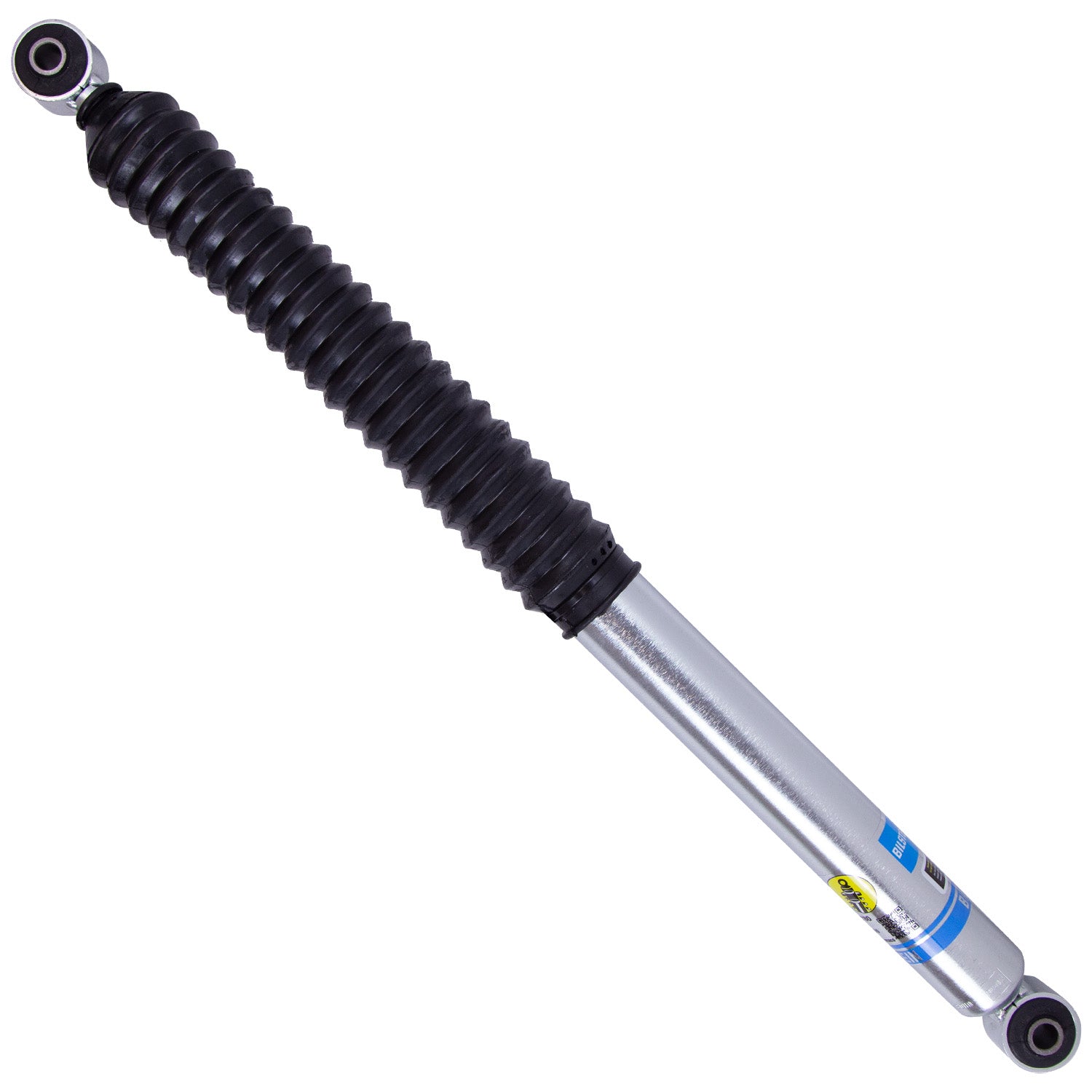

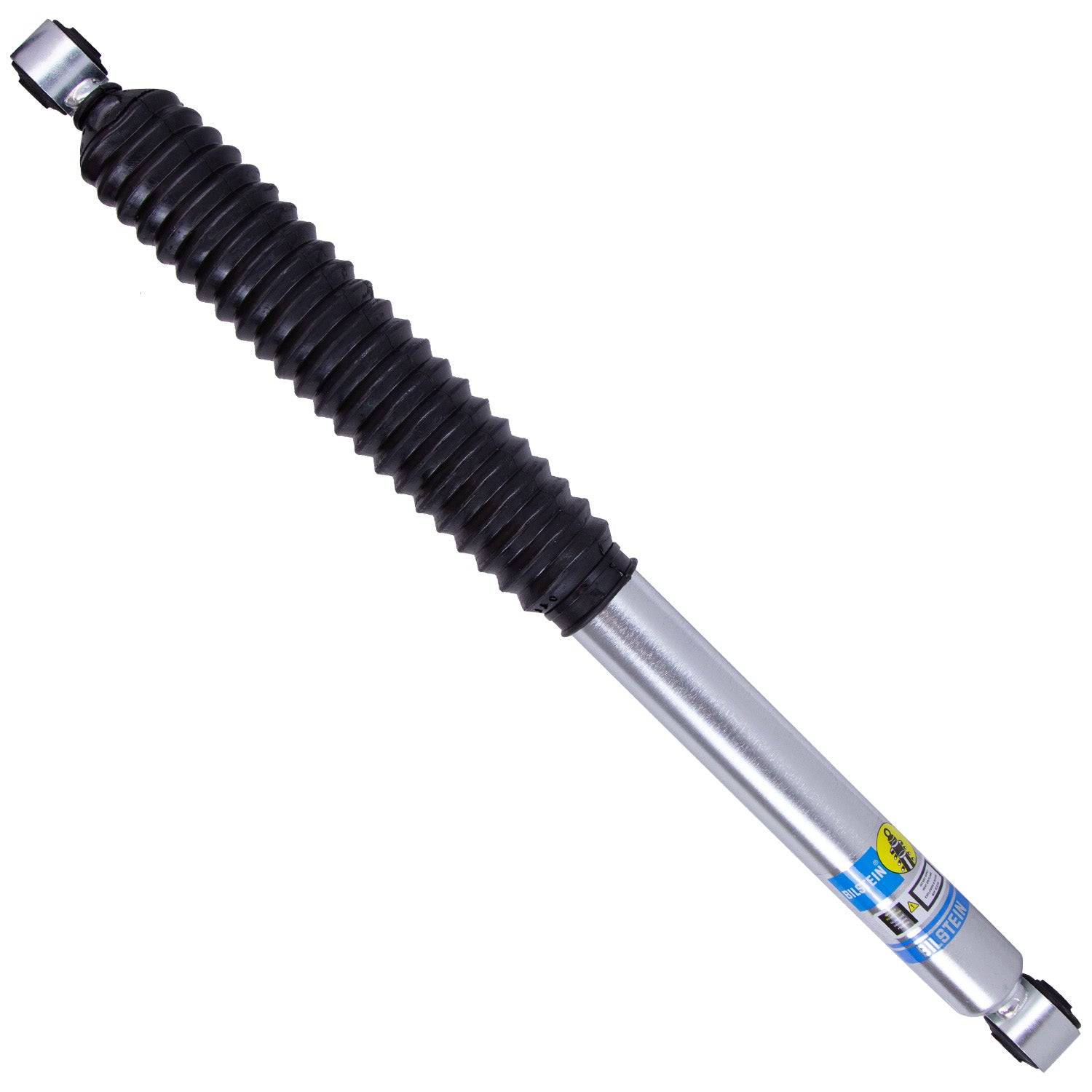

Bilstein 5100 Series 13-18 Ram 3500 Rear Monotube Shock Absorber - 2-3in. Lift - 24-285780

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Collapsed Length (in): 19.57
• Extended Length (in): 29.88
• Extended Length (mm): 759.0
• Series: B8 5100
• Boot Included: Black Bellows
• Lower Mount Type: Eye 14.4mm
• Upper Mount Type: Eye 14.4mm
• Internal Design: Monotube
• Reservoir: No
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-coilover)
• Finish: Zinc Plated
• Spring Seat Included: No
• Piston Diameter: 46mm
• Collapsed Length (mm): 497.0
• Stroke/Travel Length (in): 10.31
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 261.9

Application

• Ram 3500 2013-2026
