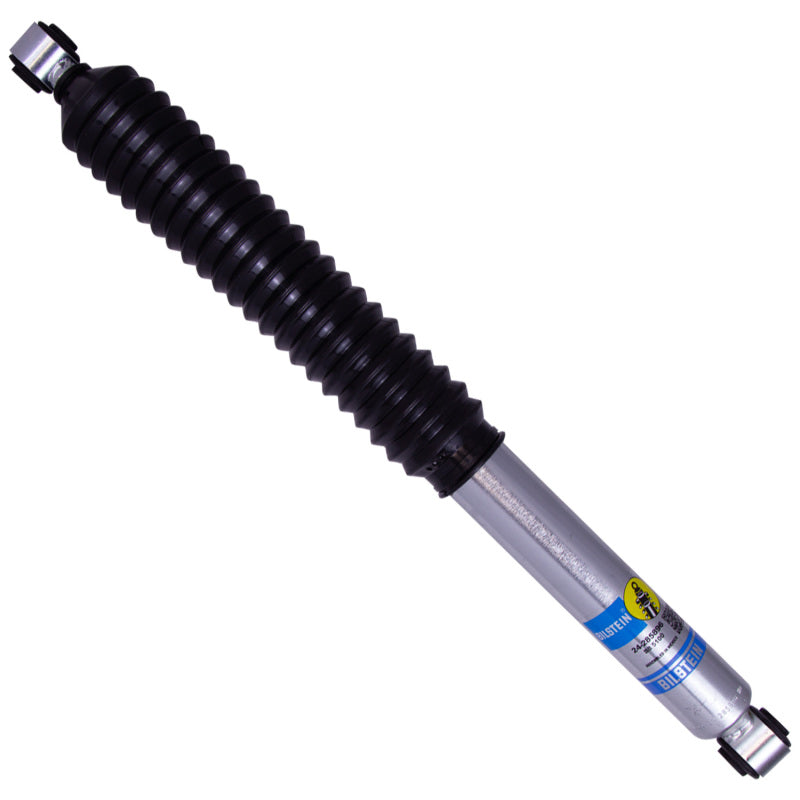

Bilstein 14-18 Silverado 1500 / 19 1500 LD / 14-18 Sierra 1500 B8 5100 Shock Rear - 24-285896

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Extended Length (mm): 665.5
• Reservoir: No
• Collapsed Length (mm): 420.8
• Finish: Zinc Plated
• Lower Mount Type: Eye 14.1mm
• Body Design: Smooth Body (Non-coilover)
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 244.6
• Stroke/Travel Length (in): 9.63
• Upper Mount Type: Eye 14.1mm
• Series: B8 5100
• Extended Length (in): 26.20
• Boot Included: Black Bellows
• Internal Design: Monotube
• Collapsed Length (in): 16.57

Application

• Chevrolet Silverado 1500 2014-2018, Silverado 1500 LD 2019, GMC Sierra 1500 2014-2018, Sierra 1500 Limited 2019
