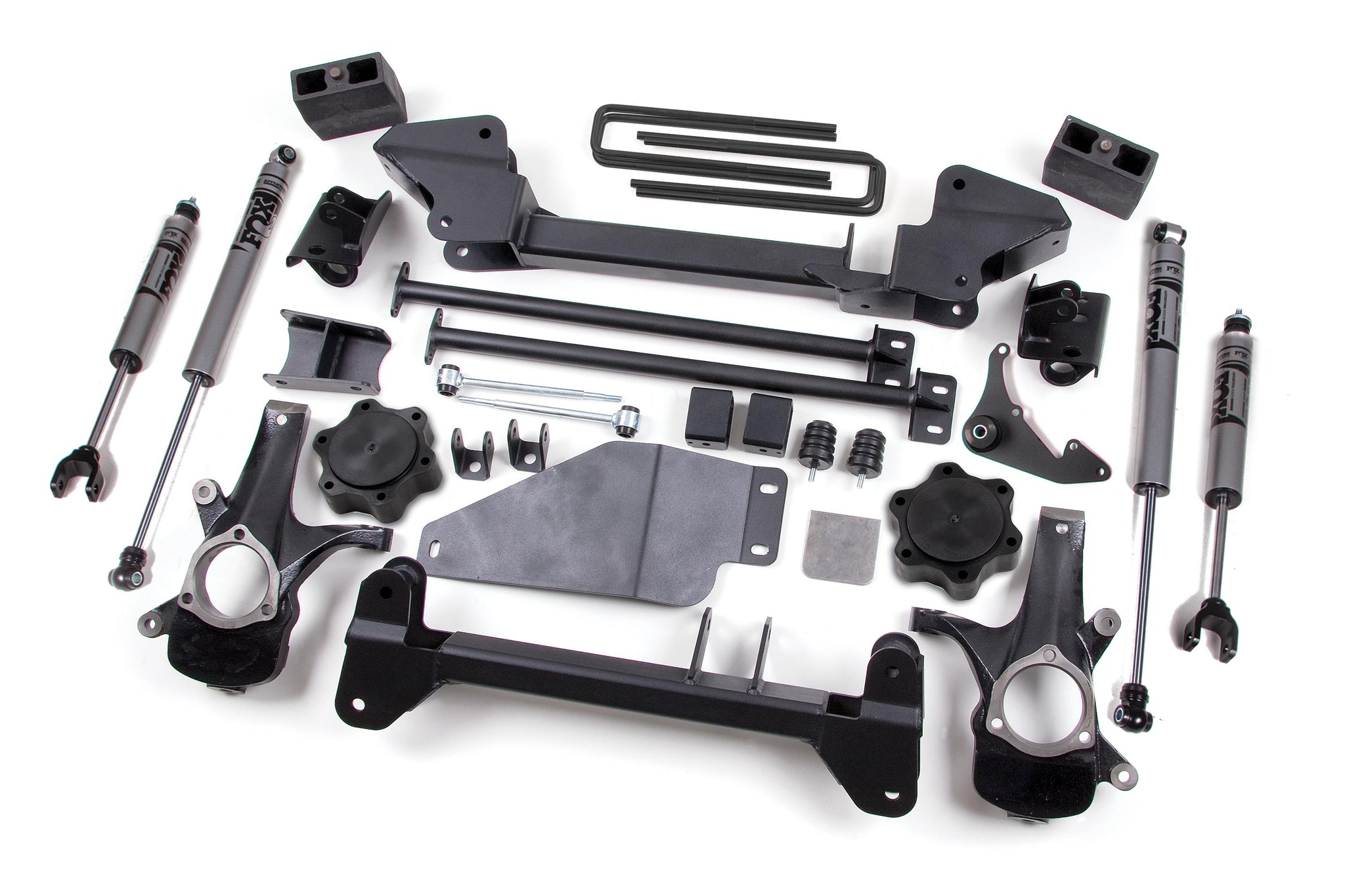

Zone Offroad 99-06 GM K1500 6in Suspension System - Fox - ZONC3F

SKU: SKU: ZORZONC3F

This item is classified as Oversized and may incur an additional handling fee at checkout depending on your shipping location. No additional fees apply for pickup orders.
Oversize Debug
Tier code
Tier priority
Tier max weight (lb)
Tier max girth (in)
Product weight (lb)
L × W × H (in)
Girth L + 2×(W+H)
Requires acktrue

Ready for the big time? Then this is your 6" Lift Kit. Designed for easy installation, value, reliability, and to stand out, which is easy when you can clear 35" tires. Get the look and performance you want out of your 4WD 1999 - 2006 Chevy/GM 1500 Truck.

Features

  • Heavy-duty differential skid slate improves offroad protection
  • High-strength, 1/4" steel construction crossmembers correct lower control arm geometry
  • High-strength, CNC machined, replacement Steering_Knuckles improve strength while correcting steering angles
  • Multi-point differential relocation brackets secure front differential for improved CV operating angles
  • Rear crossmember support kickers add overall strength and rigidity to system

Specifications

Rear Lift Method Cast Blocks
Required Tools Torsion Bar Unloading Tool
Requires Metal Cutting No
Requires Welding Yes
Wheel Size 16 x 8
Wheel Size 2 17 x 9
Wheel Size 3 20 x 9
Accommodates Factory Wheels No
Adjustable No
Back Spacing 4.5"
Back Spacing 2 5"
Back Spacing 3 5.75"
Finish Powdercoat
Front Lift Height 6"
Front Lift Method Torsion Bar Drop
Installation Difficulty 4 out of 5
Installation Time 8 hrs
Lift Type Lift Kit
Max Tire Size 35 x 12.5
Max Tire Size 2 35 x 12.5
Max Tire Size 3 35 x 12.5
Rear Lift Height 5"

Warranty: Limited
