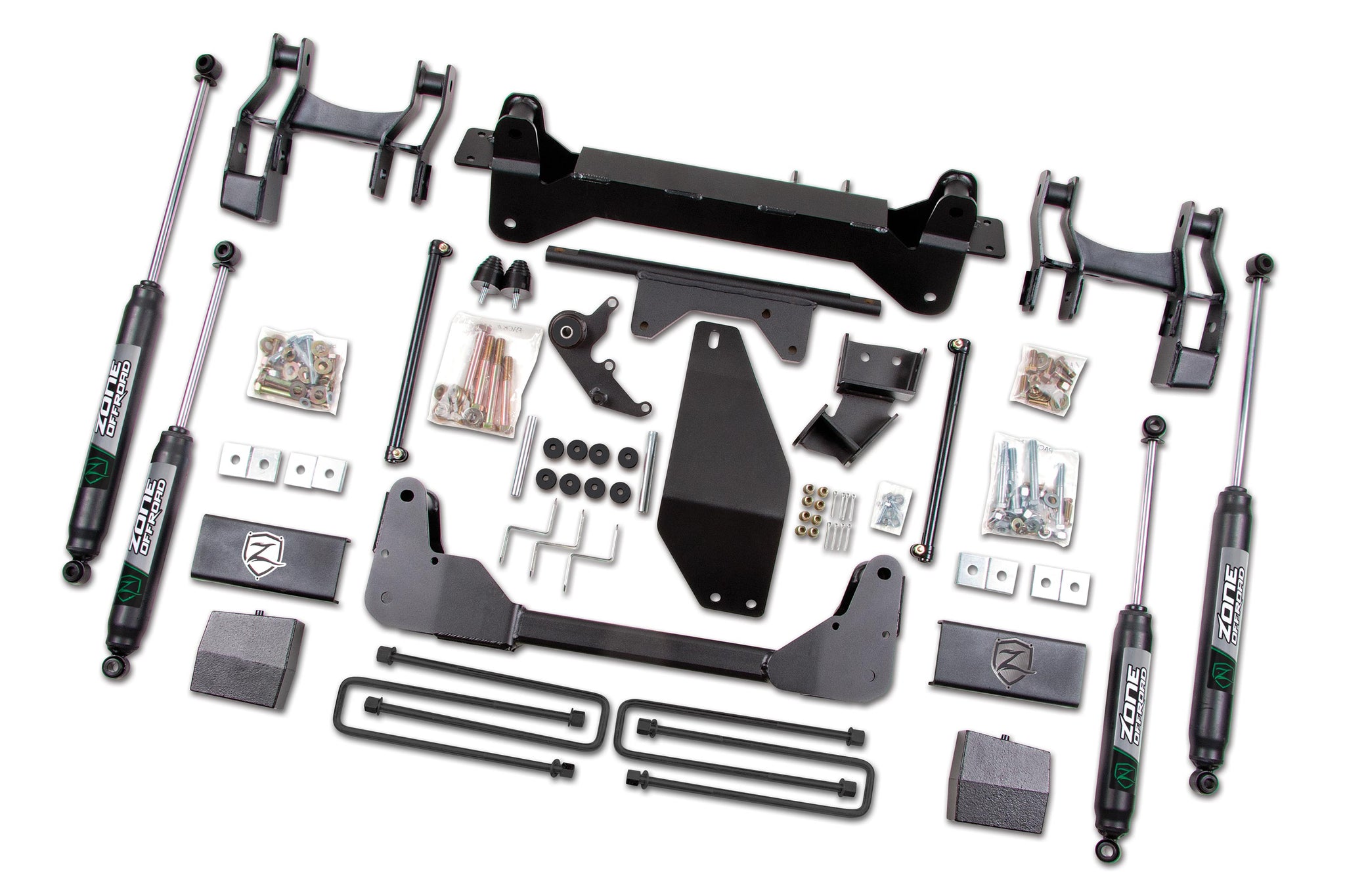

Zone Offroad 88-98 K1500 6in System - Nitro - ZONC14N

SKU: SKU: ZORZONC14N

Turn heads and drop jaws when you lift your Chevy with this 6" Lift Kit. This kit has everything you need to clear 35" tires and all the pieces and parts for optimal steering and drivetrain geometry. Fits 4WD 1988 - 1998 Chevy/GM K1500 truck & SUVs.

Features

  • Heavy-duty differential skid slate improves offroad protection
  • High-strength, 1/4" steel construction crossmembers correct lower control arm geometry
  • Lift system does not change the front track width of the vehicle
  • Multi-point differential relocation brackets secure front differential for improved CV operating angles
  • Relocation bracket allows for reinstallation of the factory spare tire
  • Upper control arm relocation brackets correct front suspension geometry.

Specifications

Installation Difficulty 4 out of 5
Wheel Size 3 20 x 9
Wheel Size 2 17 x 9
Wheel Size Stock
Requires Welding No
Requires Metal Cutting No
Max Tire Size 3 35 x 12.5
Max Tire Size 2 35 x 12.5
Max Tire Size 35 x 12.5
Material 1/4" Steel
Lift Type Lift Kit
Rear Lift Method Cast Blocks
Front Lift Method Torsion Bar Drop
Rear Lift Height 5"
Front Lift Height 6"
Adjustable No
Installation Time 8 hrs
Accommodates Factory Wheels Yes
Finish Powdercoat
Back Spacing 3 6"
Back Spacing 2 6"
Back Spacing Stock

Warranty: Limited
