Zone Offroad 14-18 Ram 2500 5.5in Lift System - Gas - ZOND68N

SKU: SKU: ZORZOND68N

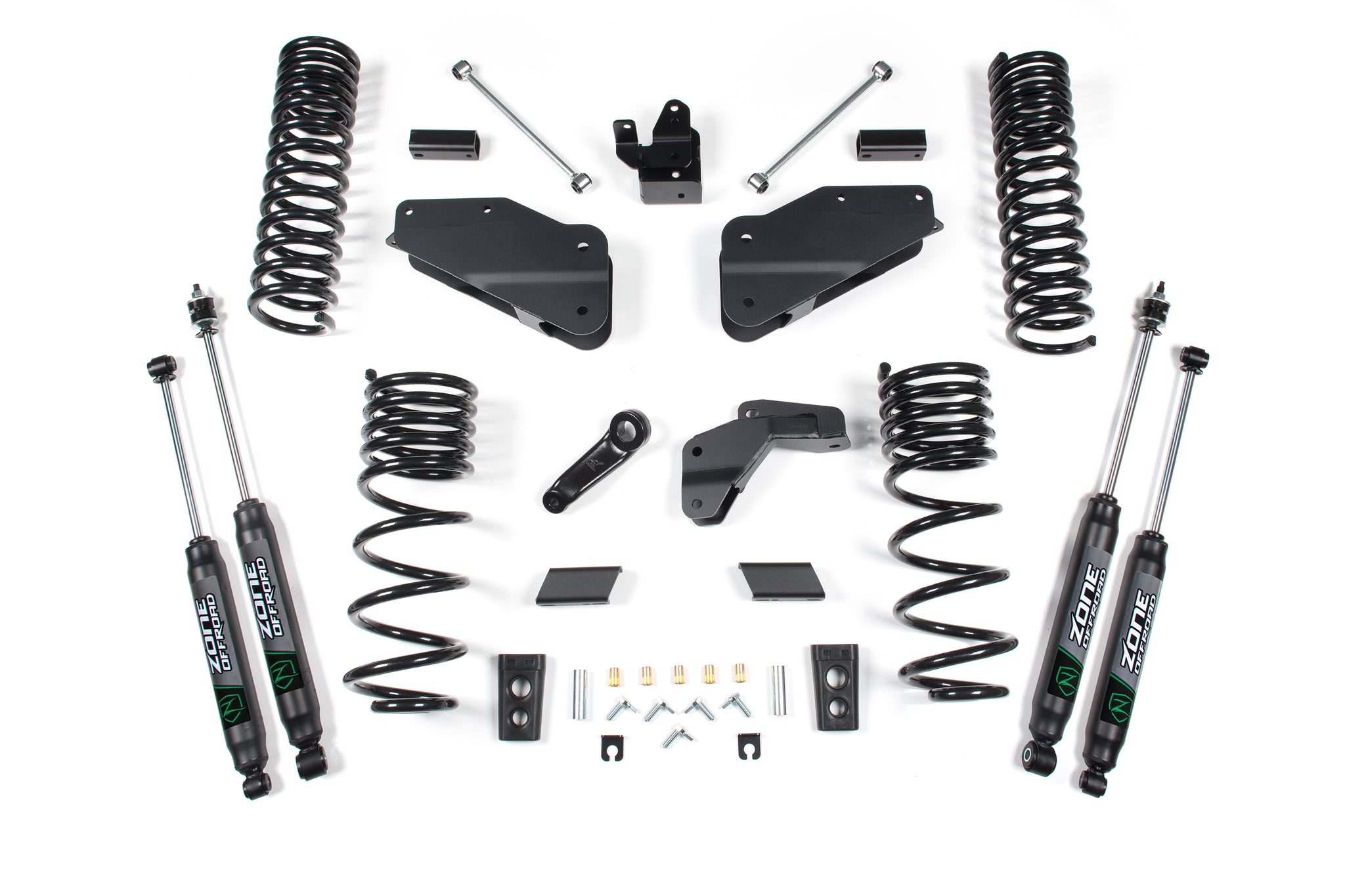

Take your RAM 2500 to new heights with this 5.5" lift kit from Zone Offroad. Kits include everything needed from front/rear coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Features

  • Progressive rate front and rear coil springs improve ride quality and offroad performance while lifting and leveling the stance
  • Radius arm drop brackets to correct caster and improve suspension geometry
  • Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
  • Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles
  • Bump stop extensions, track bar bracket and sway bar correction to correct suspension geometry

Specifications

Rear Lift Method Coil Springs
Requires Metal Cutting No
Requires Welding No
Wheel Size 17 x 9
Wheel Size 2 17 x 9
Wheel Size 3 20 x 9
Accommodates Factory Wheels See Notes
Adjustable No
Back Spacing 4.5"
Back Spacing 2 5.75"
Back Spacing 3 5.75"
Finish Powdercoat
Front Lift Height 5.5"
Front Lift Method Radius Arms
Installation Difficulty 3 out of 5
Installation Time 5 hrs
Lift Type Lift Kit
Max Tire Size 35 x 12.5
Max Tire Size 2 37 x 12.5
Max Tire Size 3 37 x 12.5
Rear Lift Height 4.5"

Warranty: Limited
