SKU: SKU: ZORZOND1N

Zone Offroad 09-10 Dodge 1500 4in Suspension System - ZOND1N

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Oversized item
May incur an oversize handling fee at checkout, depending on your location. No fee for pickup orders.
 You may be contacted for additional fees.
Oversize Debug
Tier code
Tier priority
Tier max weight (lb)
Tier max girth (in)
Product weight (lb)
L × W × H (in)
Girth L + 2×(W+H)
Requires acktrue
Customers also viewed

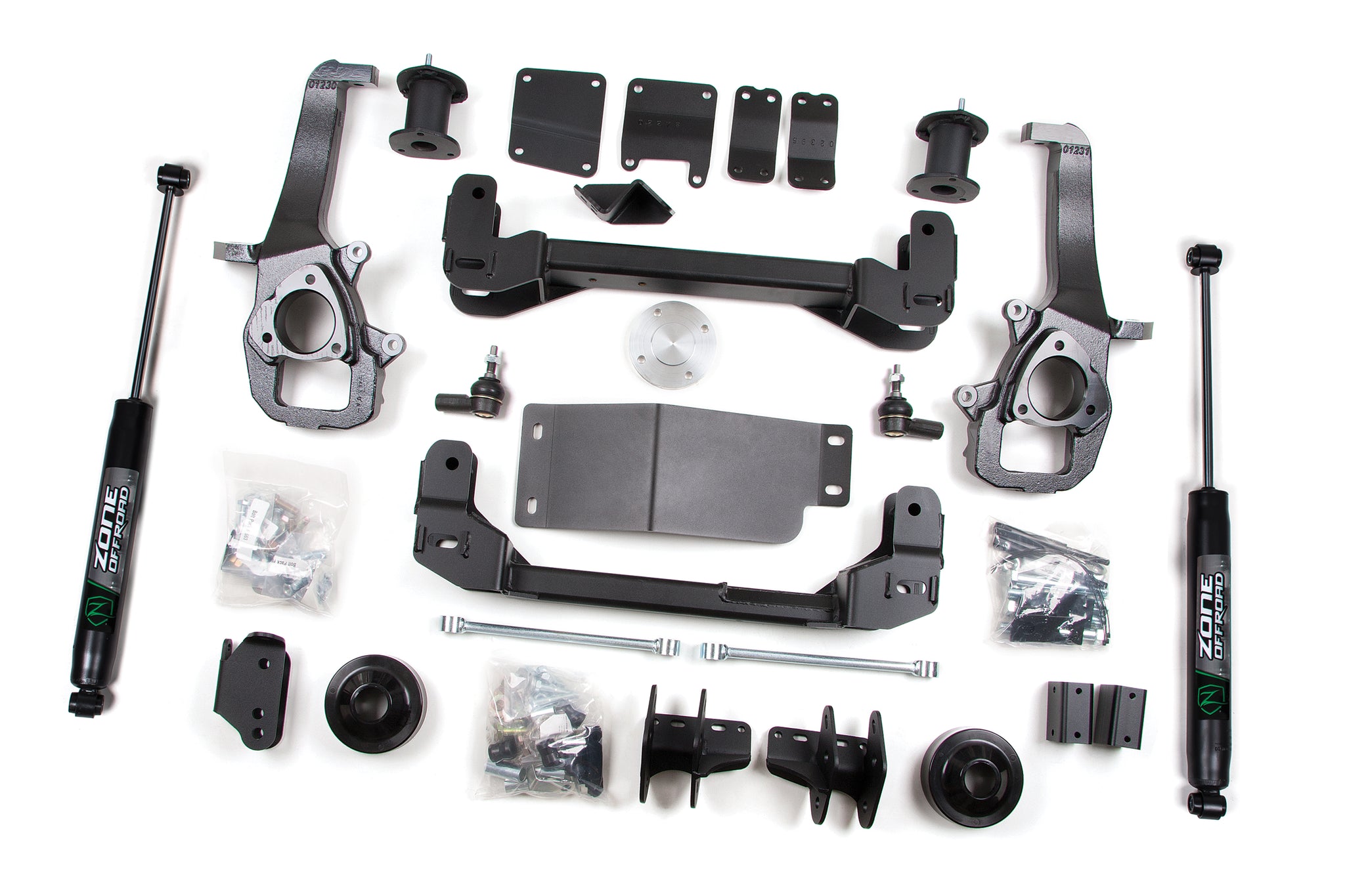

Take your Ram 1500 to new heights with this 4" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear coil spacers to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Features

  • Heavy-duty differential skid slate improves offroad protection
  • High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles
  • Maintains factory ride quality and handling characteristics
  • Rear 2" spacers or 3" coil springs available to achieve desired stance (see important notes)
  • Top-mount strut spacers set ride height, maintain ride quality, and are easy to install

Specifications

Installation Difficulty 3 out of 5
Wheel Size 3 20 x 9
Wheel Size 2 18 x 9
Wheel Size 17 x 9
Requires Welding No
Requires Metal Cutting No
Max Tire Size 3 35 x 12.5
Max Tire Size 2 35 x 12.5
Max Tire Size 35 x 12.5
Lift Type Lift Kit
Rear Lift Method Coil Springs
Front Lift Method Upper Strut Mounts
Rear Lift Height 4"
Front Lift Height 4"
Adjustable No
Installation Time 9 hrs
Accommodates Factory Wheels No
Finish Powdercoat
Back Spacing 3 5"
Back Spacing 2 5"
Back Spacing 4.5"

Warranty: Limited
