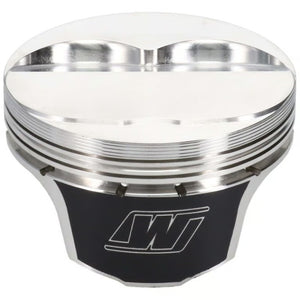

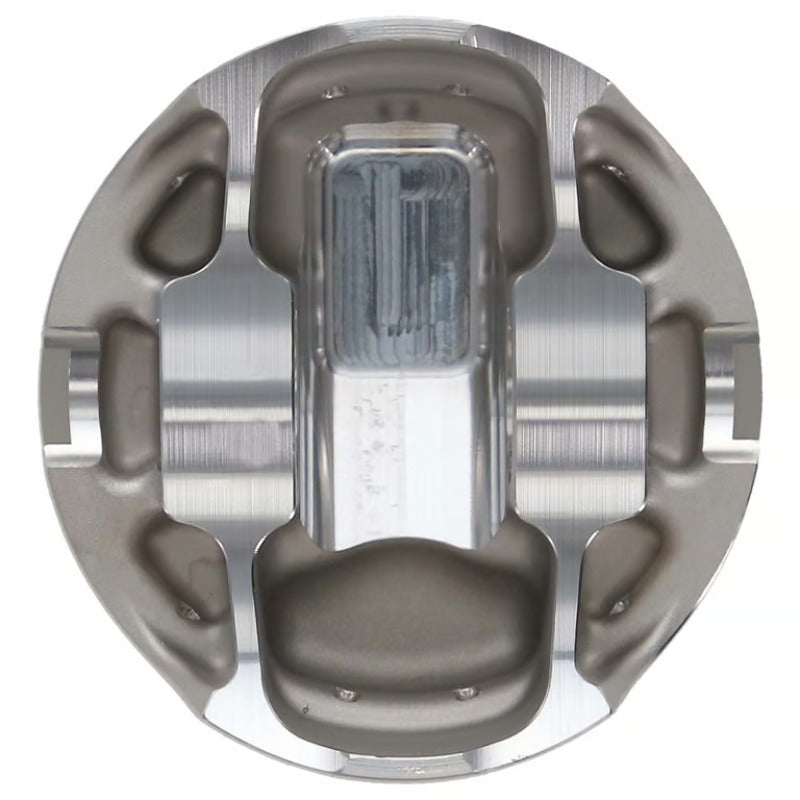

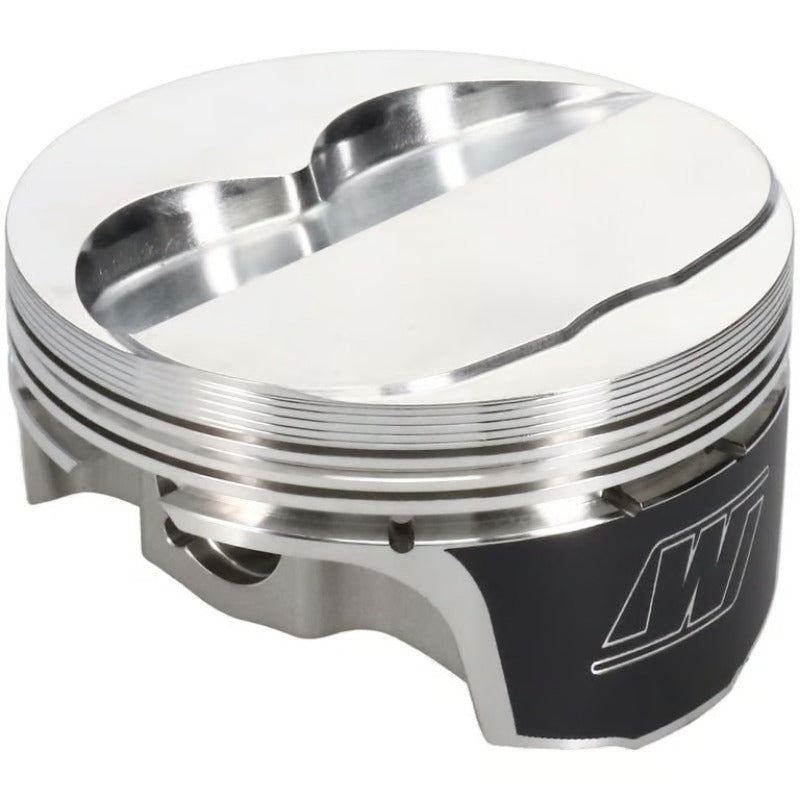

Wiseco RED Series Chevy Small Block 350 4.005in Bore 1.125in CH -2.00 CC Piston Set - RED0043X05
Wiseco RED Series Chevy Small Block 350 4.005in Bore 1.125in CH -2.00 CC Piston Set - RED0043X05
Wiseco RED Series Chevy Small Block 350 4.005in Bore 1.125in CH -2.00 CC Piston Set - RED0043X05
Wiseco RED Series Chevy Small Block 350 4.005in Bore 1.125in CH -2.00 CC Piston Set - RED0043X05
Wiseco RED Series Chevy Small Block 350 4.005in Bore 1.125in CH -2.00 CC Piston Set - RED0043X05
Wiseco RED Series Chevy Small Block 350 4.005in Bore 1.125in CH -2.00 CC Piston Set - RED0043X05
Wiseco RED Series Chevy Small Block 350 4.005in Bore 1.125in CH -2.00 CC Piston Set - RED0043X05
Wiseco RED Series Chevy Small Block 350 4.005in Bore 1.125in CH -2.00 CC Piston Set - RED0043X05
Wiseco RED Series Chevy Small Block 350 4.005in Bore 1.125in CH -2.00 CC Piston Set - RED0043X05
Wiseco RED Series Chevy Small Block 350 4.005in Bore 1.125in CH -2.00 CC Piston Set - RED0043X05

Wiseco Part # WISRED0043X05

Wiseco RED Series Chevy Small Block 350 4.005in Bore 1.125in CH -2.00 CC Piston Set - RED0043X05

$1,329.99 CAD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Canadian since 2005 Questions? Email sales@raptorracing.com

Appropriately dubbed the RED series, these forged pistons utilize Race Engineered Design to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

Features

  • Wiseco Chevrolet Small Block 350 Piston Set, 4.005 in. Bore, 1.125 in. Compression Height, 0.927 in. Pin Diameter, RED Series, Set of 8.
  • Chevrolet 350/383 -2cc Dome 1.125 X 4.00
  • Piston Set, Chevrolet, Small Block 350, 4.005 in. Bore, RED Series, Set of 8.

Manufacturer's Limited 30 Day Warranty

  • Product Series: RED Series
  • Bore Diameter: 4.005 IN
  • Stroke: 3.750 IN
  • Rod Length: 6.000 IN
  • Compression Height: 1.125 IN
  • Cylinder Head: 23 Degree
  • Piston Volume: -2.00 CC
  • Piston Material: 2618
  • Skirt Coating: Yes
  • Forging Type: Strutted
  • Piston Quantity: 8
  • Wrist Pin Quantity: 8
  • Ring Set Included: Yes
  • Ring Set Part Number: 4007GFX
  • Ring Quantity: 8
  • Top Compression Ring Thickness: 1.20 MM
  • Top Ring Material: Steel
  • Second Compression Ring Thickness: 1.20 MM
  • Second Ring Material: Ductile Iron
  • Oil Ring Thickness: 3.00 MM
  • Oil Ring Tension: Standard
  • Third Ring Material: Stainless Steel
  • Wrist Pin Included: Yes
  • Wrist Pin Part Number: S736
  • Wrist Pin Material: 5115
  • Wrist Pin Style: Floating
  • Wrist Pin Outer Diameter: 0.927 IN
  • Wrist Pin Retainer Included: Yes
  • Wrist Pin Retainer Part Number: W5595
  • Wrist Pin Retainer Quantity: 16
  • Wrist Pin Retainer Style: Wire Lock
  • Make: Chevrolet
  • Engine: Small Block 350
  • Product Type: Engine Piston Set
  • Wrist Pin Retainer Thickness: 0.072 IN
  • Wrist Pin Retainer Material: Chrome Silicone
