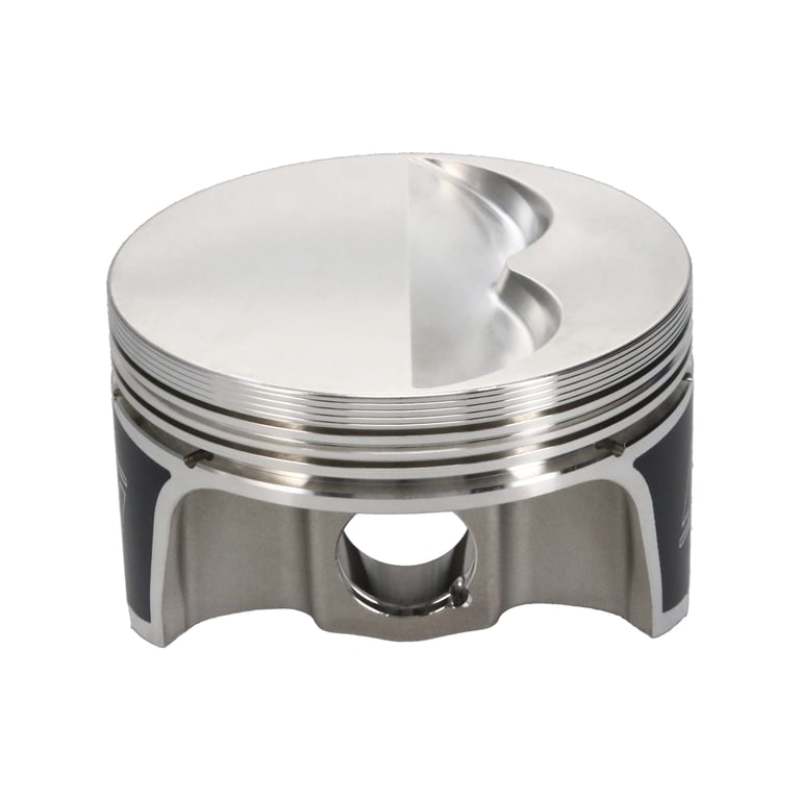

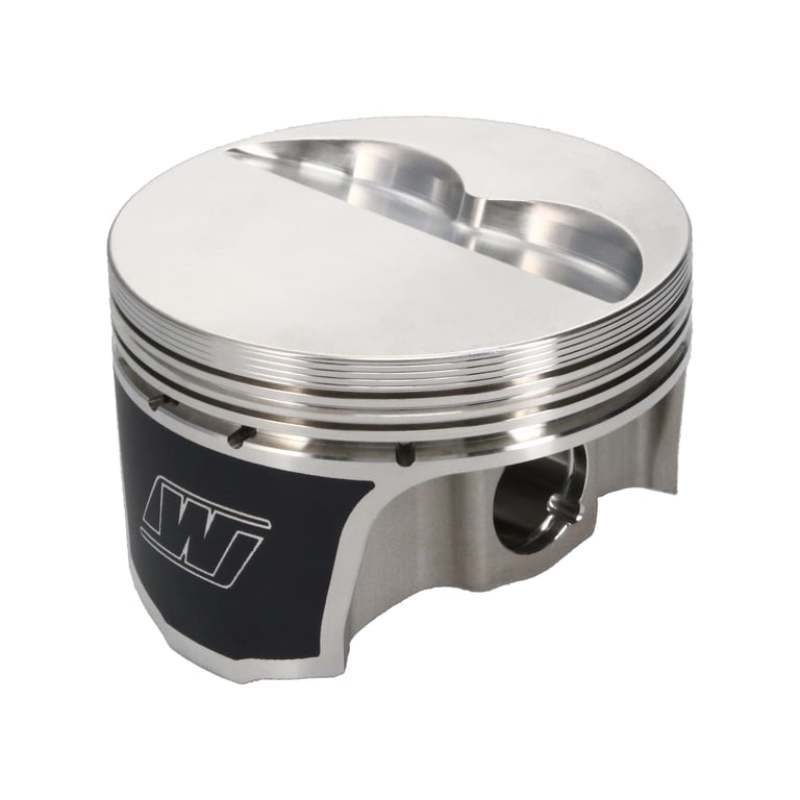

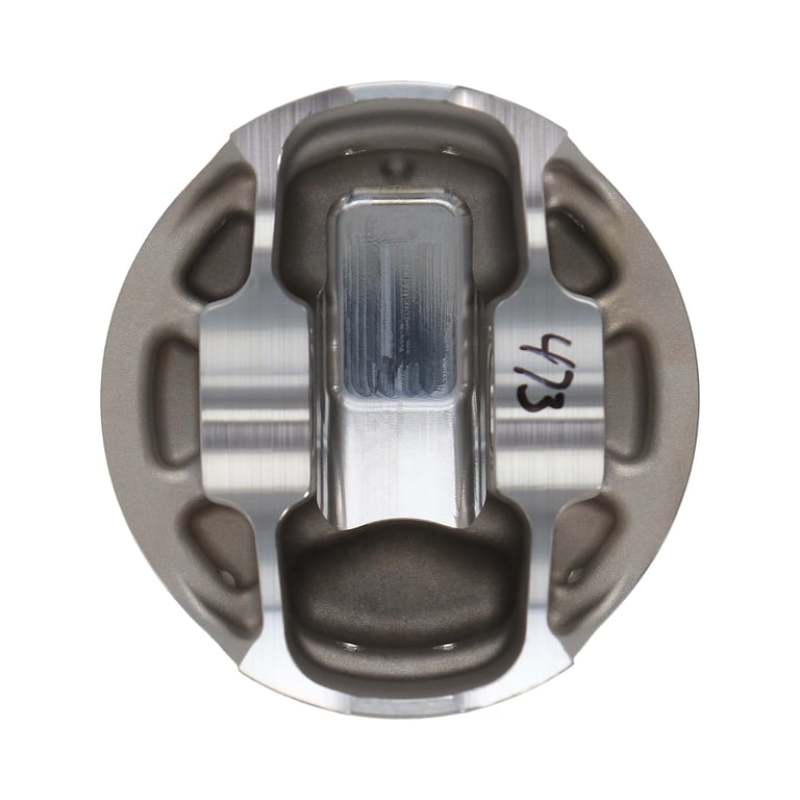

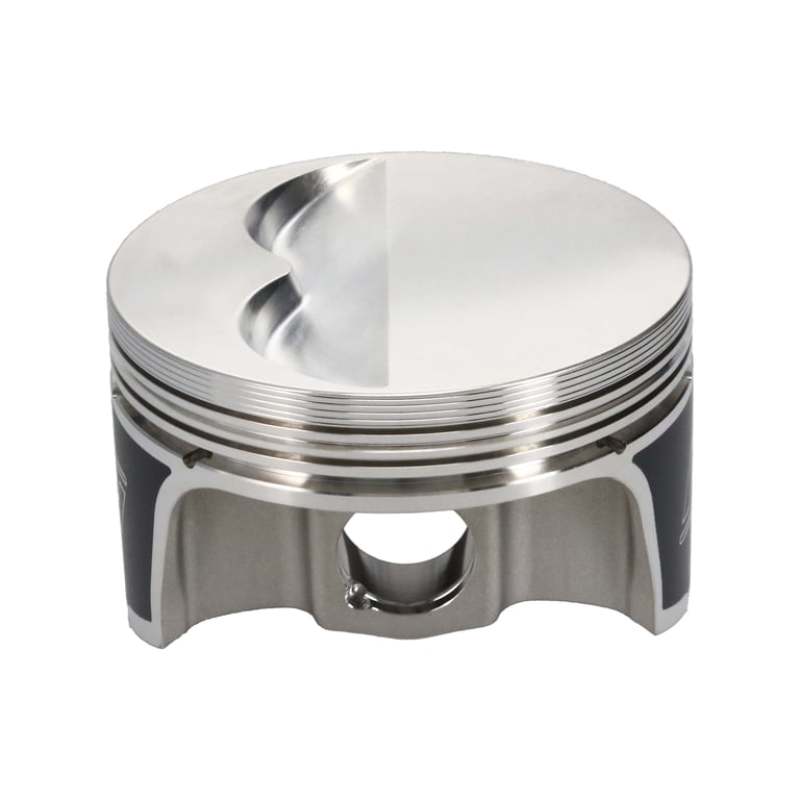

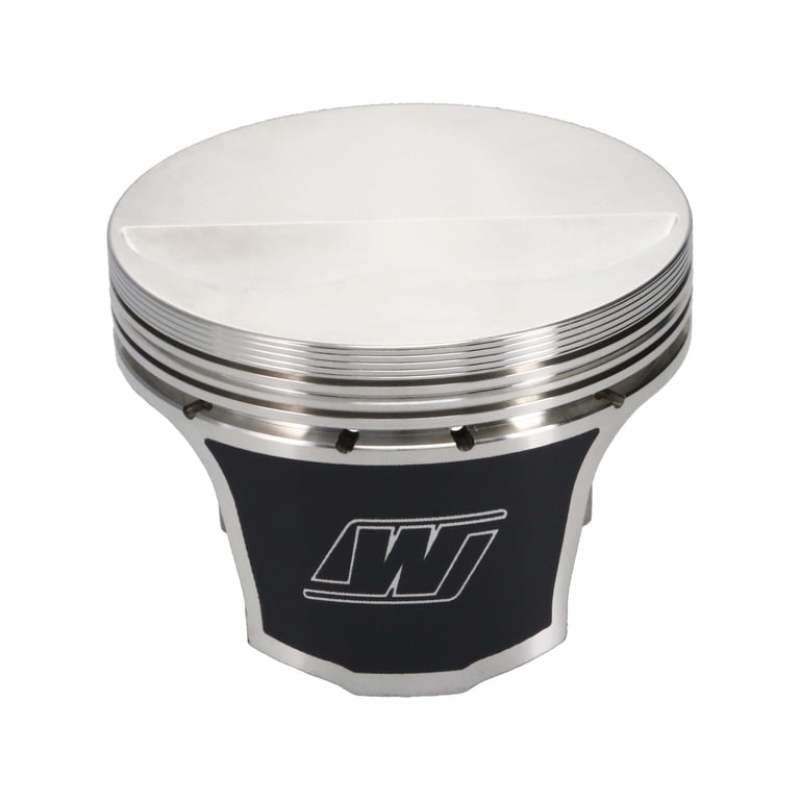

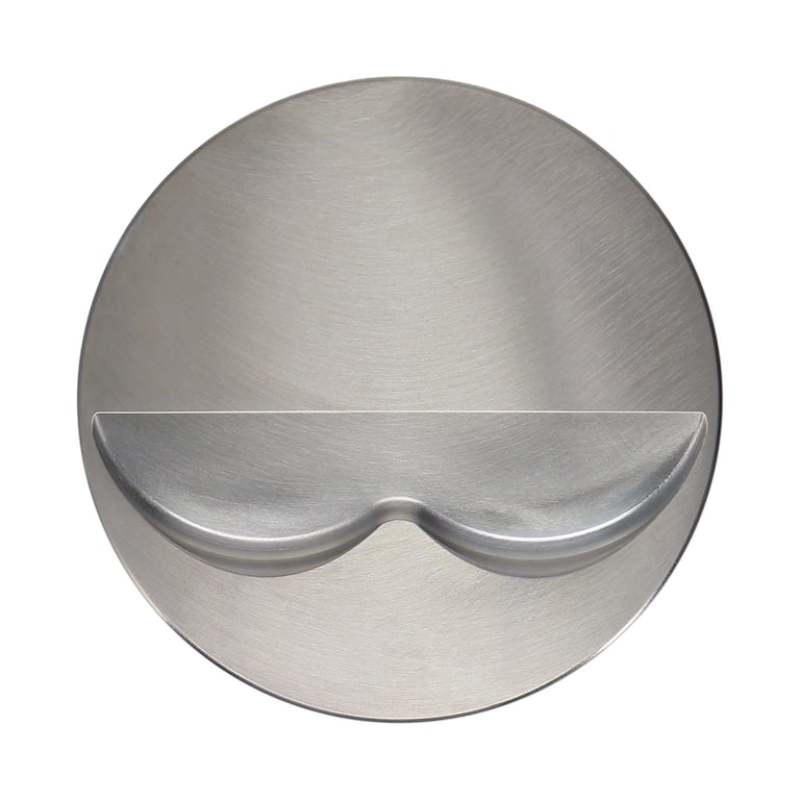

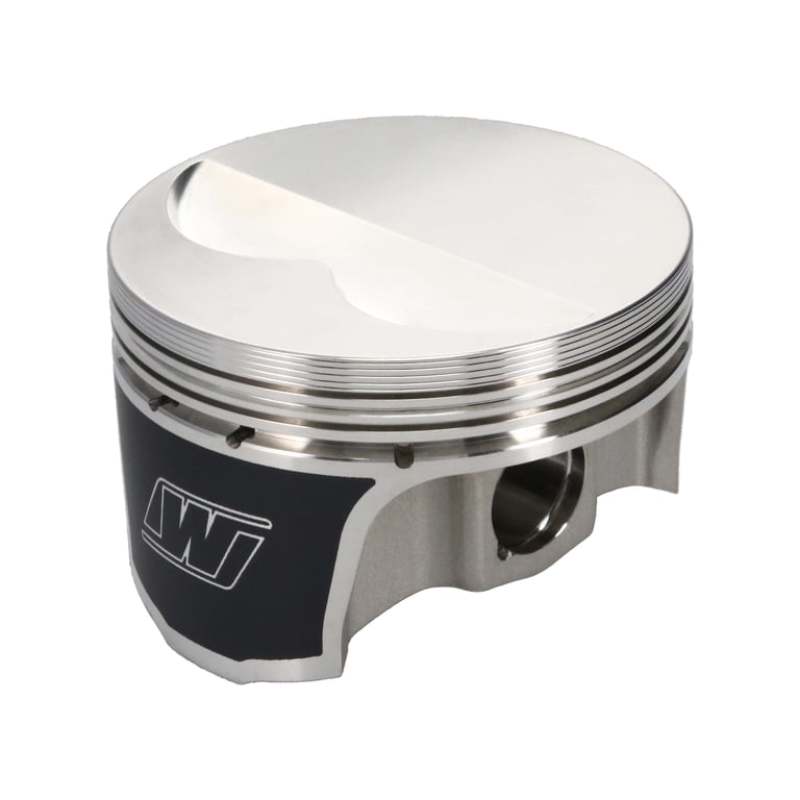

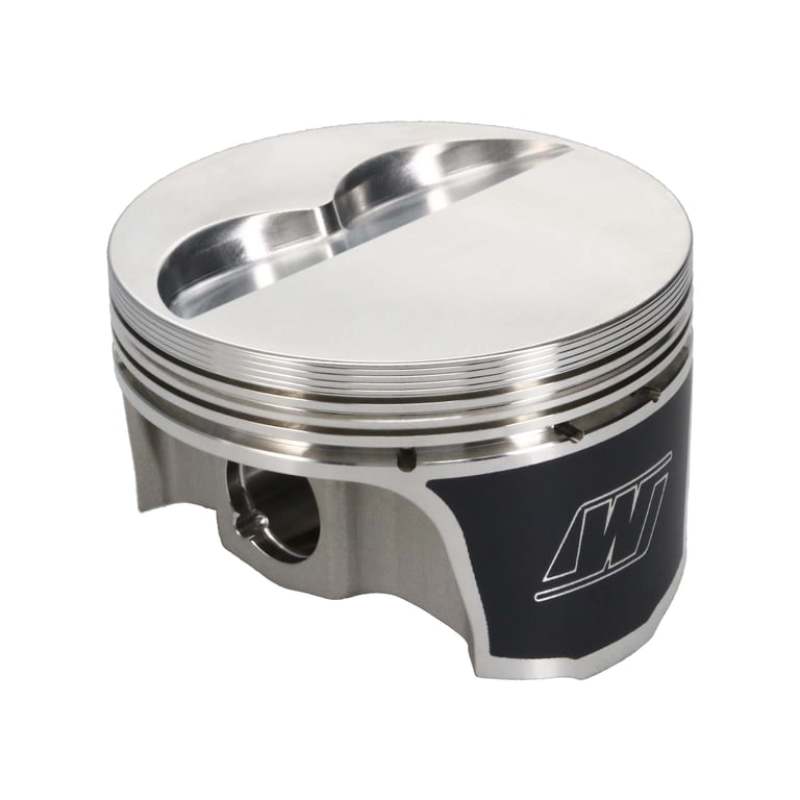

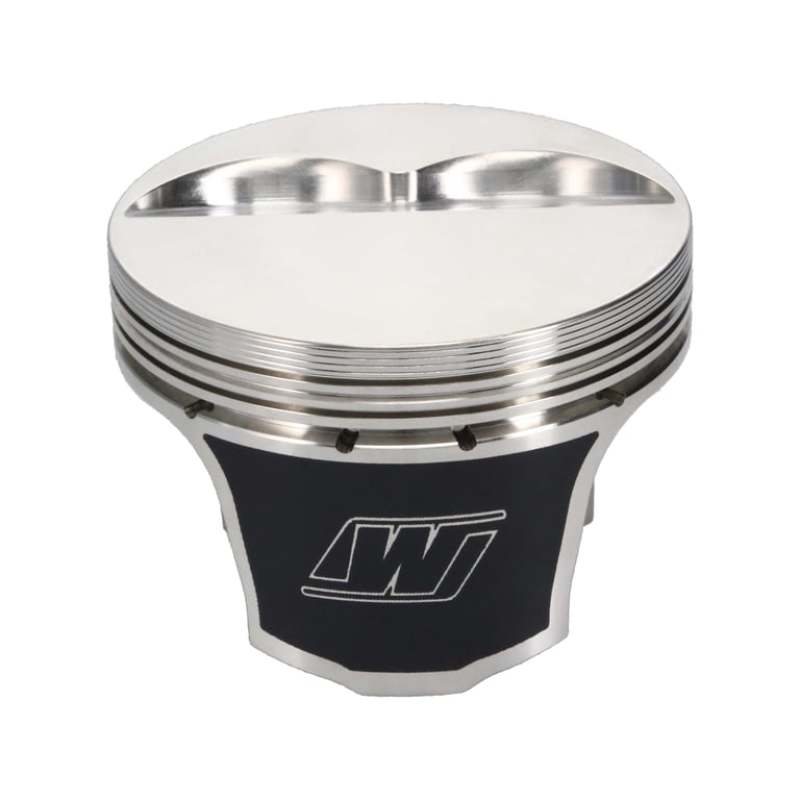

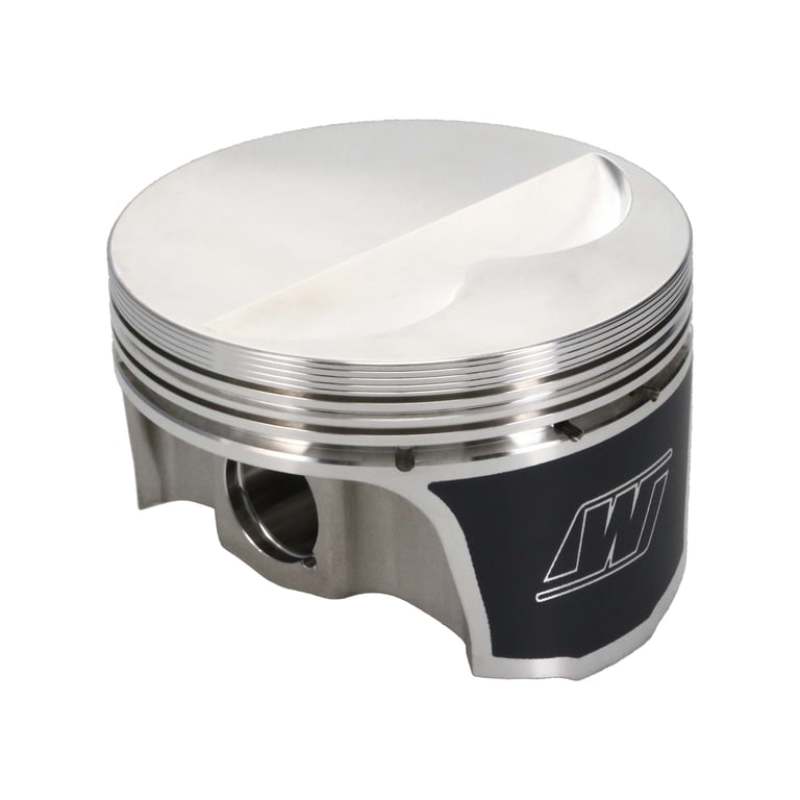

Wiseco Chevy SB RED Series Piston Set 4040in Bore 1250in Compression Height 0927in Pin - Set of 8 - RED0017X4
Wiseco Chevy SB RED Series Piston Set 4040in Bore 1250in Compression Height 0927in Pin - Set of 8 - RED0017X4
Wiseco Chevy SB RED Series Piston Set 4040in Bore 1250in Compression Height 0927in Pin - Set of 8 - RED0017X4
Wiseco Chevy SB RED Series Piston Set 4040in Bore 1250in Compression Height 0927in Pin - Set of 8 - RED0017X4
Wiseco Chevy SB RED Series Piston Set 4040in Bore 1250in Compression Height 0927in Pin - Set of 8 - RED0017X4
Wiseco Chevy SB RED Series Piston Set 4040in Bore 1250in Compression Height 0927in Pin - Set of 8 - RED0017X4
Wiseco Chevy SB RED Series Piston Set 4040in Bore 1250in Compression Height 0927in Pin - Set of 8 - RED0017X4
Wiseco Chevy SB RED Series Piston Set 4040in Bore 1250in Compression Height 0927in Pin - Set of 8 - RED0017X4
Wiseco Chevy SB RED Series Piston Set 4040in Bore 1250in Compression Height 0927in Pin - Set of 8 - RED0017X4
Wiseco Chevy SB RED Series Piston Set 4040in Bore 1250in Compression Height 0927in Pin - Set of 8 - RED0017X4

Wiseco Part # WISRED0017X4

Wiseco Chevy SB RED Series Piston Set 4040in Bore 1250in Compression Height 0927in Pin - Set of 8 - RED0017X4

$1,259.99 CAD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Canadian since 2005 Questions? Email sales@raptorracing.com

Appropriately dubbed the RED series, these forged pistons utilize Race Engineered Design to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

Features

  • Wiseco Chevrolet Small Block Piston Set , 4.040 in. Bore, 1.250 in. Compression Height, 0.927 in. Pin Diameter, RED Series, Set of 8.
  • Chevrolet -5.7cc Flat Top 1.250 X 4.040
  • Piston Set, Chevrolet, Small Block, 4.040 in. Bore, RED Series, Set of 8

Manufacturer's Limited 30 Day Warranty

  • Product Series: RED Series
  • Bore Diameter: 4.040 IN
  • Stroke: 3.480 IN
  • Rod Length: 6.000 IN
  • Compression Height: 1.250 IN
  • Piston Volume: -5.70 CC
  • Piston Material: 2618
  • Skirt Coating: Yes
  • Forging Type: Strutted
  • Piston Quantity: 8
  • Ring Set Included: Yes
  • Top Compression Ring Thickness: 1.00 MM
  • Second Compression Ring Thickness: 1.20 MM
  • Oil Ring Thickness: 2.80 MM
  • Wrist Pin Included: Yes
  • Wrist Pin Material: 5115
  • Wrist Pin Style: Floating
  • Wrist Pin Outer Diameter: 0.927 IN
  • Product Type: Engine Piston Set
  • Engine: Small Block
  • Make: Chevrolet
