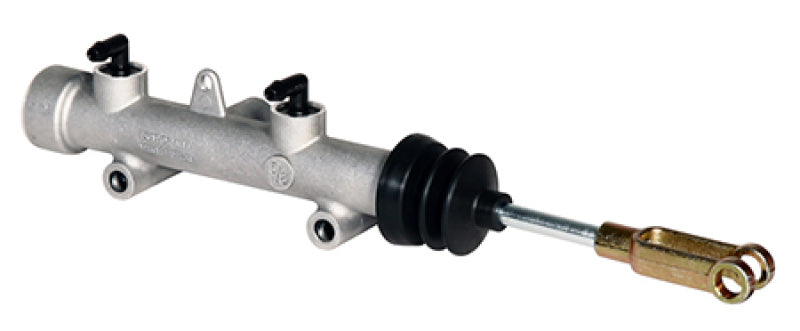

The TM1 master cylinder is manufactured from lightweight aluminum with a 5/8” bore and dual 10mm x 1.00 outlets. Side mounting on 3.53” bolt spacing using 5/16” bolts, it’s compact design is perfect for applications where space is limited. Includes push rod, dust boot and a permanent mount .39” diameter clevis. An alternative 5/16-24” threaded pushrod is available under part # 230-7134. Remote reservoir kits are available under part # 260-11098.
Specifications
- Bore Size: 5/8"
- Area (in²): 0.310
- Stroke: 1.31
- Volume (cu in): 0.4
- Type: Tandem Outlet
- Outlets: 2
- Material: Aluminum / Plastic
- Finish: Bare
- Res Type: Remote
- Res Size (oz): Res Size(cu in)
- Rebuild Kit: Product Data Sheet
- Overall Length(in): 11.53"
- Inlet Fit (in): 1/4" Hose
- Outlet Size 1 (in): 10MM X 1.00
- Outlet Size 2 (in): 10MM X 1.00
