Wilwood Part # WIL120-13816-BK

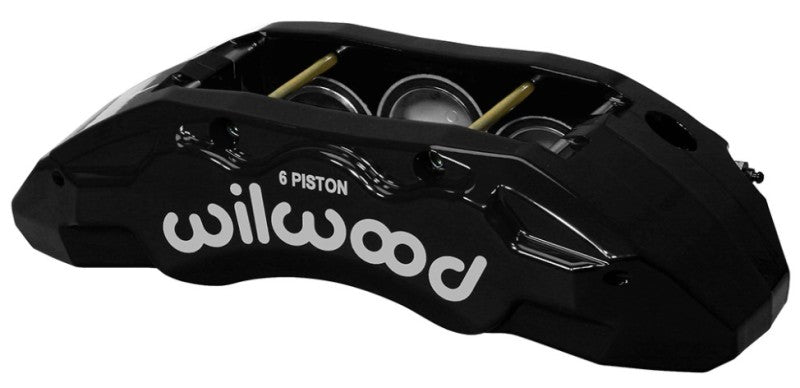

Wilwood Caliper-TX6R- L/H - Black 2.00/1.88/1.88in Pistons 1.38in Disc - 120-13816-BK

$1,066.12 CAD $1,151.41 CAD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Canadian since 2005 Questions? Email sales@raptorracing.com

The Tactical Xtreme TX6R radial mount six-piston calipers are engineered and purpose built for severe duty service on heavy duty Trucks, SUV's, and Class 1, 2, and 3 Armored Vehicles up to 14,000 lbs. GVWR. The combination of the forged aluminum body, stainless steel pistons, large pad volume, and the ability to accommodate brake rotors up to 1.50" thick, make the TX6R the ultimate choice for high strength, lightweight, and tactical level braking capacity for all types of highway and off-road extreme duty service applications. TX6R calipers have a hard anodized finish on base models with options for gloss black or red powder coat.

  • Piston Count: 6
  • Piston Area (in²): 8.70
  • Piston Type: Stainless
  • Dust Boot: Yes
  • Rotor Width (in): 1.38
  • Rotor Diameter(in): 16.00
  • Pad Area (in²): 12.69
  • Pad Volume (in³): 6.81
  • Material: Forged Aluminium
  • Weight(Lbs): 13.6
  • Color: Black
  • Finish: Black Powder Coat
  • Mount Center(in): 9.63
  • Mount Side: Left Hand
  • Mount Type: Radial
  • Maximum Rotor Width (in): 1.38
  • Minimum Rotor Width (in): 1.30
  • Maximum Rotor Diameter(in): 16.00
  • Minimum Rotor Diameter(in): 14.25
  • Brake Pad Type 1: 10120
  • Total Pad Area (in²): 12.69
  • Total Pad Volume (in³): 6.81
  • Piston 1 Bore (in): 2.00
  • Piston 2 Bore (in): 1.88
  • Piston 3 Bore (in): 1.88
  • Total Piston Area (in²): 8.70
  • Mount Height(in): 3.07
  • Inlet Thread Size: 1/8-27 NPT
  • O-Ring Kit: 130-14279
  • Replacement Piston 1: 200-13808
  • Replacement Piston 2: 200-7521
  • Replacement Piston 3: 200-7521
  • Cross-Over O-Ring Kit: 130-10540
  • Wear Plate L/H: 300-5922
  • Wear Plate R/H: 300-5923
  • Pad Retainer: 180-9874
  • Bleed Screw Kit: 220-0627
