Wilwood Caliper-Narrow Superlite 6R-LH - Black 1.62/1.12/1.12in Pistons 1.25in Disc - 120-11779-BK by Wilwood
Sale

Wilwood Part # WIL120-11779-BK

Wilwood Caliper-Narrow Superlite 6R-LH - Black 1.62/1.12/1.12in Pistons 1.25in Disc - 120-11779-BK

$598.99 CAD $646.92 CAD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Canadian since 2005 Questions? Email sales@raptorracing.com

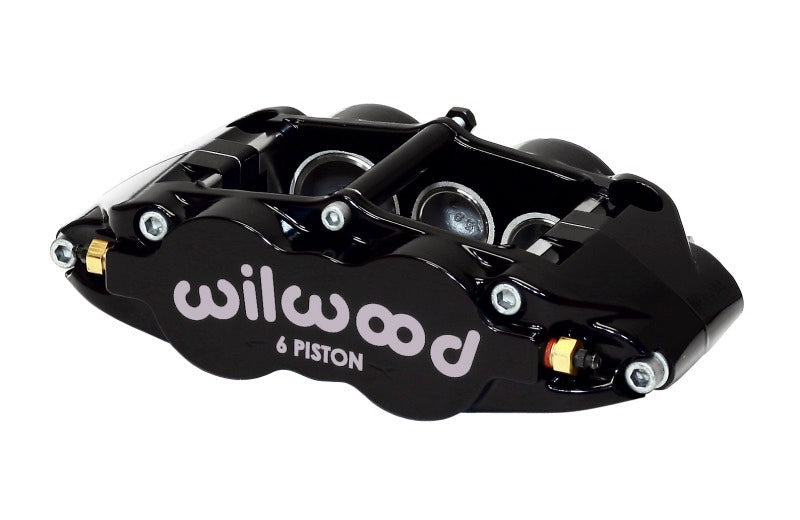

The Forged Narrow Superlite 6R (FNSL6R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

  • Piston Count: 6
  • Piston Area (in²): 4.04
  • Piston Type: Stainless
  • Dust Boot: No
  • Rotor Width (in): 1.25
  • Rotor Diameter(in): 14.00
  • Pad Area (in²): 8.2
  • Pad Volume (in³): 3.8
  • Material: Forged Aluminium
  • Weight(Lbs): 5.0
  • Color: Black
  • Finish: Black Powder Coat
  • Mount Center(in): 5.98
  • Mount Side: Left Hand
  • Mount Type: Radial
  • Maximum Rotor Width (in): 1.25
  • Minimum Rotor Width (in): 1.19
  • Maximum Rotor Diameter(in): 14.00
  • Minimum Rotor Diameter(in): 11.75
  • Brake Pad Type 1: 7416
  • Total Pad Area (in²): 8.2
  • Total Pad Volume (in³): 3.8
  • Piston 1 Bore (in): 1.62
  • Piston 2 Bore (in): 1.12
  • Piston 3 Bore (in): 1.12
  • Total Piston Area (in²): 4.04
  • Mount Hole Size(in): 0.39
  • Mount Height(in): 1.45
  • Inlet Thread Size: 1/8-27 NPT
  • O-Ring Kit: 130-5972
  • Replacement Piston 1: 200-7520
  • Replacement Piston 2: 200-8439
  • Replacement Piston 3: 200-8439
  • Cross-Over O-Ring Kit: 130-10540
  • Wear Plate L/H: 300-6596
  • Wear Plate R/H: 300-6595
  • Bleed Screw Kit: 220-0627
