Wilwood Part # WIL120-14091-RD

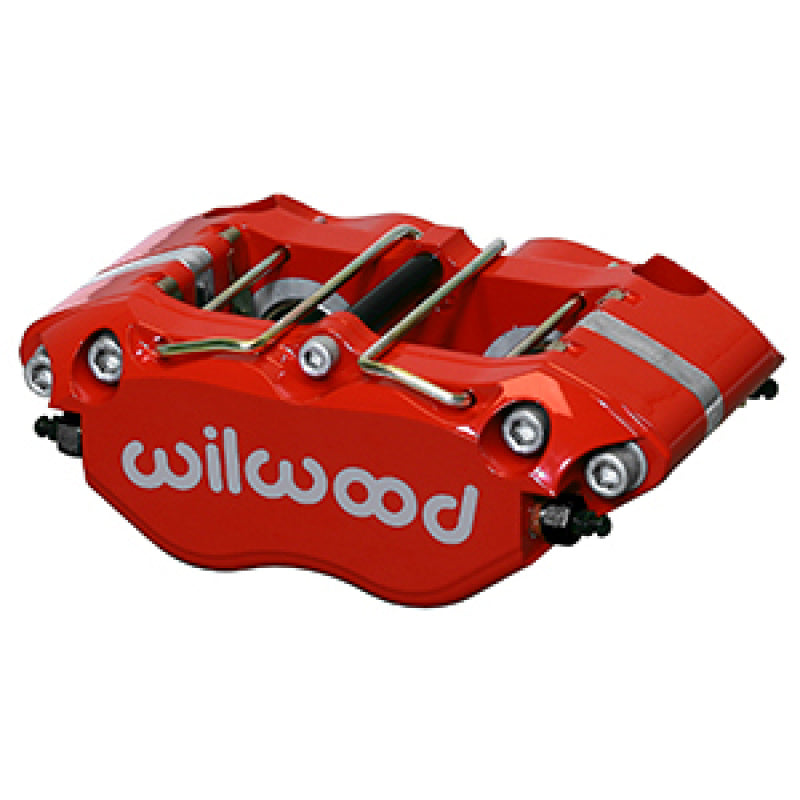

Wilwood Caliper - Narrow Dynapro 4.75in Mount 1.12/1.12in Pistons .81in Disc - Red - 120-14091-RD

$548.24 CAD $592.10 CAD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Canadian since 2005 Questions? Email sales@raptorracing.com

Wilwood Narrow Dynapro four piston radial mount calipers combine the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. With an overall weight as light as 3.58 pounds, the Dynapro has become a favored choice for a broad range of sports, rally, and off-road driving applications. Narrow Dynapro four piston radial mount calipers combine pure race technology with a new generation of Wilwood performance enhancements.

  • Piston Count: 4
  • Piston Area (in²): 1.98
  • Piston Type: Stainless
  • Dust Boot: No
  • Rotor Width (in): 0.81
  • Rotor Diameter(in): 12.88
  • Pad Area (in²): 6.36
  • Pad Volume (in³): 2.1
  • Material: Billet Aluminium
  • Weight(Lbs): 4.0
  • Color: Red
  • Finish: Red Powder Coat
  • Mount Center(in): 4.75
  • Mount Side: Universal
  • Mount Type: Radial
  • Maximum Rotor Width (in): 0.86
  • Minimum Rotor Width (in): 0.75
  • Maximum Rotor Diameter(in): 12.88
  • Minimum Rotor Diameter(in): 11.75
  • Brake Pad Type 1: 7812
  • Total Pad Area (in²): 6.36
  • Total Pad Volume (in³): 2.1
  • Piston 1 Bore (in): 1.12
  • Piston 2 Bore (in): 1.12
  • Total Piston Area (in²): 1.98
  • Mount Hole Size(in): 0.39
  • Mount Height(in): 1.61
  • Inlet Thread Size: 1/8-27 NPT
  • O-Ring Kit: 130-2579
  • Replacement Piston 1: 200-8439
  • Replacement Piston 2: 200-8439
  • Cross-Over O-Ring Kit: 130-10540
  • Bridge Bolt Kit: 230-10118
  • Wear Plate L/H: 300-5876
  • Wear Plate R/H: 300-5876
  • Pad Retainer: 300-9636
  • Bleed Screw Kit: 220-0627
