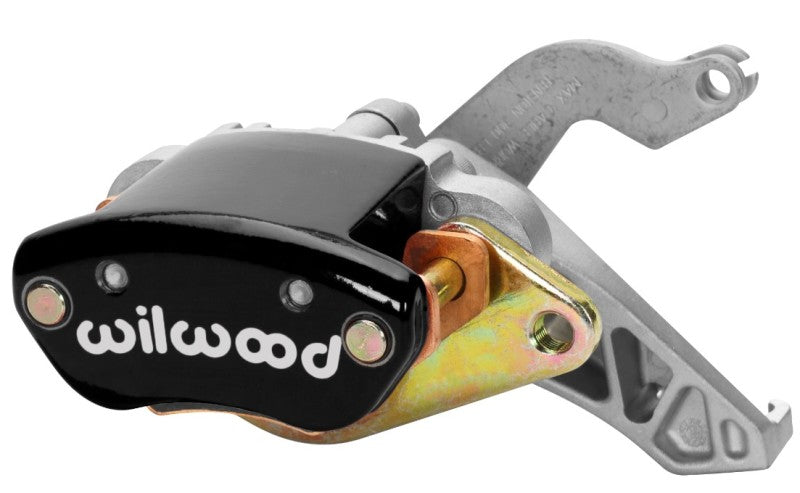

Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810" thick, with 11.00" - 12.88" diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields.
Specifications
- Piston Count: 1
- Piston Area (in²): 1.11
- Piston Type: Aluminum
- Dust Boot: Yes
- Rotor Width (in): 0.81
- Rotor Diameter(in): 14.00
- Pad Area (in²): 1.7
- Pad Volume (in³): 0.26
- Material: Cast Aluminium
- Weight(Lbs): 3.3
- Color: Black
- Finish: Black Powder Coat
- Mount Center(in): 4.75
- Mount Side: Right Hand
- Mount Type: Floating
- Maximum Rotor Width (in): 0.81
- Minimum Rotor Width (in): 0.70
- Maximum Rotor Diameter(in): 14.00
- Minimum Rotor Diameter(in): 11.00
- Brake Pad Type 1: 6407
- Total Pad Area (in²): 1.7
- Total Pad Volume (in³): 0.26
- Piston 1 Bore (in): 1.19
- Total Piston Area (in²): 1.11
- Mount Hole Size(in): 0.67
- O-Ring Kit: 130-4320
- Replacement Dust Boot: 210-6391
- Replacement Piston 1: 200-8660
