Wilwood Part # WIL120-13829

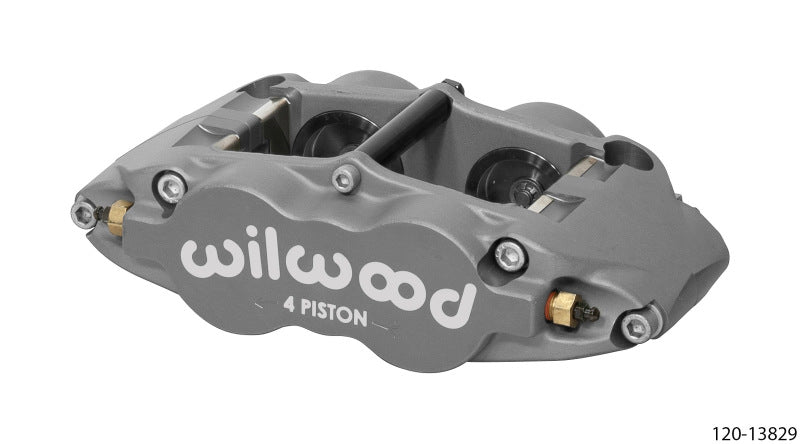

Wilwood Caliper-Forged Superlite FSL4R/ST Aluminum 1.88/1.75in Pistons .81in Disc Ano - Left - 120-13829

Earn 674 Dino Dollars on this order. How it works

Before you order

Customers also viewed

Canadian since 2005 Questions? Email sales@raptorracing.com

FSL4R/ST calipers provide the pad wear performance advantages of differential bore pistons with the option for ultimate heat protection using Thermlock® pistons in the ST models. Differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face to reduce pad taper wear in sustained high temperature applications. Thermlock® pistons in the ST models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. Featuring a wear resistant Type III hard anodize finish, these are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.

  • Piston Count: 4
  • Piston Area (in²): 5.18
  • Piston Type: Thermlock
  • Dust Boot: No
  • Rotor Width (in): 0.81
  • Rotor Diameter(in): 14.00
  • Pad Area (in²): 8.2
  • Pad Volume (in³): 4.9
  • Material: Forged Aluminium
  • Weight(Lbs): 5.5
  • Color: Anodize
  • Finish: Type III Anodize
  • Mount Center(in): 5.98
  • Mount Side: Left Hand
  • Mount Type: Radial
  • Maximum Rotor Width (in): 0.90
  • Minimum Rotor Width (in): 0.75
  • Maximum Rotor Diameter(in): 14.00
  • Minimum Rotor Diameter(in): 11.75
  • Brake Pad Type 1: 7420
  • Total Pad Area (in²): 8.2
  • Total Pad Volume (in³): 4.9
  • Piston 1 Bore (in): 1.88
  • Piston 2 Bore (in): 1.75
  • Total Piston Area (in²): 5.18
  • Mount Hole Size(in): 0.39
  • Mount Height(in): 1.63
  • Inlet Thread Size: 1/8-27 NPT
  • O-Ring Kit: 130-2427
  • Replacement Piston 1: 200-7550
  • Replacement Piston 2: 200-7551
  • Cross-Over O-Ring Kit: 130-10540
  • Bridge Bolt Kit: 230-5976
  • Wear Plate L/H: 300-5923
  • Wear Plate R/H: 300-5922
  • Bleed Screw Kit: 220-0627
