Wilwood Caliper-Forged Superlite 6R-L/H 1.62/1.12/1.12in Pistons 0.81in Disc - 120-13238 by Wilwood
Sale

Wilwood Part # WIL120-13238

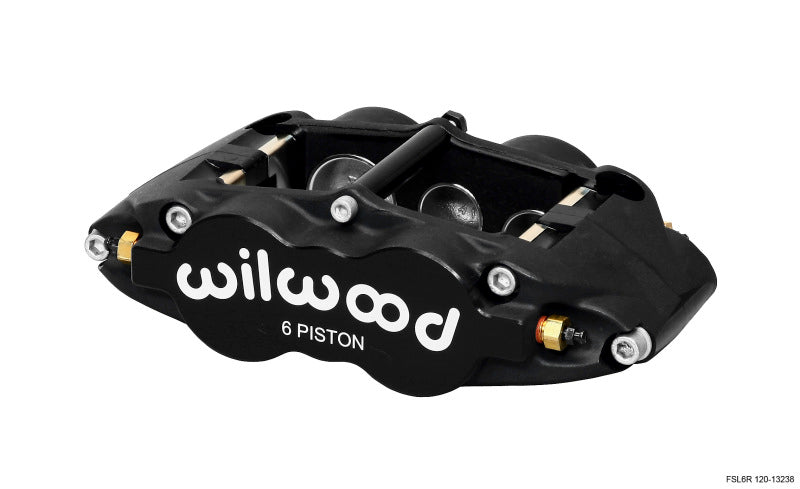

Wilwood Caliper-Forged Superlite 6R-L/H 1.62/1.12/1.12in Pistons 0.81in Disc - 120-13238

$471.08 CAD $508.77 CAD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Canadian since 2005 Questions? Email sales@raptorracing.com

The Superlite 6R caliper series is the benchmark in asphalt short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, rally and sport driving applications. The new FSL6R model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow differential bore models to have a left hand and right hand orientation, but no leading or trailing configuration is required.

  • Piston Count: 6
  • Piston Area (in²): 4.04
  • Piston Type: Stainless
  • Dust Boot: No
  • Rotor Width (in): 0.81
  • Rotor Diameter(in): 14.00
  • Pad Area (in²): 8.2
  • Pad Volume (in³): 4.9
  • Material: Forged Aluminium
  • Weight(Lbs): 5.3
  • Color: Anodize
  • Finish: Type III Anodize
  • Mount Center(in): 5.98
  • Mount Side: Left Hand
  • Mount Type: Radial
  • Maximum Rotor Width (in): 0.90
  • Minimum Rotor Width (in): 0.75
  • Maximum Rotor Diameter(in): 14.00
  • Minimum Rotor Diameter(in): 11.75
  • Brake Pad Type 1: 7420
  • Total Pad Area (in²): 8.2
  • Total Pad Volume (in³): 4.9
  • Piston 1 Bore (in): 1.62
  • Piston 2 Bore (in): 1.12
  • Piston 3 Bore (in): 1.12
  • Total Piston Area (in²): 4.04
  • Mount Hole Size(in): 0.39
  • Mount Height(in): 1.63
  • Inlet Thread Size: 1/8-27 NPT
  • O-Ring Kit: 130-5972
  • Replacement Piston 1: 200-7519
  • Replacement Piston 2: 200-7513
  • Replacement Piston 3: 200-7513
  • Cross-Over O-Ring Kit: 130-10540
  • Bridge Bolt Kit: 230-5976
  • Wear Plate L/H: 300-5923
  • Wear Plate R/H: 300-5922
  • Bleed Screw Kit: 220-0627
