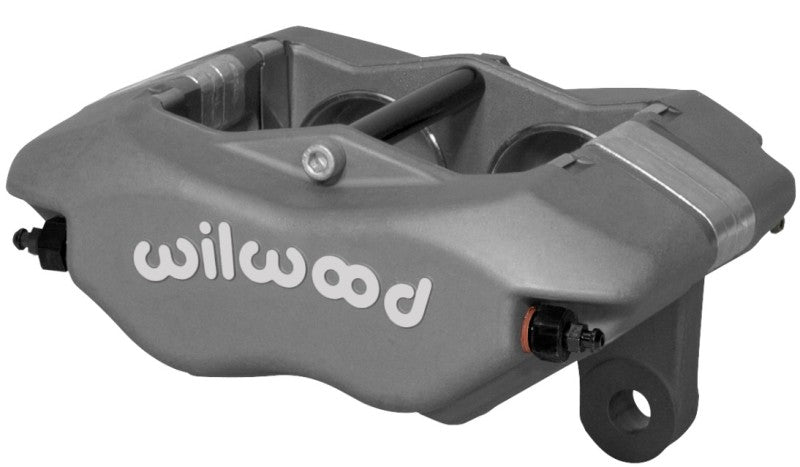

Wilwood's new Forged Narrow Mount Dynalite (FNDL) calipers are ideal for and widely used in many competition applications including late models,modifieds, sprints, off road and road racing. Computer generated design and stress analysis technology, is the latest innovation from Wilwood providing substantial improvements in strength and performance over all comparable caliper models.Forged Narrow Mount Dynalites are the strongest calipers in the class. FNDL calipers are a direct replacement for all previous Wilwood NDL's and similar competitive brands with 3.50" centered mounting tabs. A total of five bolts provide superior bridge strength and positive retention of the top loaded 7816 or 7216 type brake pads. The full range of PolyMatrix pad compounds is available to match the brake response and heat range requirements of any competition application.
Specifications
- Piston Count: 4
- Piston Area (in²): 1.98
- Piston Type: Stainless
- Dust Boot: No
- Rotor Width (in): 0.81
- Rotor Diameter(in): 12.72
- Pad Area (in²): 6.36
- Pad Volume (in³): 3
- Material: Forged Aluminium
- Weight(Lbs): 4.1
- Color: Anodize
- Finish: Type III Anodize
- Mount Center(in): 3.50
- Mount Side: Universal
- Mount Type: Lug
- Maximum Rotor Width (in): 0.81
- Minimum Rotor Width (in): 0.75
- Maximum Rotor Diameter(in): 12.72
- Minimum Rotor Diameter(in): 11.75
- Brake Pad Type 1: 7816
- Brake Pad Type 2: 7216
- Total Pad Area (in²): 6.36
- Total Pad Volume (in³): 3
- Piston 1 Bore (in): 1.12
- Piston 2 Bore (in): 1.12
- Total Piston Area (in²): 1.98
- Mount Hole Size(in): 0.45
- Mount Height(in): 2.85
- Inlet Thread Size: 1/8-27 NPT
- O-Ring Kit: 130-2579
- Replacement Piston 1: 200-7513
- Replacement Piston 2: 200-7513
- Cross-Over O-Ring Kit: 130-10540
- Bridge Bolt Kit: 230-9983
- Wear Plate L/H: 300-5876
- Wear Plate R/H: 300-5876
- Bleed Screw Kit: 220-0627
