Wilwood Caliper-Forged Dynapro 6 5.25in Mount-L/H 1.62/1.38in/1.38in Pistons .81in Disc - 120-13429-BK by Wilwood
Sale

Wilwood Part # WIL120-13429-BK

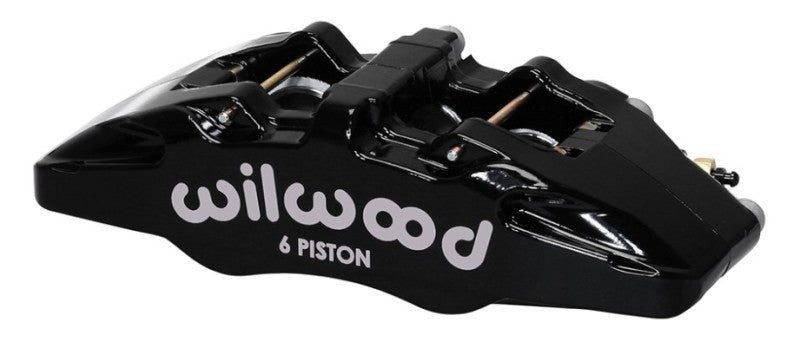

Wilwood Caliper-Forged Dynapro 6 5.25in Mount-L/H 1.62/1.38in/1.38in Pistons .81in Disc - 120-13429-BK

$507.63 CAD $548.23 CAD
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Canadian since 2005 Questions? Email sales@raptorracing.com

Wilwood's newest DynaPro DP6A Calipers combine pure-bred racing technology with contemporary design to deliver superior braking and high-tech style on a wide range of custom, show, and competition vehicles. This newest model in the DynaPro series features a reinforced triple bridge construction, with five high strength steel bridge bolts, making it the strongest and stiffest DP6 caliper ever built. Offers direct interchange with all 5.25" pattern lug mount DynaPro and Dynalite calipers. With Forged aluminum, six piston differential bore body and stainless steel pistons with high temperature seals. DP6A calipers accommodate rotors up to 13"inch diameter and widths from .38" to 1.10". DP6A calipers are available in gloss black or red powder coat, or Wilwood's Quick-Silver nickel base plating.

  • Piston Count: 6
  • Piston Area (in²): 5.06
  • Piston Type: Stainless
  • Dust Boot: No
  • Rotor Width (in): 0.81
  • Rotor Diameter(in): 13.00
  • Pad Area (in²): 7.3
  • Pad Volume (in³): 2.4
  • Material: Forged Aluminium
  • Weight(Lbs): 5.1
  • Color: Black
  • Finish: Black Powder Coat
  • Mount Center(in): 5.25
  • Mount Side: Left Hand
  • Mount Type: Lug
  • Maximum Rotor Width (in): 0.83
  • Minimum Rotor Width (in): 0.75
  • Maximum Rotor Diameter(in): 13.00
  • Minimum Rotor Diameter(in): 10.00
  • Brake Pad Type 1: 6712
  • Total Pad Area (in²): 7.3
  • Total Pad Volume (in³): 2.4
  • Piston 1 Bore (in): 1.62
  • Piston 2 Bore (in): 1.38
  • Piston 3 Bore (in): 1.38
  • Total Piston Area (in²): 5.06
  • Mount Hole Size(in): 0.39
  • Mount Height(in): 2.03
  • Inlet Thread Size: 1/8-27 NPT
  • O-Ring Kit: 130-10535
  • Replacement Piston 1: 200-7520
  • Replacement Piston 2: 200-7518
  • Replacement Piston 3: 200-7518
  • Cross-Over O-Ring Kit: 130-10540
  • Wear Plate L/H: 300-9707
  • Wear Plate R/H: 300-9707
  • Pad Retainer: 300-17719
  • Bleed Screw Kit: 220-0627
