Wilwood Part # WIL120-12949-BK

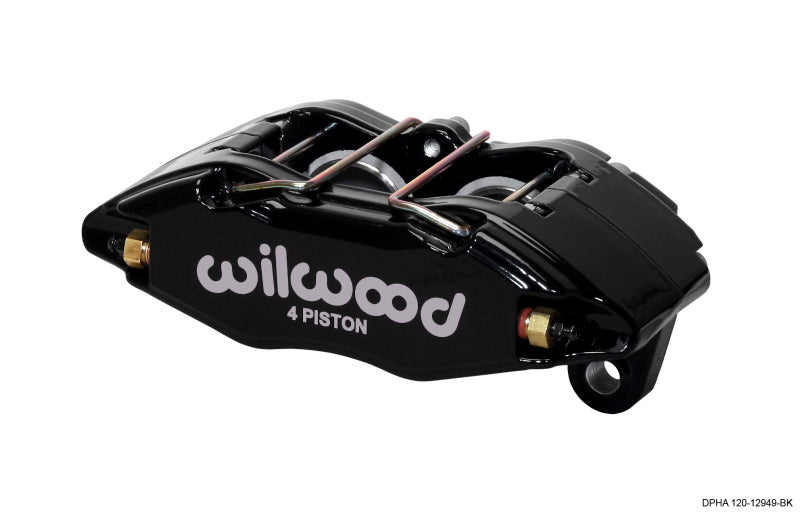

Wilwood Caliper-Dynapro Honda/Acura - Black Powder 1.62in Pistons .83in Disc - 120-12949-BK

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Canadian since 2005 Questions? Email sales@raptorracing.com

The Forged DynaPro Honda/Acura (DPHA) caliper represents the newest generation of calipers designed exclusively as a direct bolt-on for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum 15" wheels. Designed around Wilwood's proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with most OE master cylinders and will maintain ABS function. DPHA calipers are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood's signature logo.

  • Piston Count: 4
  • Piston Area (in²): 4.12
  • Piston Type: Stainless
  • Dust Boot: No
  • Rotor Width (in): 0.83
  • Rotor Diameter(in): 10.32
  • Pad Area (in²): 6.36
  • Pad Volume (in³): 2.1
  • Material: Forged Aluminium
  • Weight(Lbs): 3.9
  • Color: Black
  • Finish: Black Powder Coat
  • Mount Center(in): 5.51
  • Mount Side: Universal
  • Mount Type: Lug
  • Maximum Rotor Width (in): 0.83
  • Minimum Rotor Width (in): 0.78
  • Maximum Rotor Diameter(in): 10.32
  • Minimum Rotor Diameter(in): 10.32
  • Brake Pad Type 1: 7812
  • Total Pad Area (in²): 6.36
  • Total Pad Volume (in³): 2.1
  • Piston 1 Bore (in): 1.62
  • Piston 2 Bore (in): 1.62
  • Total Piston Area (in²): 4.12
  • Mount Hole Size(in): 0.47
  • Mount Height(in): 2.37
  • Inlet Thread Size: M10 x 1.50
  • O-Ring Kit: 130-4346
  • Replacement Piston 1: 200-7520
  • Replacement Piston 2: 200-7520
  • Cross-Over O-Ring Kit: 130-10540
  • Wear Plate L/H: 300-5875
  • Wear Plate R/H: 300-5875
  • Pad Retainer: 300-9635
  • Bleed Screw Kit: 220-0627
