Wilwood Part # WIL120-13383-BK

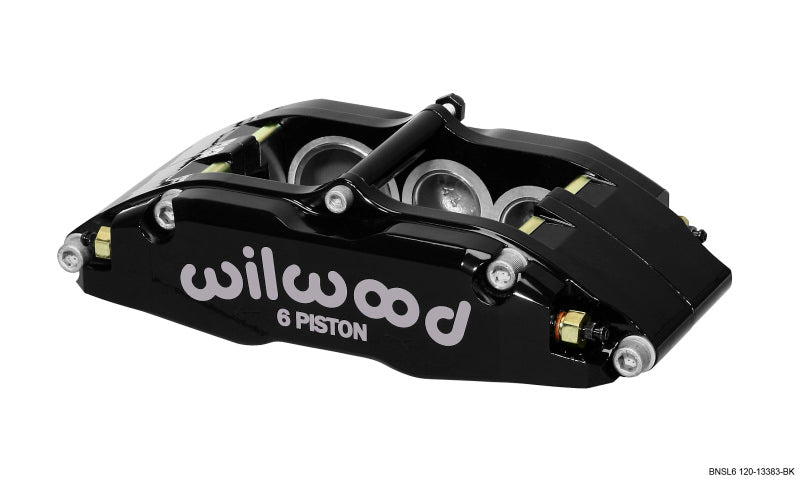

Wilwood Caliper-BNSL6-LH-Black 1.62/1.12/1.12in Pistons 1.10in Disc - 120-13383-BK

$649.77 CAD $701.76 CAD
Earn 649 Dino Dollars on this order. How it works

Before you order

Customers also viewed

Canadian since 2005 Questions? Email sales@raptorracing.com

The 2nd generation of the Narrow SL6 series has been redesigned with Wilwood’s latest technology. High strength Billet bodies with internal crossover passages allow the calipers to mount in either front or rear of spindle applications with same part number. With Same 3.50" centered lug mounting of original Narrow Superlite caliper. Each caliper is precision CNC machined from high strength Billet Forging with a re-profiled outer body that enhances wheel clearance and appearance. Calipers are available in Black, Red powder coat and a show quality polished finish to compliment any application.

  • Piston Count: 6
  • Piston Area (in²): 4.04
  • Piston Type: Stainless
  • Dust Boot: No
  • Rotor Width (in): 1.10
  • Rotor Diameter(in): 14.00
  • Pad Area (in²): 8.2
  • Pad Volume (in³): 3.8
  • Material: Billet Aluminium
  • Weight(Lbs): 5.2
  • Color: Black
  • Finish: Black Powder Coat
  • Mount Center(in): 3.50
  • Mount Side: Left Hand
  • Mount Type: Lug
  • Maximum Rotor Width (in): 1.10
  • Minimum Rotor Width (in): 1.00
  • Maximum Rotor Diameter(in): 14.00
  • Minimum Rotor Diameter(in): 11.75
  • Brake Pad Type 1: 7416
  • Total Pad Area (in²): 8.2
  • Total Pad Volume (in³): 3.8
  • Piston 1 Bore (in): 1.62
  • Piston 2 Bore (in): 1.12
  • Piston 3 Bore (in): 1.12
  • Total Piston Area (in²): 4.04
  • Mount Hole Size(in): 0.45
  • Mount Height(in): 2.85
  • Inlet Thread Size: 1/8-27 NPT
  • O-Ring Kit: 130-5972
  • Replacement Piston 1: 200-7520
  • Replacement Piston 2: 200-8439
  • Replacement Piston 3: 200-8439
  • Bridge Bolt Kit: 230-7710
  • Wear Plate L/H: 300-6596
  • Wear Plate R/H: 300-6595
  • Bleed Screw Kit: 220-0627
