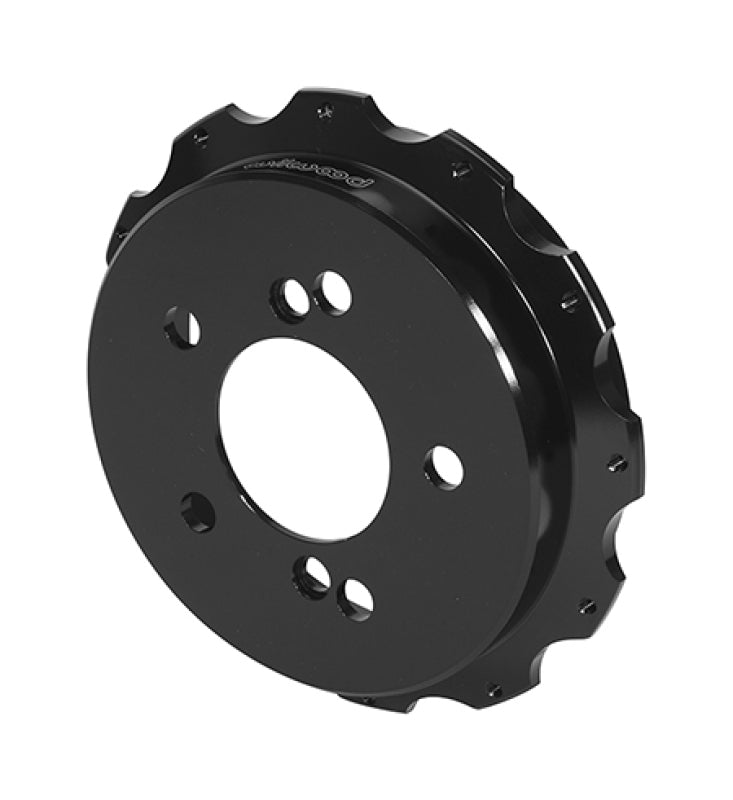

These premium grade aluminum hats are used with Wilwood's internal shoe parking brake kits. Each hat is a precision machined, threaded hole design for use in conjunction with through-hole mount rotors. After machining, the hats are electro-coated for corrosion resistance.
Specifications
- Mount Hole Type: Threaded
- Material: Aluminum
- Mount Style: Fixed Mount
- Finish: Black E-Coat
- Weight (lbs): 0.000
- Hat Bolt Circle 1: 5 X 4.72
- Application Note: BMW E46
- Hat Bolt Kit Part #: 230-8008
- Rotor Mount Hole Size (in): 1/4-20
- Shoe I.D. (in): 7.28
- Clearance I.D. (in): 6.90
- Face Thickness (in): 0.28
- Hat Stud Diamenter - BC 1 (in): 0.610
- Rotor Diameter Range: 15.00
- Rotor Width Range: 1.25
