Wilwood Part # WIL170-14209

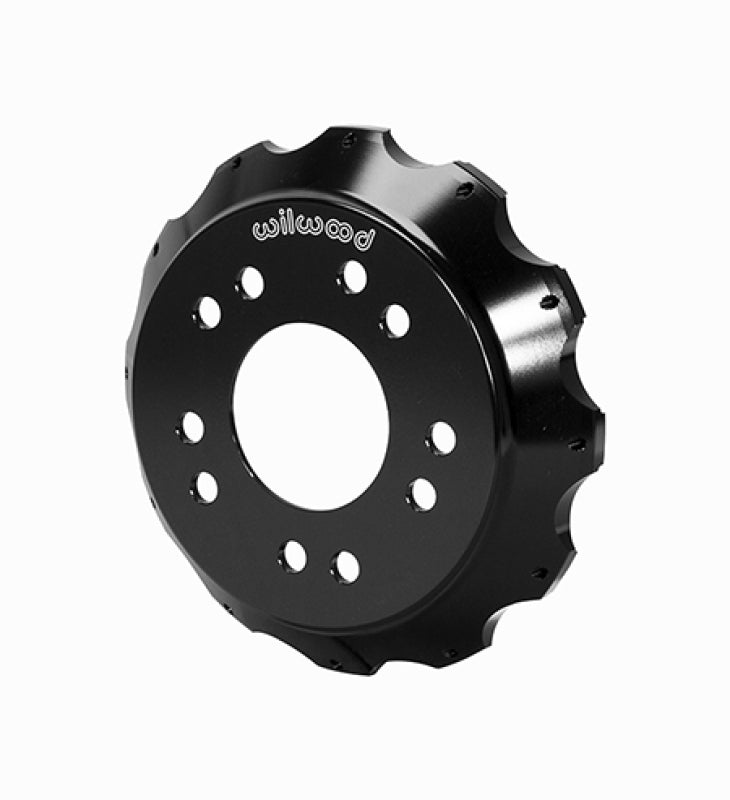

Wilwood 12x8.75 BC 5x4.75/5.00 MT 1.38in Offset 3.06in Center Reg. Big Brake Hat - Flared Bell - 170-14209

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Canadian since 2005 Questions? Email sales@raptorracing.com

GT Series Big Brake Flared Bell hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions.Flared Bell Hats are generally used with rotor mount bolt circles of 8.38" and larger. Offsets range from 1.88" to 3.00" for rotor diameters 12.19" and up.

  • Mount Hole Type: Threaded
  • Material: Aluminum
  • Mount Style: Fixed Mount
  • Finish: Black E-Coat
  • Weight (lbs): 2.050
  • Hat Bolt Circle 1: 5 x 4.75
  • Hat Bolt Circle 2: 5 x 5.00
  • Application Note: Prospindle C-10
  • Hat Bolt Kit Part #: 230-8008
  • Rotor Mount Hole Size (in): 1/4-28
  • Clearance I.D. (in): 6.58
  • Face Thickness (in): 0.25
  • Hat Stud Diamenter - BC 1 (in): 0.520
  • Hat Stud Diamenter - BC 2 (in): 0.520
  • Rotor Diameter Range: 15.00
  • Rotor Width Range: 1.25
