Whipple '19-23 Ford Ranger 2.3 L Stage 1 Kit (50-State Legal)

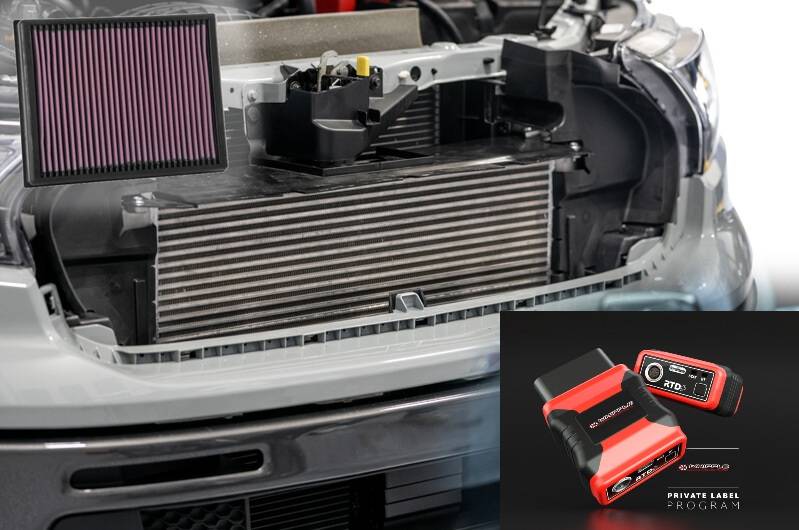

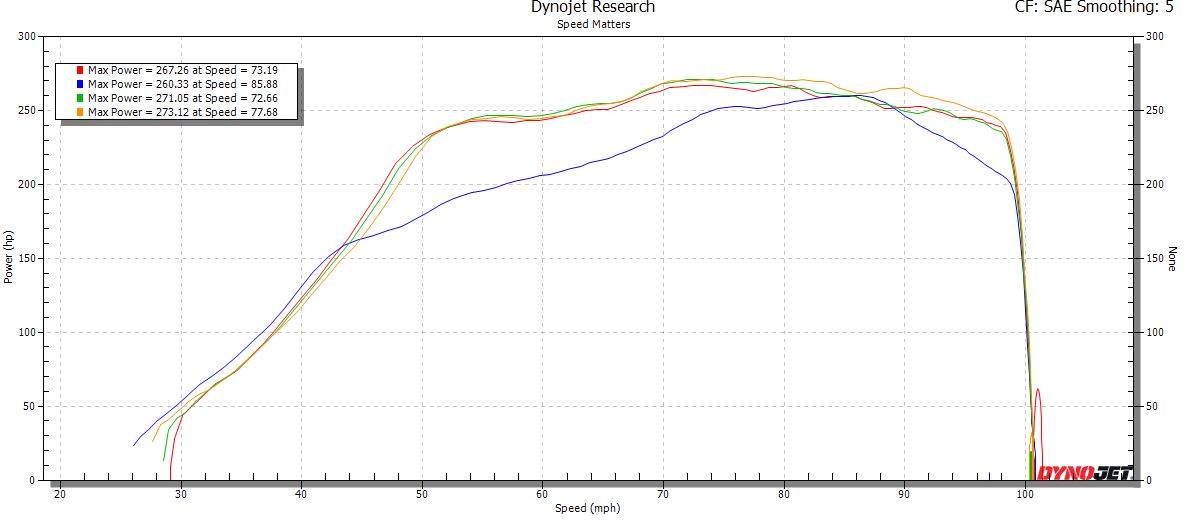

Whipple, known for its industry leading upgrade systems and technological innovations, has now brought the same technology to the 2019-2023 2.3L Ranger with the 50-state legal Whipple Stage 1 kit. The Stage 1 kit features the massive Mega Cooler, high flow replacement filter and an all new calibration that offers more power and an updated shift strategy to further improve the driving experience. Enjoy power gains of up to 50* horsepower under the curve and up to 40* horsepower at peak rpm along with and an astounding 90* foot pounds over stock at 3000rpm!

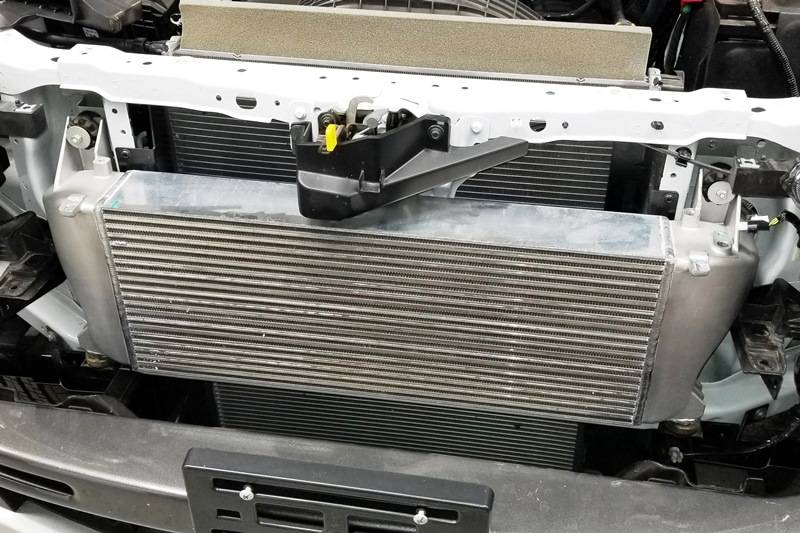

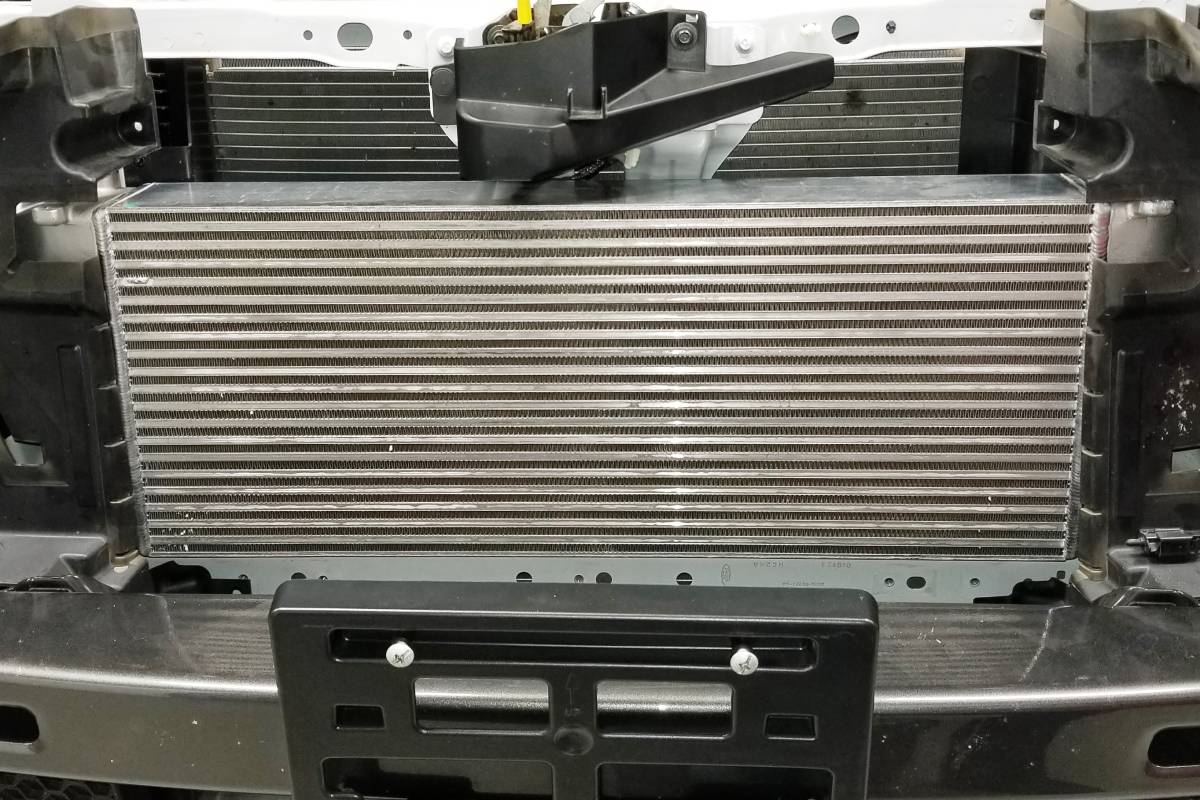

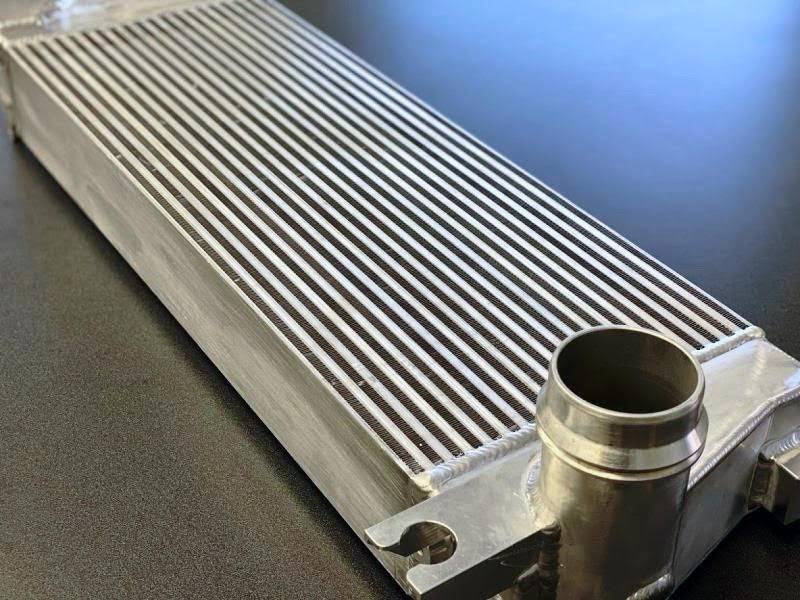

The Whipple Mega Cooler offers an insane 43% increase in volume over the stock intercooler core. The bar-and-plate type intercooler features offset fin on both the cold and hot side, allowing for increased cooling capacity while fitting into the stock packaging. This design significantly out performing the stock tube and fin type cooler. The Mega Cooler features CFD designed cast aluminum tanks to help promote high flow vs other sheet metal type tanks or stock plastic tanks, ensuring incredible cooling and low pressure drop through the core.

Test show a 50 degree (F) drop in temperature just on the dyno, yet even bigger gains are shown during real world applications. The colder air allows increased spark advance and more O2 to the engine, resulting in more consistent power and quicker recovery while maintaining safety from engine robbing detonation. If you want consistent, peak power from your 2.3L, you need the Whipple Mega Cooler!

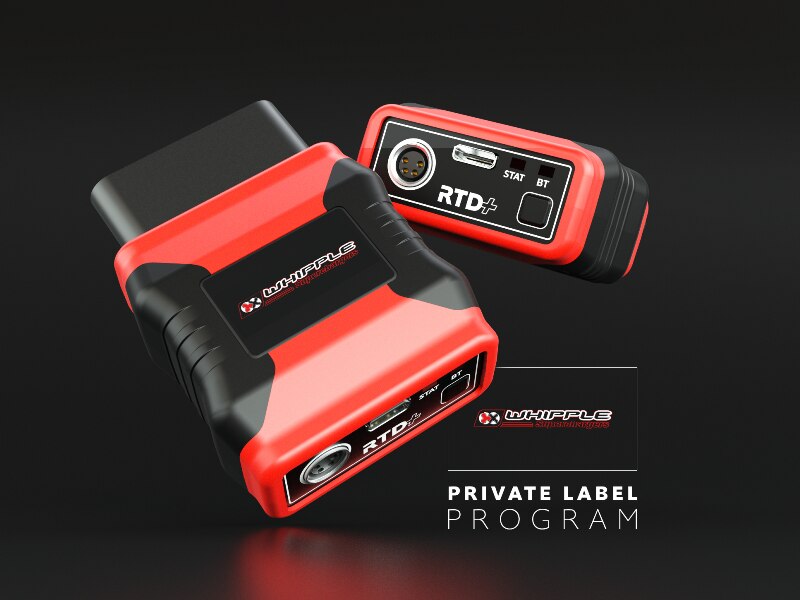

Whipple and it's Ford calibration team worked feverishly using advanced tools to develop a calibration that could maximize power based on 91 octane or higher fuel, while maintaining safety for everyday driving conditions. Whether your cruising, towing or just like a spirted drive, the Whipple tune is designed for all applications. Each drive mode is maintained, leaving you all the potential options your Ranger was equipped with. The Whipple flash tool allows easy uploading and downloading of the Whipple files while also offering the ability to read/erase trouble codes, live data viewing and advanced data logging capacity.

Exclusive Features:

• Massive oversized intercooler
  • Dyno proven gains
  • 43% greater volume than stock intercooler
  • Over 50deg F drop in temperature on the dyno
  • Over 80deg F drop in temperature during torture testing steady state
  • Cast high flow end tanks
  • Bulletproof bar-and-plate construction
  • Offset fin on both cold and hot side

• Increased boost for more power
• Updated shift schedule
• Increased RPM shift points
• Updated pedal mapping
• Auto start/stop turned off
• Increased speed limit

2019-2023 50 STATE LEGAL EO-D231-95

Installation Time: 3.5 hours
