VMP 8-Rib Upgrade Kit for Odin '18-'20 F-150 Supercharged with AC - 10% OD - VMP-SUP022

Odin 8-Rib "Upgrade Kit" for '18-20 F150 with AC 10% OD balancer

F-150 specific kit to accommodate the different AC compressor clutch pulley on '18+ F150 5.0 L engines.

Ships Mid-October 2023.

Upgrade kits are for customers that already have the VMP no-grind style FEAD system that came with there Odin or Loki supercharger kit. This kit provides additionally pulleys and an upgraded tensioner to accommodate 8-rib style belts along with a new SFI approved ATI balancer designed specifically for VMP.

Afraid of belt slip? Convert your 6-Rib Odin/Loki kit to an 8-Rib belt drive system! With more ribs on your drive system, there is more surface area to help make belt slip a thing of the past. Not only are you adding more ribs, but this kit will also come with the VMP Heavy Duty Tensioner for more belt tension as well.

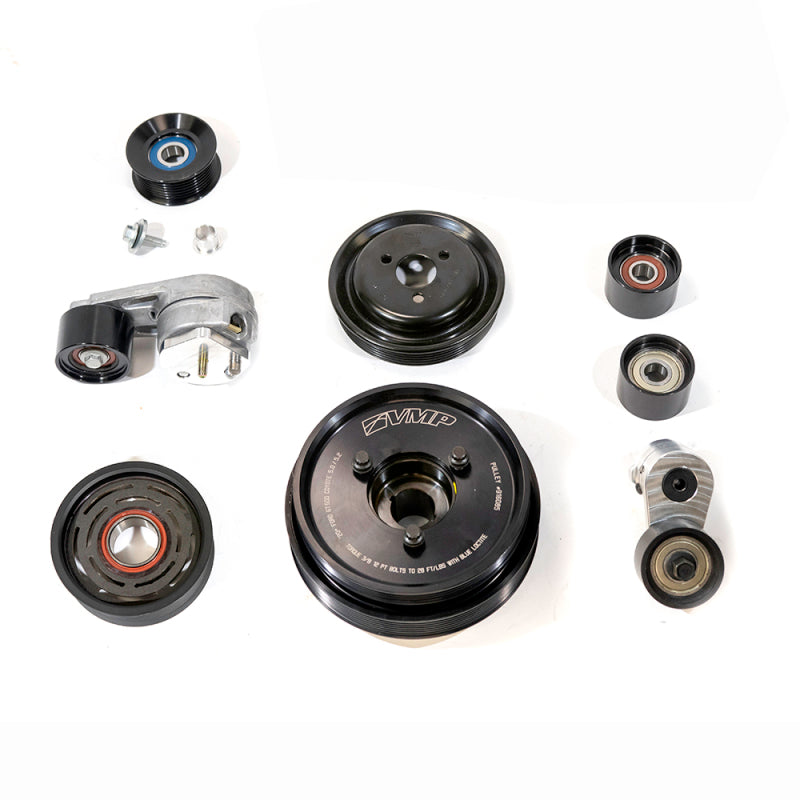

Includes:

• Odin/G3R HD Tensioner: VMP-SUT009
• Super Low Profile Accessory Belt Tensioner: VMP-SUT005
• ATI/VMP 10% OD balancer (new version VMP-918075)
• 8-rib AC Clutch Pulley specific to 18+ F-150: VMP-AC-F18-8
• 3-bolt Water Pump Pulley with back lip removed: VMP-SUP076
• Ribbed idler & spacer for front cover: VMP-76-8-20-RB & VMP-FSPC-20-8-10RB
• VMP 60 mm double row idler pulley: VMP-60-SM-DB (2)
• Pulley bolts: VMP-SUA017 (hub spacer no longer used)

All necessary hardware

**This kit does NOT include an 8-Rib Supercharger Pulley.

VMP now makes 8-rib superchargers pulleys specific to the Odin/Predator platform, they do not use a hub spacer like the 6-rib pulley. These pulleys have a -F at the end for "front-feed" style supercharger.

Currently available sizes / Boost psi with 10% lower

Griptec:
VMP-24-8-F-GR / 24 psi
VMP-25-8-F-GR / 23 psi
VMP-26-8-F-GR / 22 psi
VMP-27-8-F-GR / 21 psi
VMP-28-8-F-GR / 20 psi
VMP-29-8-F-GR / 19 psi
VMP-30-8-F-GR / 18 psi

Standard:
VMP-26-8-F / 21-22 psi
VMP-27-8-F / 20-21 psi
VMP-28-8-F / 19-20 psi
VMP-29-8-F / 18-19 psi
VMP-30-8-F / 17-18 psi
VMP-31-8-F / 16-17 psi
VMP-32-8-F / 15-16 psi
VMP-33-8-F / 14-15 psi
VMP-34-8-F / 13-14 psi
VMP-36-8-F / 11-12 psi

*Stage 3 ported blowers will make 2psi over standard Stage 2.  Stage 3 porting is required to make over 24psi.

*Supercharger belt not included

*All parts may be purchased individually using the above PNs
