VMP Gen 6 3.0 L Supercharger Stage 3 Kit '15-20 GT350

VMP Gen 6 3.0 L Supercharger Stage 3 Kit ‘15-'20 Mustang GT350 5.2 L

Introducing VMP’s newest entry into the supercharger market for the ‘15-'20 Mustang GT350 5.2 L, the VMP Gen 6 3.0 L Supercharger kit! This kit will transform your Voodoo-powered Mustang into an absolute monster with a gain of over 350 rwhp above the stock power output. The kit comes complete with everythingneeded to finish the installation and run the car, backed by the experience and support of VMP.

Features

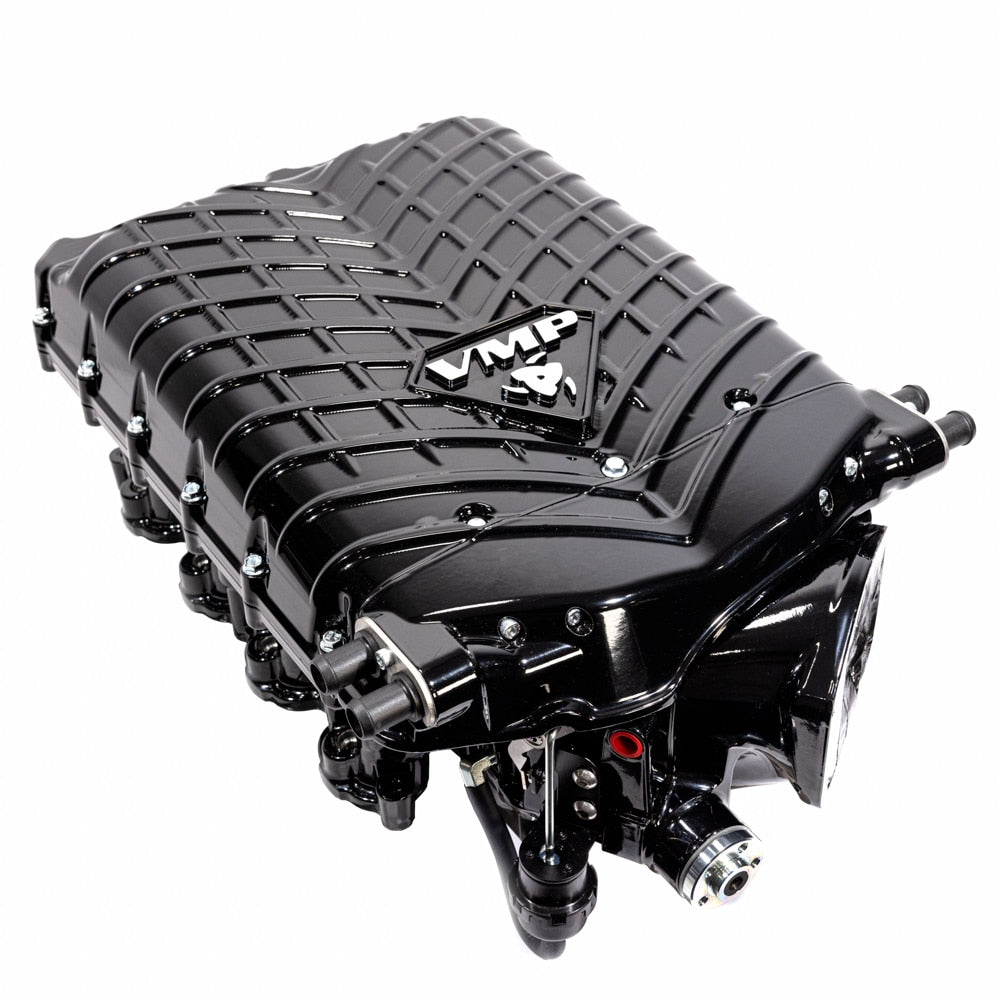

• VMP Gen 6 3.0 L Twin-Screw Supercharger
  • Front-inlet, blow-up style supercharger
  • Dual-core and dual-pass intercooler
  • Large round throttle body inlet

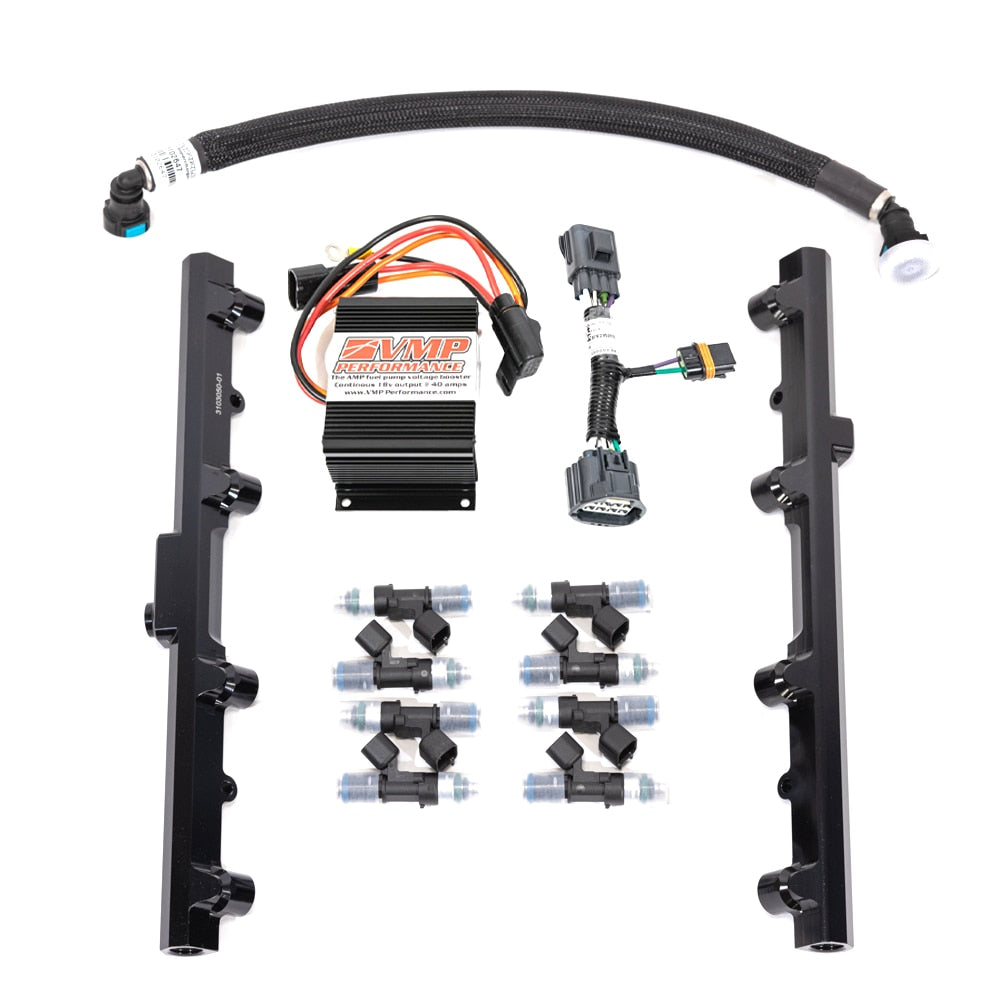

• Fuel System Components
  • Billet rails, billet fittings, and braided crossover line
  • 56 lb injectors
• Intake Components

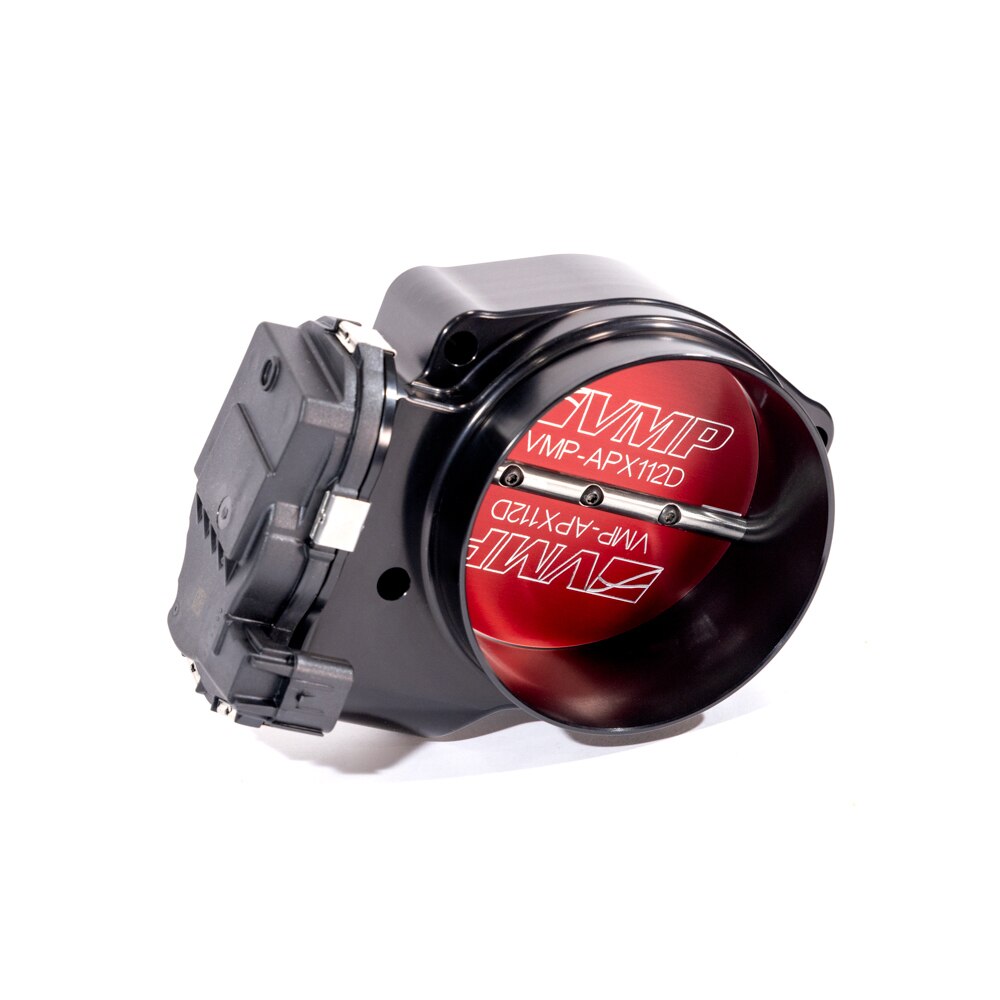

  • VMP 112 mm round throttle body
  • VMP Gen 6 Cold Air Intake with washable high-flow air filter

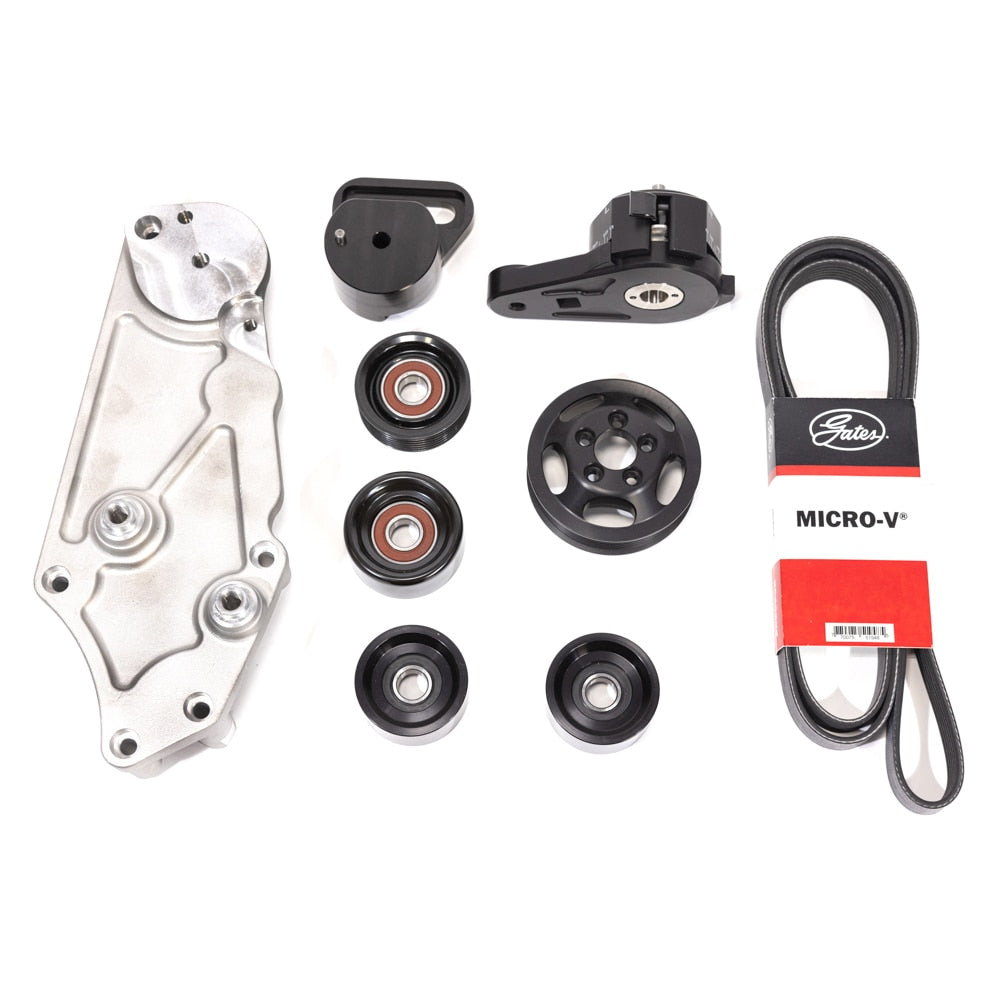

• Belt Drive Components
  • 3.875” pulley for 91 to 93 octane fuel
  • Billet belt tensioner
  • Billet idlers
  • Adjustable idler for precise tension adjustment
  • Belt included

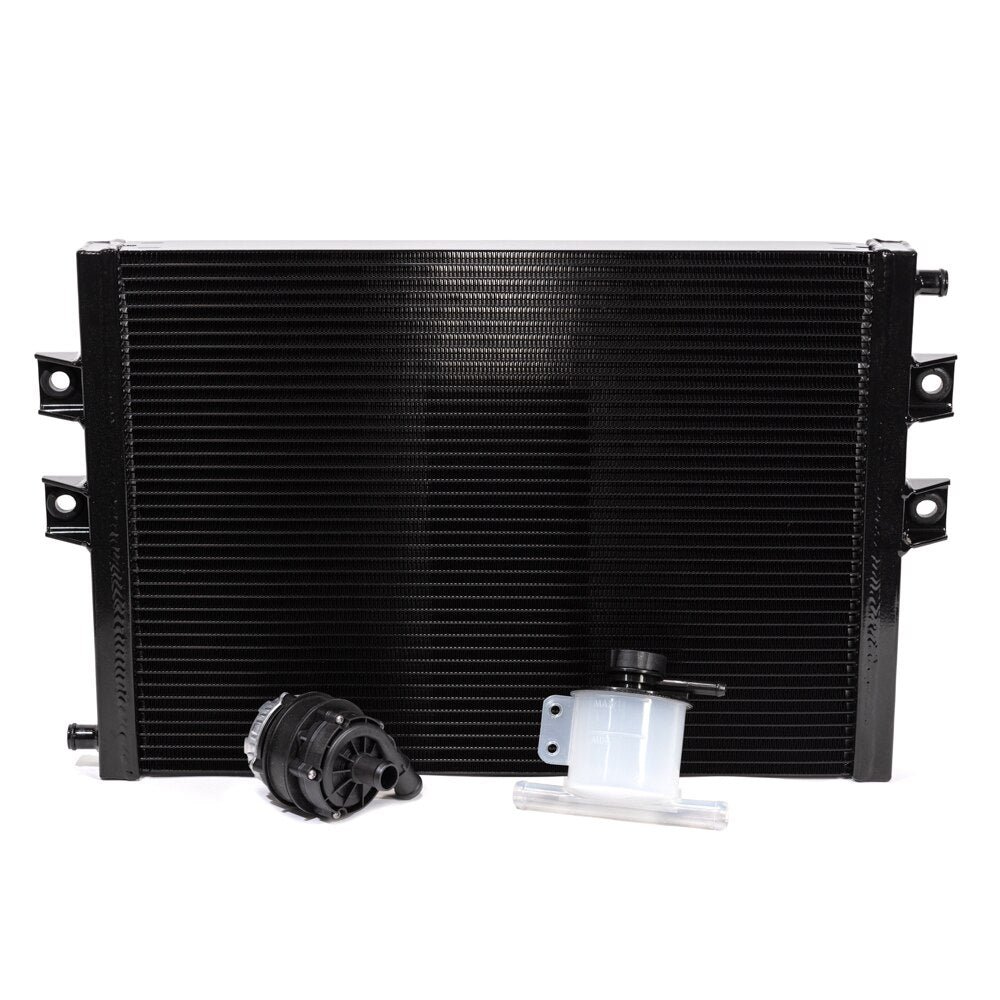

• Cooling System
  • Dual-pass full-face heat exchanger
  • High-flow intercooler pump
  • Intercooler pump wiring harness
  • Degas bottle
  • Hoses, clamps, and associated connectors
• VMP Custom Tune
  • VMP tune file included
  • Data logging support
  • Spark plugs qty 8 included
  • OEM style drivability
  • HPT Device Included

*Includes drop motor mount brackets
*Does not include fuel pump booster due to factory twin pumps in the GT350

VMP Supercharger Kit Tuning Support

FAQ

What modifications / vehicles are supported in the supercharger kit's included tuning?

• The included tuning does support minor modifications such as:
  • Longtube headers
  • Thermostats
  • Aftermarket transmissions (+ $100)
  • Tire Size & Rear End Gear Ratio
• The included tuning does NOTsupport parts that are changed out from the kit, parts that are modified from it's intended to be used in the kit, or other major modifications such as:
  • Aftermarket camshafts or changes in VCT functionality - See VMP Level 3 Custom Tuning
  • Aftermarket fuel systems - See VMP Level 3 Custom Tuning
  • Custom or modified cold air intakes - See VMP Level 3 Custom Tuning
  • Engine swaps or aftermarket ECUs / control packs - See VMP Level X Custom Tuning
• The included tuning does NOTsupport vehicles that the kit is not intended for such as GT350s.

How and when will I receive my tune file?

• 3 -5 business days after the VMP Tune Order Formhas been submitted, andall necessary information(Requested photos, stock files, strategy reads, etc) has been received by VMP.
• When purchasing an SCT device along with a supercharger kit, your tune file will be loaded to your device before shipment once the VMP Tune Order Formis submitted and all necessary information has been received by VMP.
  • HP Tuner's device users and customers that already have an SCT device will receive their tune file via Email or via the HP Tuner's TDN phone application.

Does the included tuning allow for datalogging and tune revisions?

• Yes, VMP will review datalogs and provide tuning revisions to dial in the vehicle. This tuning support is available for 6 months after the file is sent, and is limited to a number of datalogs / revisions at VMP's descretion.

Is there a time period that I have to redeem the supercharger kit's included tuning?

• Yes, the included tuning must be redeemed within 6 months of purchase. We recommend filling out the VMP Tune Order Formbefore the installation is started so that you will have your file on hand once completed. We also recommend redeeming the supercharger kit's tuning even if you don't plan to use it, so you will have a back up tune file that you know will run and drive in the event you cannot receive proper tuning elsewhere.

WHAT TO DO TO GET STARTED:

Requesting a VMP email tune is as easy as obtaining a supported tuning device for your vehicle, purchasing the tuning product or package, and letting us know of your vehicle modifications!
Below are the exact steps on to how to receive your custom calibration:

1. Purchase this supercharger kit along with necessarySCT X4 Tuning Device.
2. Fill out the VMP Tune Order form with your vehicle’s information and a list of your current modifications/requests
   Click HERE to fill out the VMP Tune Order Form

That’s it! Once the form is submitted, an email chain will be created with the email address provided in the form. A VMP calibrator will be in contact to help you every step of the way!

For more information, visit theVMP Tuning Information & Policies.

DATALOGGING & DIAGNOSTICS:

VMP is happy to work with customers to address any concerns they may have. Limited datalogging support is available for up to 6 months after you've received your initial tune file(s).
This service allows the calibrator to provide insight into your vehicle's performance and diagnose any potential issues caused by mechanical failures or installation errors.

Click HERE to view VMP’s general datalogging instructions for the SCT device

For more information, visit theVMP Tuning Information & Policies.

CUSTOM TUNE UPDATES & REVISIONS:

Custom tune updates for new modifications/fuels are available to current* VMP tuning customers.
*Currentmeans same vehicle, same owner, and still within the tuning support time frame window*


We highly recommend reaching out to your calibrator to verify your new modification is supported by VMP Tuning, and to also find out the cost associated with updating your tune file for the new modification/fuel.
Once you've confirmed support/pricing for your new mods,click HERE to purchase the custom tune update.

For more information, visit theVMP Tuning Information & Policies.

Important parts and tuning notice:

By ordering this tune, you agree to assume all responsibility for assuring that is to be used for off-road and/or competition use only and is not to be used on a vehicle that is registered for use on public roads nor highways.

Because the U.S., Canadian and other international, state, or provincial laws and regulations may prohibit removal or modification of components that were installed on vehicles by Ford Motor Company to meet emission requirements or to comply with motor vehicle safety regulations applicable to vehicles manufactured for use on public roads, VMP wants you to know the following:

Most of the parts and services offered in this online catalog are for off-road use or competition use only. Use on State and Federal highways may be a violation of the EPA Clean Air act. The Clean Air Act can be found athttps://www.epa.gov/clean-air-act-overview. This document contains in detail what are considered to be violations of the CAA and corresponding penalties for failure to comply and should be read in full before purchasing or installing this off-road or race use only product. Ensuring that all emissions, noise/sound, and speed/use related laws are followed is the responsibility of the Buyer(s). Installation and use of this product indicates that his disclaimer has been read, acknowledged, and understood fully by both the Buyer(s) and Installer(s). The Buyer(s) assume all associated risk of the purchase.

Emissions Notice:

Federal and several state and provincial laws prohibit the removal, modification or rendering inoperative of any part that affects emissions or safety on motor vehicles used on public streets or highways. VMP assumes no liability for any violations arising out of any federal, state or provincial emissions or safety requirements on motor vehicles arising out of the customer’s modifications and/or use of our products or services. It is the responsibility of the customer to determine if their modified vehicle complies with applicable laws.

California Residents:

The emissions laws and regulations of the state of California apply to all non-racing vehicles. Consequently, some parts in this catalog may legally be used in California only on a racing vehicle which will never be operated on public roads.
