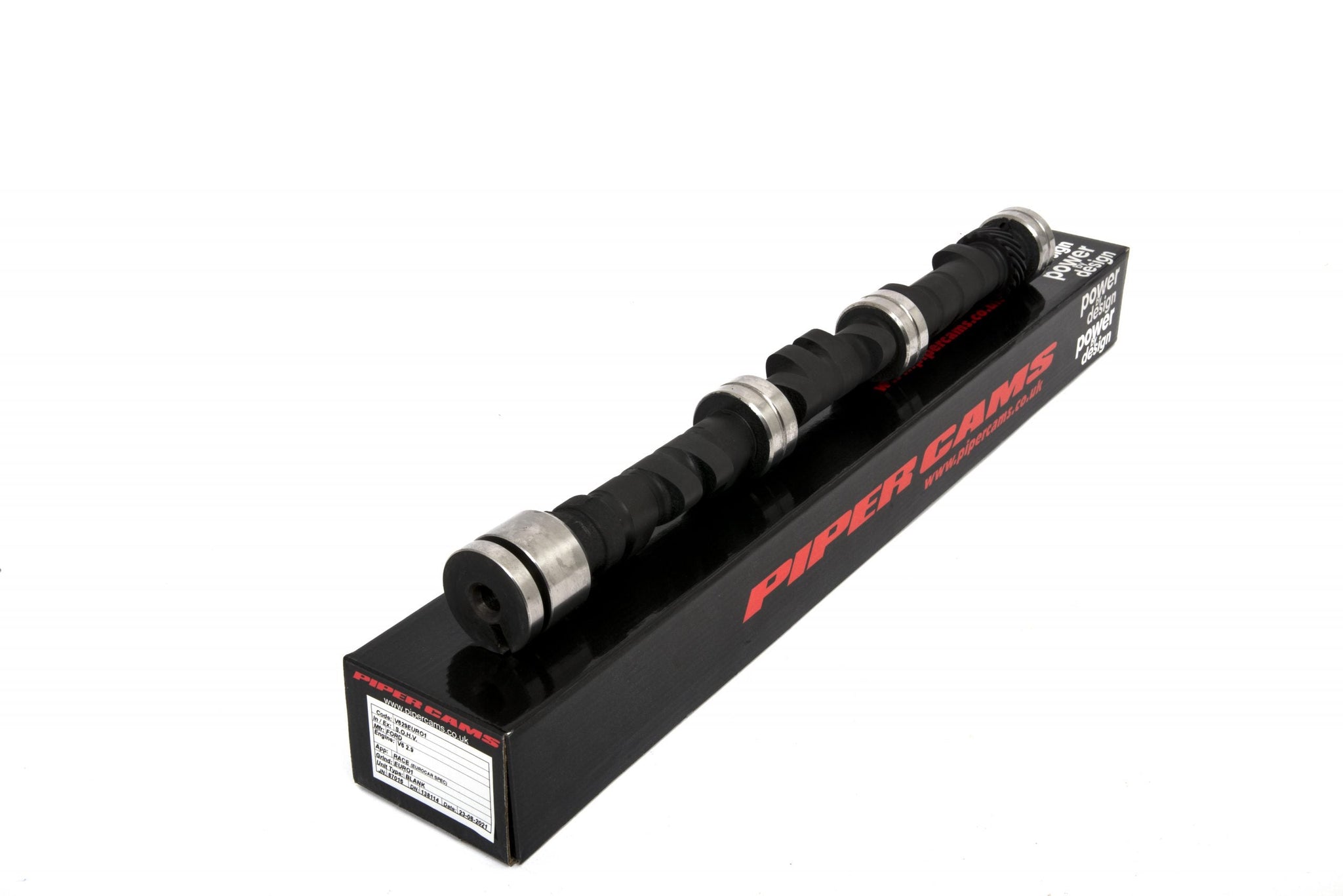

SKU: SKU: V629BP320B
Profile: BP320.
Application: Race.
Unit Type: Blank.
Download:-
Right click the link and select ‘Save link as’ to download.
Click the link to open in a new tab.
| Weight | 3 kg |
|---|---|
| Application | Race |
| Power Band | 3500-7500 |
| Duration Inlet | 320° |
| Duration Exhaust | 320° |
| Valve Inlet Lift | .450" 11.43mm |
| Valve Exhaust Lift | .450" 11.43mm |
| Timing Inlet | 54 - 86 |
| Timing Exhaust | 86 - 54 |
| Full Inlet Lift | 106° |
| TDC Inlet Lift | .164" 4.17mm |
| TDC Exhaust Lift | .162" 4.11mm |
| Valve Inlet Clearance | .014" .35mm |
| Valve Exhaust Clearance | .016" .40mm |
