SKU: SKU: V628BP320RL
Profile: BP320.
Application: Race.

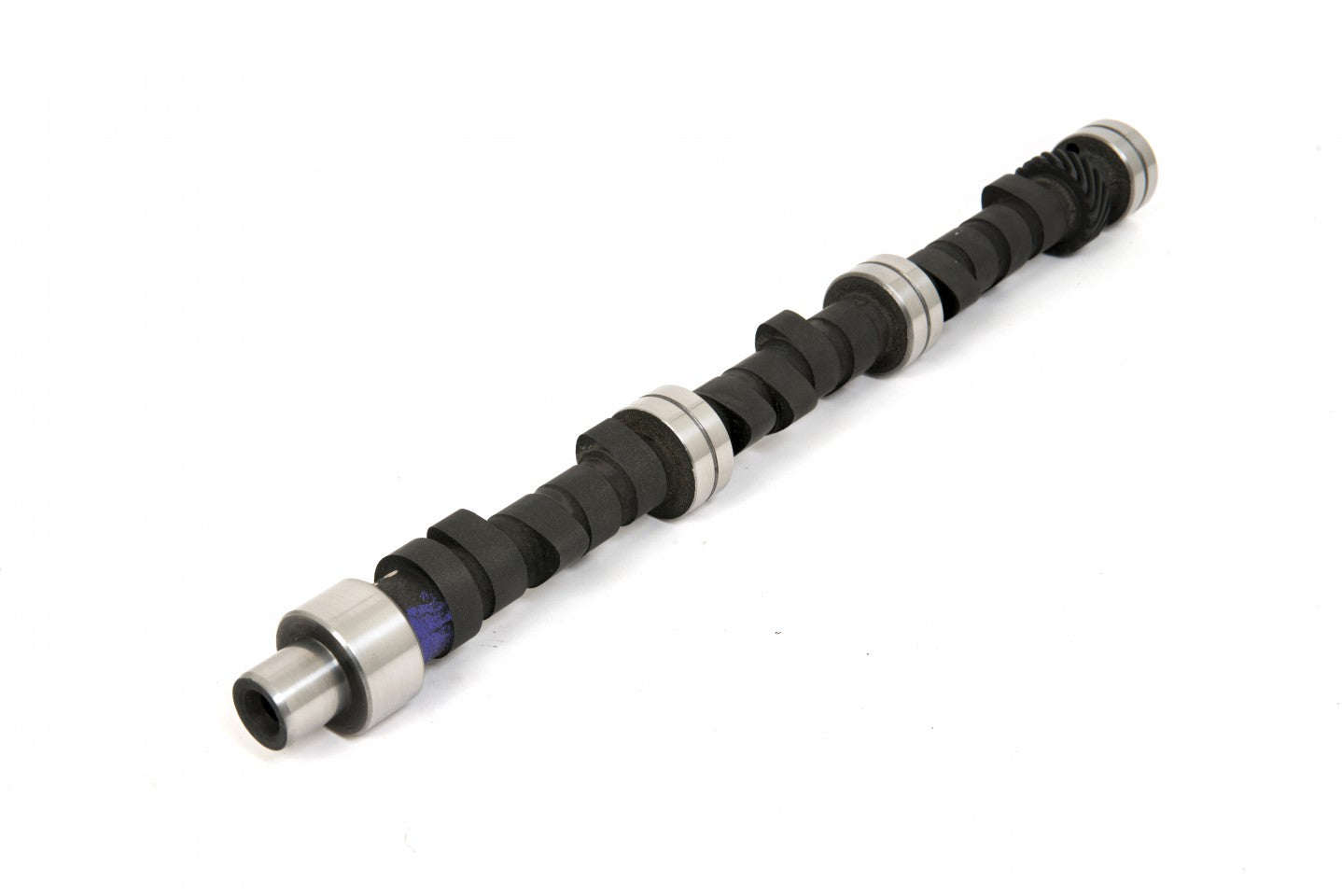

Unit Type: Re-Profiled Large Bering Camshaft.
Note:This is a re-profile camshaft only. You will need to complete our Send Parts form and send us your existing camshaft. For more information, please take a look at our Reprofiling page.
Note: Re-Profiled camshafts may vary from specifications listed.
| Weight | 3 kg |
|---|---|
| Application | Race |
| Power Band | 3500-7500 |
| Duration Inlet | 320° |
| Duration Exhaust | 320° |
| Valve Inlet Lift | .450" 11.43mm |
| Valve Exhaust Lift | .450" 11.43mm |
| Timing Inlet | 54 - 86 |
| Timing Exhaust | 86 - 54 |
| Full Inlet Lift | 106° |
| TDC Inlet Lift | .166" 4.22mm |
| TDC Exhaust Lift | .164" 4.17mm |
| Valve Inlet Clearance | .012" .30mm |
| Valve Exhaust Clearance | .014" .35mm |
