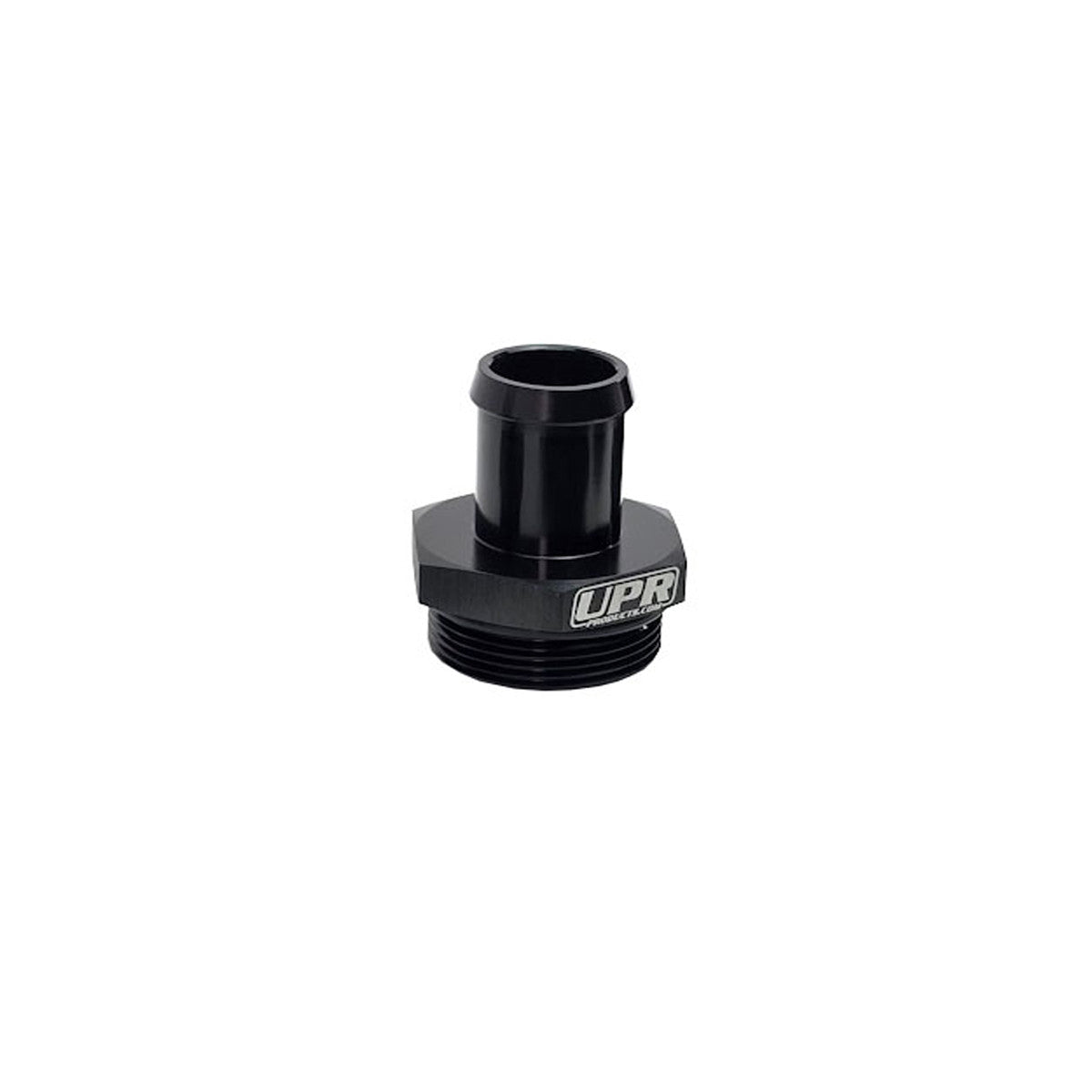

UPR - 20AN ORB Male to 1" Barb Adapter Fitting Black - 8801-002

     UPR Billet Fittings can be used in many different applications but primarily used in fuel, cooling, oil and breather systems. CNC Machined from 6061 Billet aluminum and anodized for a durable long lasting finish. These fittings were developed as part of our Ultra Street program with a focus on maximum flow. Inside diameter of fitting from one end to the other has a clean transition no rough steps to impede water or air flow. O-ring included for ORB end of fitting.

» CNC Machined 6061

» Show Quality Black Anodized

» 1" Male Barb w/.828" ID

» 20AN ORB Male Thread w/1.37 ID

» Clean Transition from One end of Fitting to other (no step)

» Discount for Quantities 5 or More
» Compatible with Air, Water, Gas, Alcohol, Coolant, Oil, E85, Nitrous Oxide, Transmission Fluids



Highly recommended using aluminum AN wrenches to tighten aluminum anodized fittings to prevent galling/scratching that will occur when using a standard steel wrench.



Universal fit. Primarily used in fuel, cooling, oil and breather systems. Radiators and Firewall pass-through blocks.
