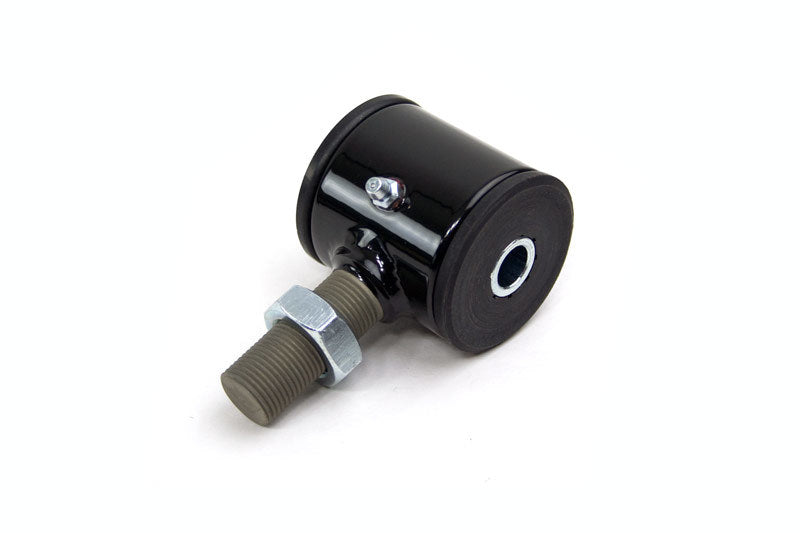

UMI Performance Control Arm Adjustable Polyurethane Bushing End- GM A/G & F-Body - 90013-B

This fabricated bushing end is designed to replace spherical rod ends on UMI Performance control arms for select GM vehicles. It is also compatible with many other brand control arms that use a ¾”-16 right hand threaded rod end. Simply remove the old rod end and screw in this polyurethane bushing assembly to replace worn or noisy rod ends. The bushing holder comes fully assembled with fluted bushings, a grease fitting, new jam nut, and durable powder coat. The bushing width is 2.400” with a 3/4”-16 right hand thread, 0.500” bolt hole diameter, and 1.750” of thread adjustment. The threads are made of 4140 Chrome Moly steel and the assembly is TIG welded for superior strength and durability.

Features

• Designed to replace spherical rod ends on UMI Performance control arms for 1964-1972 GM A-Body, 1978-1988 GM G-Body, and 1982-2002 Camaro/Firebird
• Works on many other brand control arms for listed vehicles with ¾”-16 right hand threaded rod ends
• Replaces worn out rod ends or noisy rod ends
• Supplied fully assembled with High Quality fluted bushings, grease fitting, new jam nut, and durable powder coat
• Bushing width of 2.400”
• 3/4”-16 right hand thread
• 0.500” bolt hole diameter
• 1.750” of thread adjustment
• Threads fabricated from 4140 Chrome Moly steel
• DOM tubing
• TIG welded for superior strength and thread durability

Application

• Designed to replace spherical rod ends on UMI Performance control arms for 1964-1972 GM A-Body, 1978-1988 GM G-Body, and 1982-2002 Camaro/Firebird
