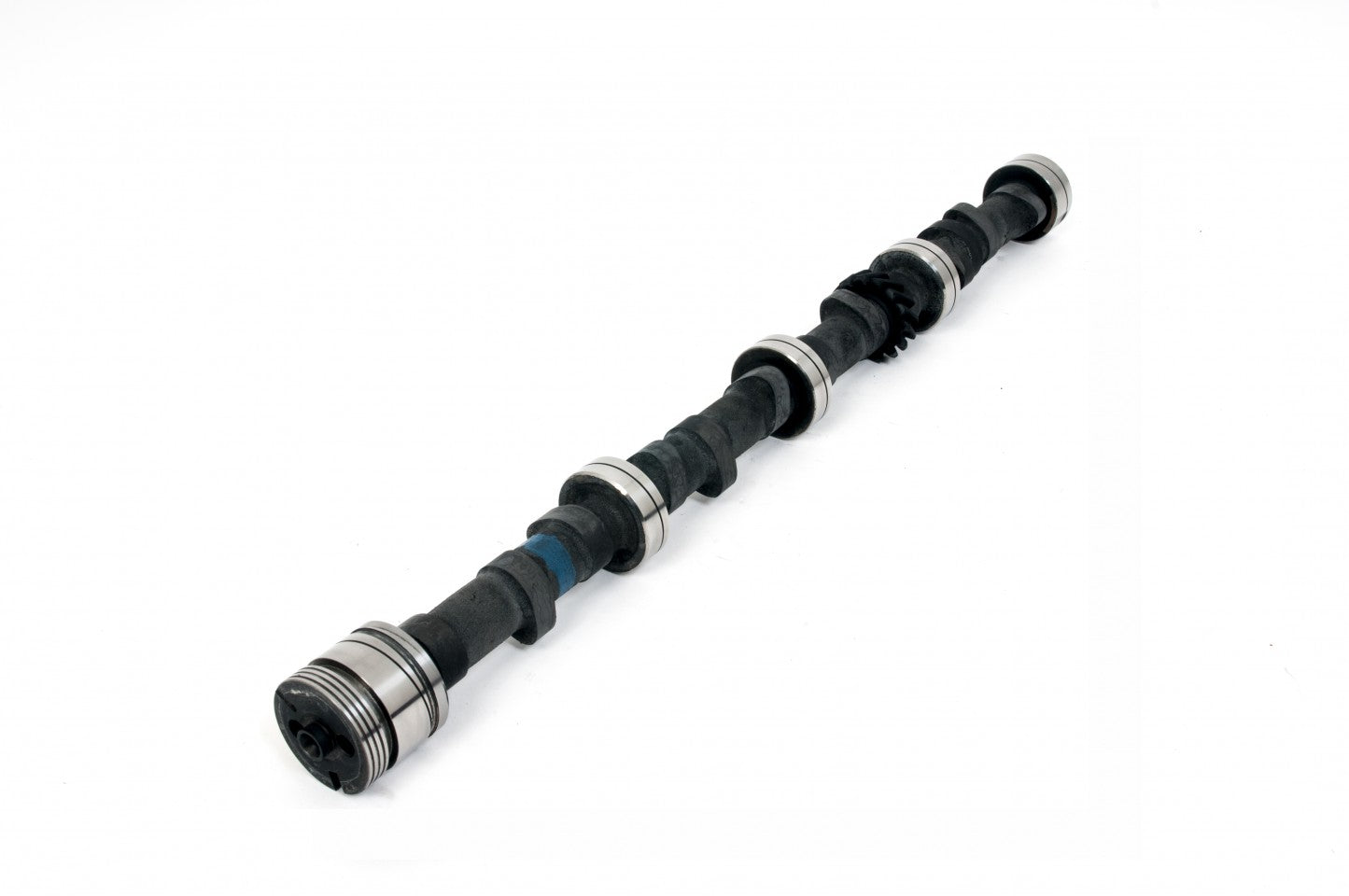

Piper Cams Camshaft - Mild Road (Triumph)

SKU: SKU: TR6BP255B

Profile: BP255.

Application: Mild Road.

Unit Type: Blank.

Download:-

Fitting Data.

Right click the above link and select 'Save link as' to download.

Click link to open in a new tab.

Specifications

Weight 4 kg
Application Mild Road
Power Band 1000-5500
Power Increase 8BHP
Duration Inlet 252°
Duration Exhaust 252°
Valve Inlet Lift .380" 9.65mm
Valve Exhaust Lift .380" 9.65mm
Timing Inlet 17 - 55
Timing Exhaust 55 - 17
Full Inlet Lift 109°
TDC Inlet Lift .042" 1.06mm
TDC Exhaust Lift .040" 1.01mm
Valve Inlet Clearance .022" .55mm
Valve Exhaust Clearance .024" .60mm

Vehicle Application

  • Triumph 2.0 / 2.5 6 Cylinder
