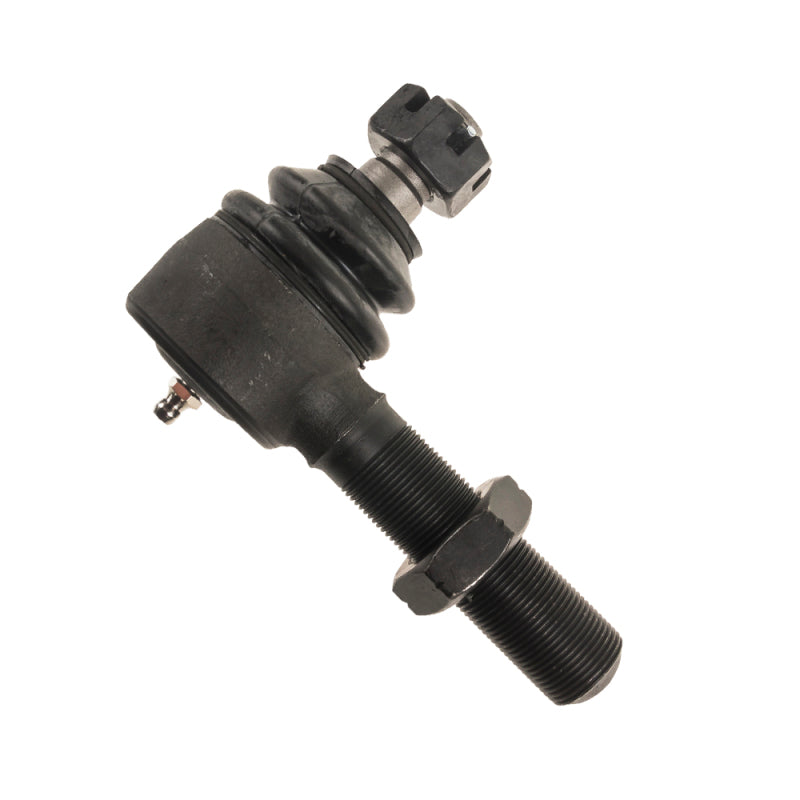

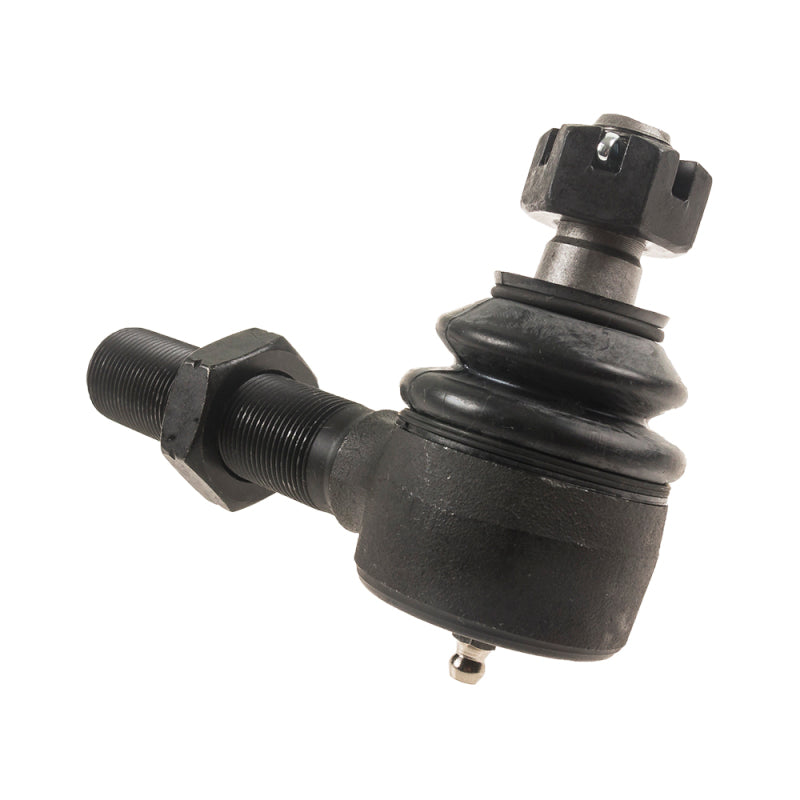

Synergy 94-13 Dodge Ram 1500/2500/3500 HD LH Thread Shank Tie Rod End For Drag Link Metal on Metal - 4133-L

The Synergy Heavy Duty Replacement Tie Rod & Drag Link Ends are precision-engineered to deliver unmatched durability and performance in the harshest driving conditions. These are the exact replacements for your Synergy Heavy Duty Steering components.

Each end features a forged housing surrounding fully greaseable, sintered metal-on-metal bushings — a design that ensures long-lasting, high-performance operation with minimal wear. The studs are crafted from high-strength 4140 steel and equipped with a larger-than-stock shank, giving these rod ends the edge to outperform and outlast all OEM and aftermarket alternatives.

Fitment:

Tie Rod End Specs:

Benefits:

• Engineered with grease grooves in the ball bearings, achieving the longest lasting metal on metal rod end on the market with maximum lubrication and wear resistance
• Eliminating the nylon ball race allows for a larger ball bearing and increased strength
• The spring loaded bearing design keeps pressure on the bearings and the joint tight as it wears, preventing premature play
• Outperforms factory and all other aftermarket style tie rod ends by offering a larger shank with no stress riser (doesn't neck down at base), preventing premature failure

Features:

• Fully greaseable sintered metal on metal bushing design has high wear resistance
• Precision engineered grease grooves in the OD of the induction heat treated ball bearing
• Ultra-strong forged bearing housing made from 1018 steel
• Spring loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears
• Tie Rod End stud made from 4140 steel with an extra large shank
• Heavy duty nitrile-butadiene rubber (NBR) boots and retaining springs
• DynaFlo 1/4'-28 straight steel zinc grease zerk fittings with ball check

Includes:

(1) Synergy Heavy Duty Metal on Metal Tie Rod End
(1) DynaFlow 1/4" - 28 Zerk Fitting
(1) Castle Nut
(1) Cotter Pin

Notes:

• Fits all 94-current Dodge Ram Synergy Steering Kits - part numbers 8525-XX or 8725-XX
• New single plane tie rod ends now included with all 1994 - present tie rods - part numbers 4167-L, 4168-L, 4169-L
  • Single plane tie rod ends are not compatible with the metal misalignment caps - part number 4134-02
  • If upgrading to the new single plane tie rod end on older model tie rods for these model years, the opposing tie rod end will require a new poly boot part number 4131-01
  • If the cotter pin does not engage the castle nut upon install, a washer is required; Washer may not be required on all knuckles depending on casting differences and wear
• Synergy High Performance Grease, part number 4119 is the recommended grease for this product
• Current Tie Rod Ends are backwards compatible with all old model Synergy Ram steering
• Synergy Ram Heavy Duty Replacement Tie Rod Ends are not compatible with OEM steering
• Please double check your part numbers and fitment before ordering.
