Features:
- High strength hardware
- Replaces the Lower Control Arm (LCA) & Upper Control Arm (UCA) hardware and specialized nut tabs that get destroyed from wheeling abuse
- Replaces the Rear Track Bar (TB) bolts which often get worn out from service
- Replaces the Front Track Bar Frame Side (TB) bolt on 2012+ JK with a 14mm bolt
- Includes hardened extra thick washers that will not deform or contort like standard washers

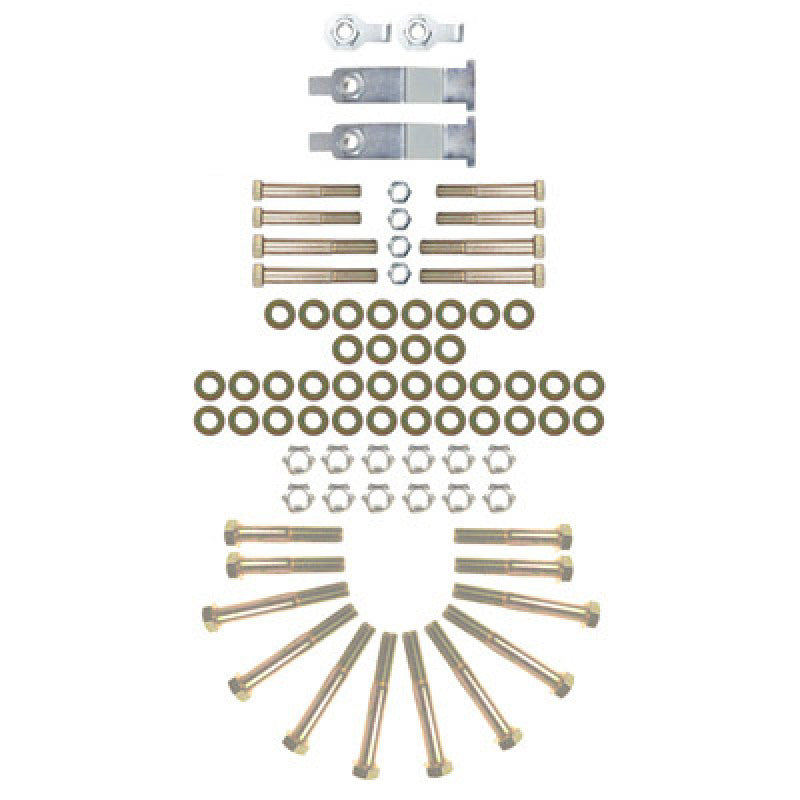

Complete Kit Includes:
(1) Lower Control Arm & Track Bar Hardware Kit (8050)
- (8) 9/16-18 UNF x 4.0" long bolts (LCAs)
- (4) 9/16-18 UNF x 3.0" long bolts (TBs)
- (12) 9/16-18 UNF Stover top lock nuts
- (24) 9/16" Extra Thick hardened flat washers
- (1) M14-2.0 x 80mm bolt (2012+ Front Frame Side Track Bar Bracket)
- (1) M14-2.0 Stover top lock nut
(1) Upper Control Arm Hardware Kit (8050-01)
- (4) 9/16-18 UNF x 3.50" long bolts (RUCAs)
- (4) M12 X 1.50 85MM (3.50") long bolts (FUCAs)
- (4) M12 x 1.50 Stover top lock nuts
- (4) 9/16" Extra Thick hardened flat washers
- (8) 1/2" Extra Thick hardened flat washers
- (2) Rear Upper Control Arm Nut Tab, Frame Side
- (2) Rear Upper Control Arm Nut Tab, Axle Side
![]()
Installation Instructions
