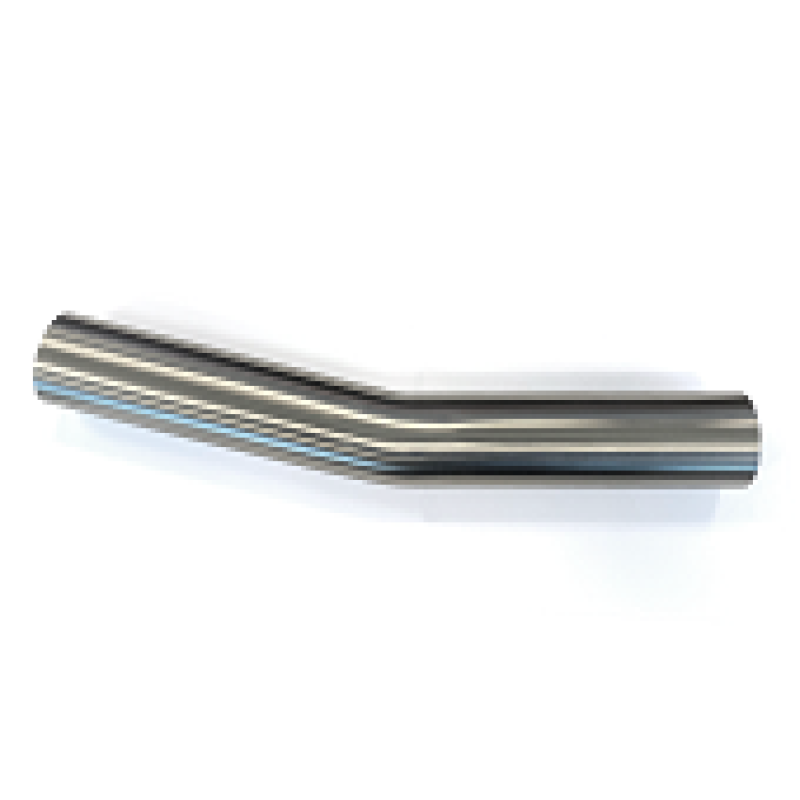

Stainless Bros 3in Diameter 1.5D / 4.5in CLR 15 Degree Bend 6.5in Legs Mandrel Bend - 601-07616-8150

Stainless Bros 3" SS304 15° Mandrel Bends have been bent from our 16GA/.065" 304 Stainless Steel tubing. Each mandrel is individually bent, the ends are laser cut, the bend is then finished to a fine 180 Grit finish and they are ultrasonically cleaned to provide a ready to weld solution right out of the package.

Stainless Bros utilizes our own proprietary cnc mandrel bender and custom mandrel dies to provide a perfect bend every time that is both wrinkle and scratch free. Our mandrel bends will drastically reduce the fabrication time needed for producing a full Stainless Steel exhaust system when pie cuts become too time consuming.

Specifications:
Material: 304 Stainless Steel
Tubing Diameter:3Inch
Wall Thickness: 16GA/.065"
Bend Degree: 15°
Bend Radius: 1.5D / 4.5"
Leg Lengths: 6.5" / 6.5"
Quantity: Single Mandrel Bend
Part #: 601-07616-8150
