Skyjacker 21-25 Ford F-150 6 In Component Box With ADX M2.0 Aluminum Monotube Shocks - F2160BXM

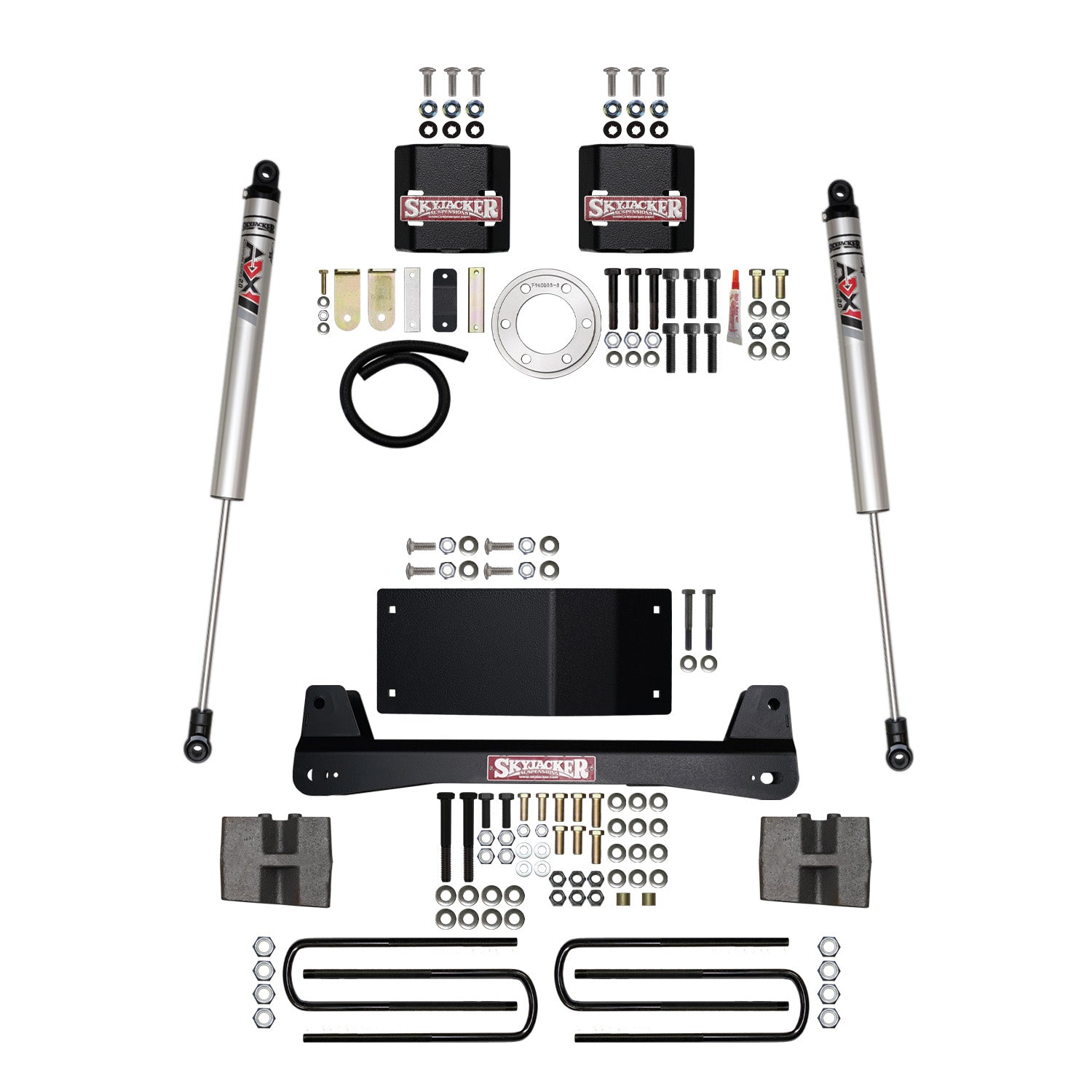

6 In. Component Box With Strut Spacers, Skid Plate, Rear Crossmember Brace, Front Driveshaft Spacer, Carrier Bearing Lowering Bracket, Lift Blocks, U-bolts, And ADX M2.0 Adventure Series Aluminum Monotube Shocks.

A differential skid plate tie the two crossmembers together to create a rigid sub-frame and added protection for vital steering and driveline components.

Retain your front Ford OEM tuned performance struts by utilizing top mounted strut spacers. Precise engineered 1-piece strut spacers have a specific 'Pitch and Index' offset to preserve CV extension and to prevent CV axle overextension within the OEM tolerances.

Front and rear brake line relocation brackets, differential vent tube extension, a CNC machined 6061-T6 aluminum front driveshaft spacer, rear driveshaft carrier bearing lowering bracket, cast ductile iron rear blocks with longer U-bolts and lock nuts.

Shocks are a key link in-between the chassis and the moving parts of your suspension. Skyjacker's ADX M2.0 Adventure Series Aluminum Monotube Rear Shocks deliver modern technology in the design with an innovative off-road race-inspired full-displaced valving system.

Features

• 1-Piece Strut Spacers Have A Specific Pitch And Index Offset.
• ADX M2.0 Aluminum Monotube Provides Better Heat Dissipation.
• ADX M2.0 Has Race-Inspired Full-Displaced Valving System.
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology.
• ADX M2.0 Reacts Quicker To Improve Control And Stability.
• Diff Brackets Plus Driveshaft Spacer Correct Driveshaft Angle.
• IFP Technology Provides Quickest Shock Reaction Time Ever.
• Prevents CV Axle Overextension Within OEM Tolerances.
• Rear Block And U-bolt Kit Delivers A More Level Stance.
• Skid Plate Equals Rigid Sub-Frame.
• Three Separate Diff Brackets Reposition / Correct CV Angles.
• Works With Electric Power Assisted Steering (EPAS) System.

Installation Instructions (PDF)
