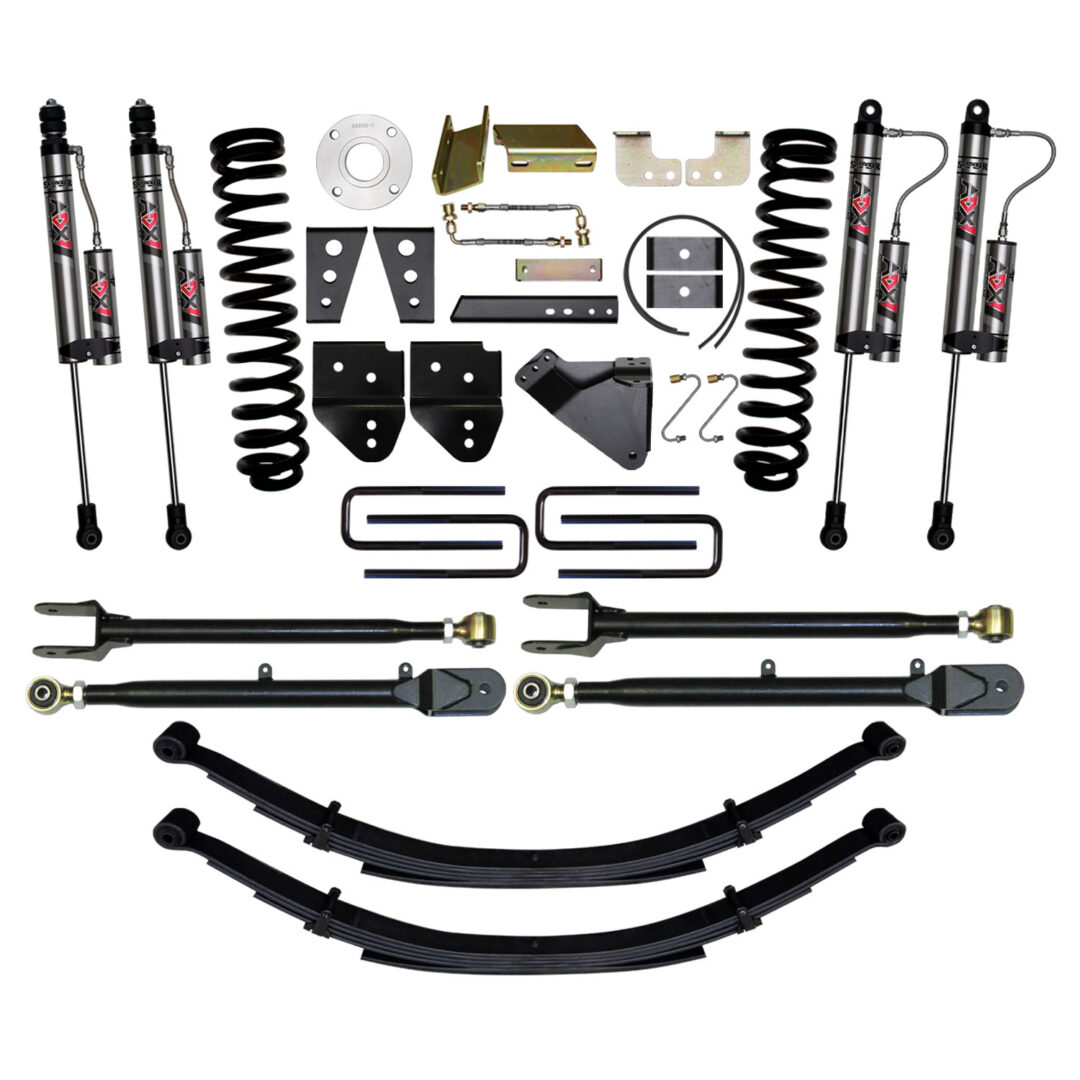

Skyjacker 11-16 Ford F250/F350 ADX 2.0 Adventure Series 8.5in Suspension Lift Kit - F11852K-X

8.5in.KT CLII 11F250DSL ADX

Skyjacker re-engineered the Super Dutys suspension via an outstanding 8.5-inch 4-Link Conversion. Replace your OEM radius arm mounts with integrated radius arm drop brackets plus upper and lower adjustable control arms. Formed from 2-inch OD x 0.250 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling. Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4 in. forged rod end with Rubber Encased bushing. Skyjacker's legendary Softride(R) technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. Skyjacker specifically engineered this Variable Rate Coil Spring for the Super Duty 4WD Diesel to deliver a smoother ride. A heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this high-stress area and to keep the axle centered. Lowering brackets realign the front sway bar for maximum sway control. Drop spacers reposition the front bump stops. Front brake line extension brackets correctly reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection. A 5.5-inch rear block and U-bolt kit with Softride(R) Technology Add-A-Leaf springs yields a more level stance. Skyjacker Softride(R) Technology enhances every aspect of the add-a-leaf spring performance. E-brake relocation brackets, bump stop spacers, rear braided stainless steel brake line extensions and rear exhaust hanger brackets are included. Front and rear damper capacity enhanced with ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks. ADX 2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever.

Features

• ADX 2.0 Has The Quickest Shock Reaction Time Ever
• ADX 2.0 Has A Race-Inspired Full-Displaced Valving System
• ADX 2.0 Nitrogen Charged/Internal Floating Piston Technology
• IFP Technology Prevents Lag/Decline Or Fade/Failure
• 38s Improve Your Off-Road Stance And Gain Ground Clearance
• Increase Travel With Impressive 4-link Flex Ride Enhancement
• Yields More Lift In The Front For A More Level Stance
• Softride Technology Enhanced Variable Rate Coil Springs
• Radius Arm Mount Drop Brackets Properly Corrects Caster
• Ultra Heavy-duty Track Bar Bracket Keeps The Axle Centered
• Bump Stop Spacers Keep Suspension Travel Safely In Check
• Reap The Benefits/On-Road Refinement/Off-Road Readiness

Specifications
