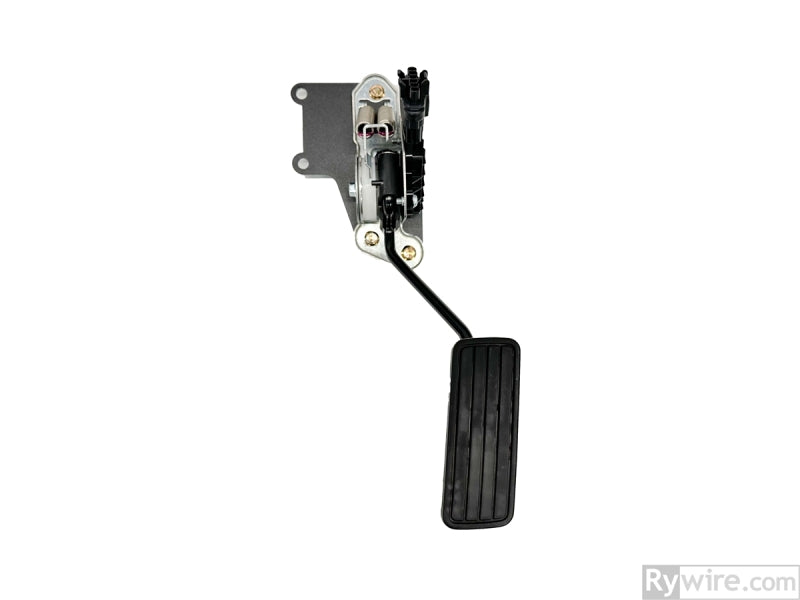

Introducing the Rywire Drive by Wire Pedal kit
This Drive-By-Wire (DBW) pedal kit was designed for the Honda EG/DC and EK chassis.
Note: Some customers have successfully installed and used this pedal in a CRX chassis with slight modifications.
There is a high possibility that it may work on MOST Honda platforms as well as some other model vehicles.
PLEASE UNDERSTAND that you will need an engine/motor computer that can accept a throttle-by-wire input, as well as the ability to scale the sensor potentiometer. You will also need an electronic throttle body if you are using a gas engine with your system.
What is included with this kit:
-New OEM pedal
-Powder coated pedal bracket
-Pedal mounting hardware
-Pedal connector kit with loose seals and terminals
Connector Pinnout (look for the numbers on connector)
1. pedal 5V+
2. signal 2
3. pedal 5V+
4. pedal 0v ground
5. signal 1
6. pedal 0v ground
Q&A FAQs-Will a Mugen pedal face work with this pedal pad? Yes Likely
-Can I use this on my factory computer vehicle? Not Likely
-Will you sell the bracket only? Not Likely
-Will I have to cut off my old throttle pedal? Yes Likley
