SKU: SKU: RSRXSPIH220M

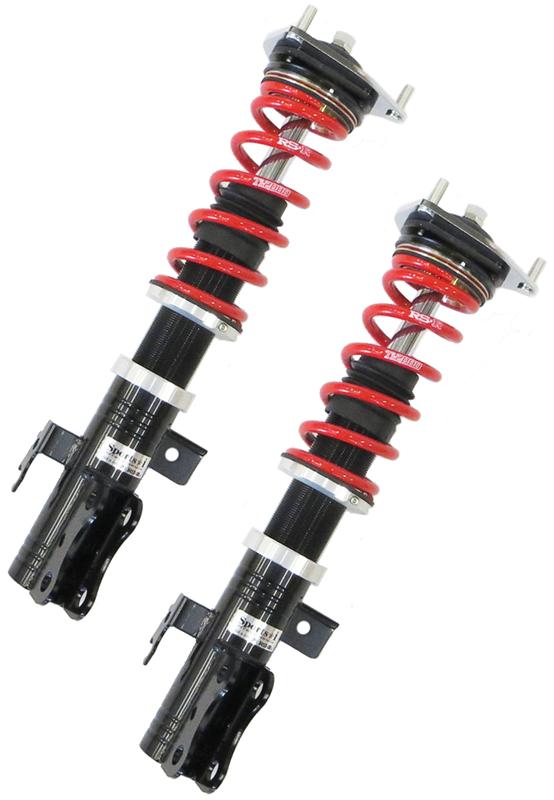

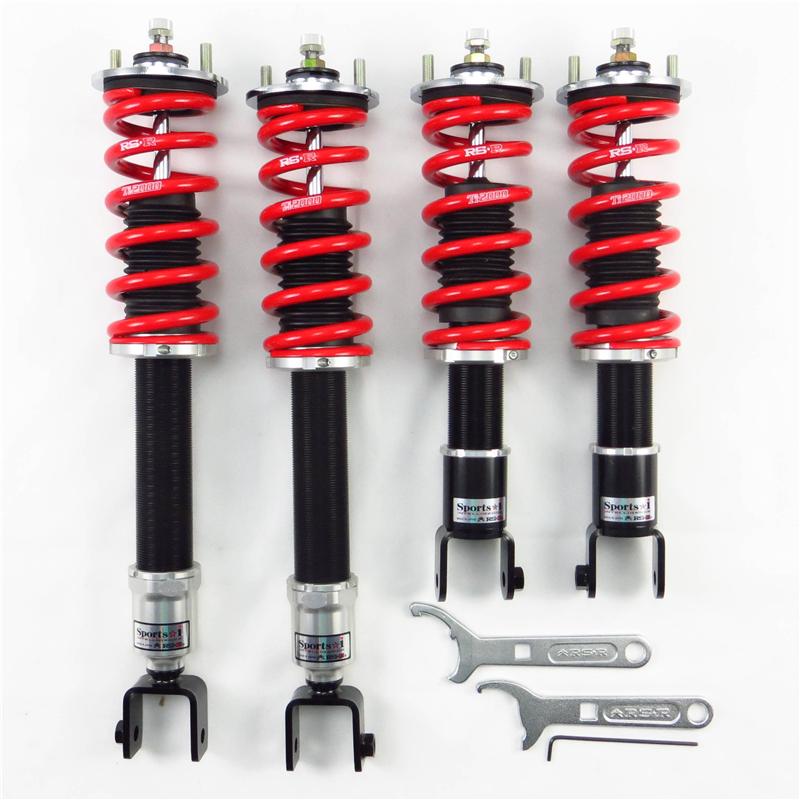

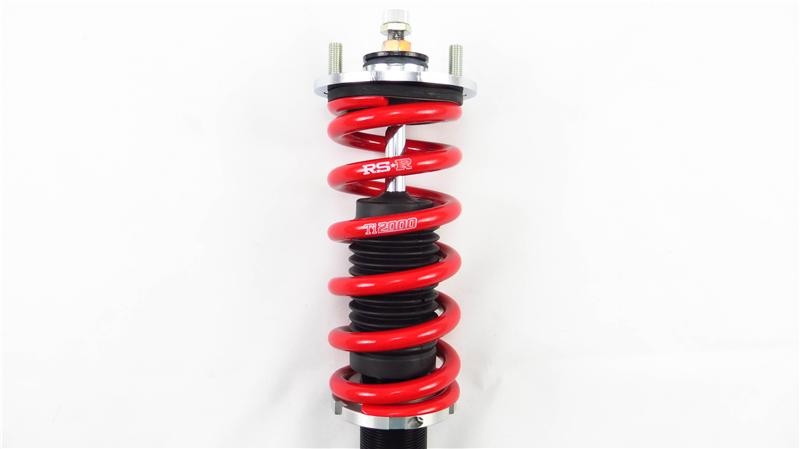

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance. Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.
-----------------------------------------------------------
Product Details
Part Number: XSPIH220M
Compatibility: 2000-2009 Honda S2000
Chassis code: AP1/AP2
-----------------------------------------------------------
Preset Approximate Height
Front -20mm to -25mm (-0.8 inch to -1.0inch)
Rear -25mm to -30mm (-1.0inch to -1.2inch)
-----------------------------------------------------------
Maximum Adjustment Range
Front +20mm to -115mm (+0.8inch to -4.6inch)
Rear +5mm to -95mm (+0.2inch to -3.8inch)
-----------------------------------------------------------
Recommended Adjustments Range
Front +5mm to -45mm (+0.2inch to -1.8inch)
Rear -5mm to -50mm (-0.2inch to -2.0inch)
-----------------------------------------------------------
Spring Rates
Front 10.00kg/mm
Rear 9.00kg/mm
-----------------------------------------------------------
Additional Information
Dampers are 36 way adjustable in the front and the rear.
Warranty: 1 Year / 12,000 miles from the day of purchase.
-----------------------------------------------------------
Specification
Weight: 50 lbs
Dimensions: 13 in x 13 in x 32 in
-----------------------------------------------------------
Compatibility
Make: Honda
Model: S2000
Years: 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009
