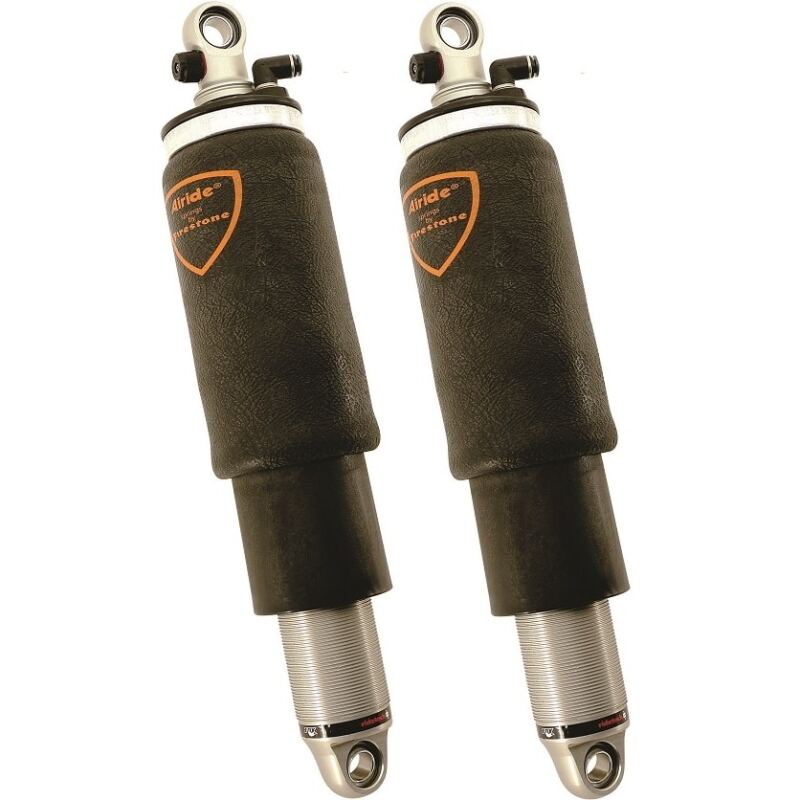

Rear HQ Shockwaves 8000 Series W/ 6.3 Inch Stroke And 2 Inch Stud A Pair Of Rebound Adjustable Shockwaves 5 Inch Rolling Sleeve W/ 1/4 Inch Fittings And Bearing Spacers 1/2 And 5/8 Inch 13.3 Inch X 18.9 Inch W/ A 16 -16.5 Inch Ride Height. The 7000 and 8000 series ShockWave, W/ a smaller diameter and longer stroke, will have a less load capacity and a softer spring rate that is appropriate for the rear of most vehicles W/ a solid rear axle. The spring rate and load capacity is influenced by the profile of the lower piston.
A straight piston will offer a very linear, or constant spring rate, throughout its travel. A tapered lower piston will result in a more progressive spring rate, much like the double convoluted airspring.
Although your specific vehicle may not be listed, we have a variety of ShockWaves that are designed to work W/ just about whatever setup you're using. Whether you're replacing your current CoilOvers, or starting a fresh build we can suit your air suspension needs.
Recommended Applications:
Solid rear axle: Rear axle weight is less than 2,000lbs.
Not recommended for IFS installations … not enough load capacity
Diameter and load capacity: 5in diameter 8000 series = 1,200 lbs. at 100 psi
Handling Quality Series
The Handling Quality (HQ) Series features single adjustable shock valving. It is housed in a impact forged aluminum construction. The HQ series is available in a wide range of stroke lengths, and mounting styles to fit a large variety of applications.
Features:
- Completely redesigned internal design
- Aluminum construction
- Single adjustable shock valving
- Available in a wide range of stroke lengths, and mounting styles to fit large variety of applications
- Impact forged body / mono-tube design for superior ride quality and durability
- Easy & precise valve adjustment W/ 24 rebound clicks
