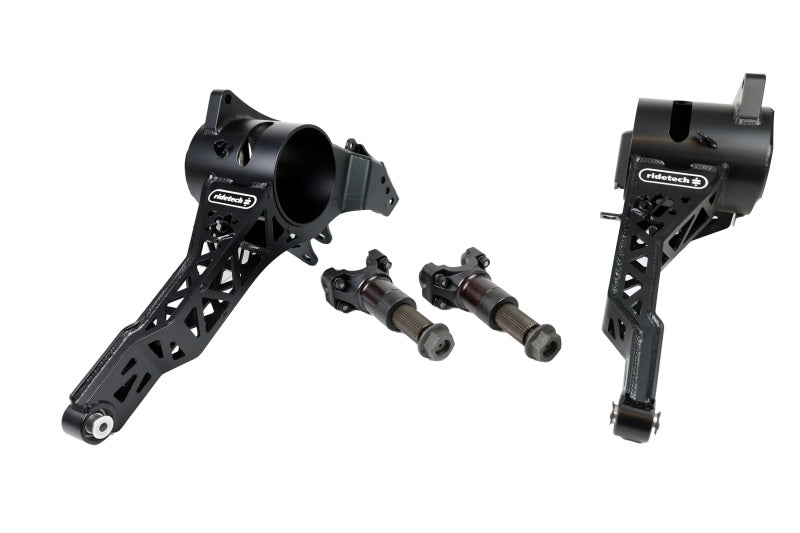

Ridetech 63-79 Chevy Corvette Rear Trailing Arms For C7 Hubs - 11537251

1963-1979 C2-C3 Corvette Offset Trailing Arms for C7 Hubs, Upgrade Kit, trailing arms only, for use W/ Ridetech Coil-Over System. Sold as pair. Similar to the standard Ridetech Rear StrongArms, these are upgraded for use W/ C7 Corvette hubs, extreme duty outer axles and C5/C6 brakes.

These upgrades provide maximum strength, consistent braking and reduced maintenance. Hubs, coil-overs, crossmember and camber rods are not included.

Features:

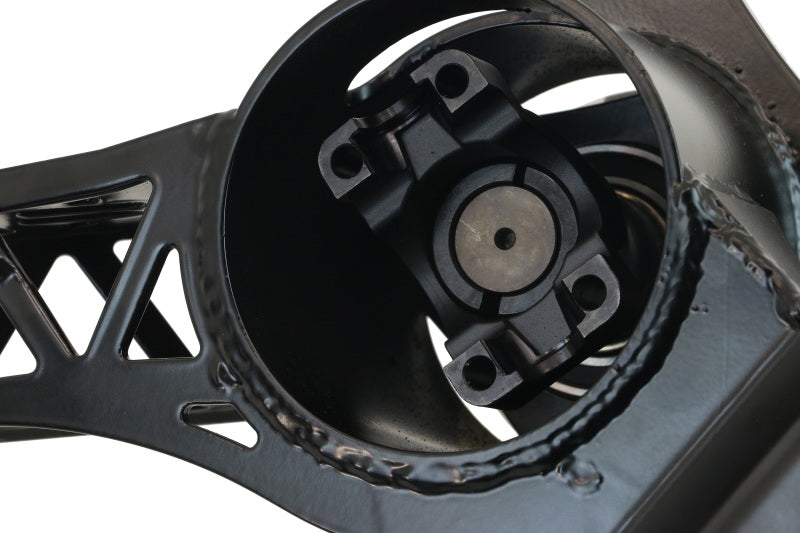

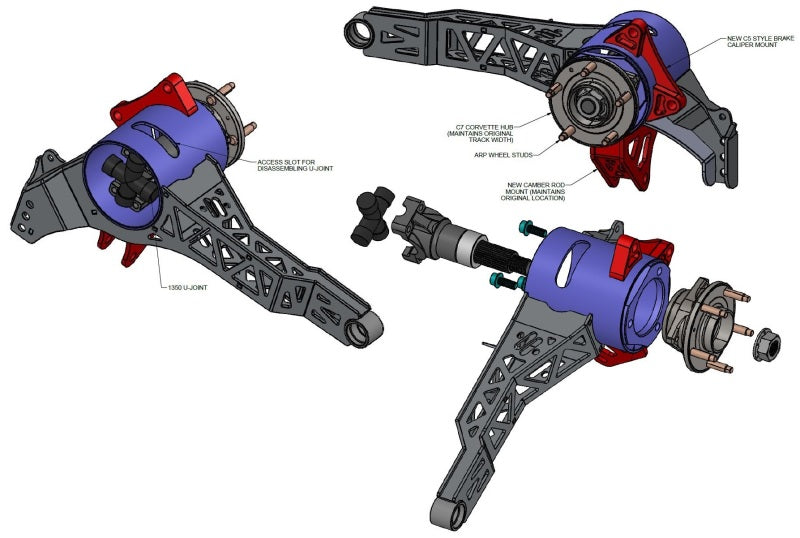

• Eliminates stock spindle and outer axle/bearing assembly and instead uses a C7 Corvette hub.
• Includes 33/35 Spline outer stub axle made of Hy-Tuf alloy steel (manufactured by Strange).
• Utilizes a 1350 outer U-joint, matches stock thru 1979 model year.
• Compatible W/ stock length axle shafts.
• Offset trailing arms for increased tire clearance. Truss design provides lightweight strength.
• Designed for use W/ Ridetech coil-overs (sold separately). Lowers ride height approximately 1-3in.
• Integrated brake mount accepts C5/C6 Corvette rear brake kit (most require 17in or larger wheels).
• Not compatible W/ parking brake
• Minimum 17in wheels.
• Spherical bearing forward mount.

Hub and Brake Compatibility:

• Hubs - 1997-2013 Corvette (C5/C6) or 2014-2019 Corvette (C7). C7 hubs are preferred (such as Moog 512558), they are stronger and more cost effective (no wheel speed sensor).
• Brakes - Any 1997-2013 Corvette (C5/C6) will fit (OE replacement or aftermarket).
• Suspension Location Rear
• Suspension Type Coil-Over Suspension
