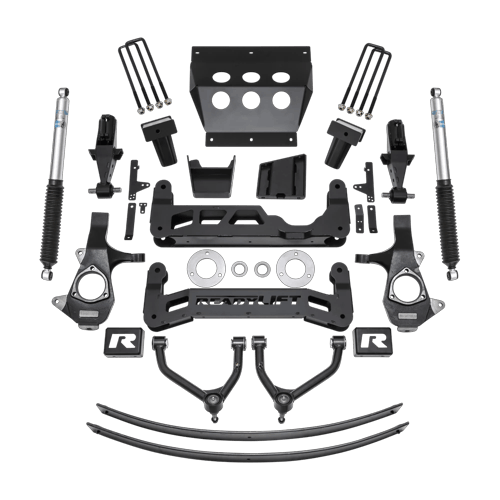

ReadyLift - 9" Big Lift Kit (Bilstein Shocks) - 2014-2018 Chevy Silverado / GMC Sierra 1500 - 44-3491

9-inch big lift kit with tubular upper control arms and Bilstein rear shocks for 2014-2018 GM 1500 trucks with the factory forged-steel front suspension.

This 9-inch system retains the factory turning radius and keeps the track-width increase under 0.5 inch per side. A clam-shell lower strut extension retains the factory struts without rotation, and new tubular upper control arms with TCT pivot bushings add strength over the OE stamped arms. Boxed 3/16-inch cross-members, a full-width skid plate and boxed 1/4-inch differential drop brackets carry the load; the rear is lifted with an add-a-leaf and 3/16-inch fabricated rear blocks.

Fits: 2014-2018 Chevy Silverado / GMC Sierra 1500 with the factory forged-steel front suspension; 2WD or 4WD (not AWD). Front MagneRide compatible.

Features

• Tubular upper control arms with TCT pivot bushings
• Clam-shell lower strut extension retains factory struts (no rotation)
• Boxed 3/16" cross-members and full-width front skid plate
• Boxed 1/4" differential drop brackets with double gusset
• Rear add-a-leaf spring and fabricated 3/16-inch rear lift blocks
• Premium extended-length Bilstein rear shocks

Tire Fitment

Up to a 37" tall tire on a 9" wide wheel with -12 offset (minor trimming may be required for aggressive tires).

Notes

For 2WD or 4WD only (not AWD). Front MagneRide only; not recommended for GMC Denali 1500 or other models with rear MagneRide. Confirm your control-arm type before purchase. Includes the ReadyLIFT ReadyGuard Powertrain Warranty. Single cab configuration has not been validated by ReadyLIFT.
