ReadyLift - 4"F/3"R SST Lift Kit - 2015-2020 GM 1500 SUV (Tahoe/Suburban/Yukon/Escalade) - 69-3496

4" front / 3" rear bolt-on SST lift kit for 2015-2020 GM 1500 full-size SUVs with factory cast-aluminum or stamped-steel front suspension.

The ReadyLIFT 69-3496 SST Lift Kit raises the front 4" and the rear 3" with no drilling, cutting, or welding. Powder-coated steel strut extensions bolt to the top of the factory strut without cutting strut studs, while 100% DOM tubular upper control arms with OEM-style ball joints and self-lubricating TCT free-floating pivot bushings retain OEM geometry. Patent-pending CNC-machined 6061-T6 billet aluminum differential drop brackets keep front axle and CV angles correct, and 3" rear coil spring spacers preserve the factory ride.

Fits: 2015-2020 Chevrolet Tahoe & Suburban, GMC Yukon, and Cadillac Escalade 1500 (2WD/4WD) with factory cast-aluminum knuckle or stamped-steel front suspension. Not for cast-steel suspension, AWD models, Magneride, or rear airbag suspension.

Features

• True 4" front / 3" rear lift, completely bolt-on
• Powder-coated steel strut extensions preserve the factory strut assembly
• 100% DOM tubular upper control arms with OEM-style ball joints and self-lubricating TCT pivot bushings
• Patent-pending CNC-machined 6061-T6 billet aluminum differential drop brackets
• Powder-coated plate-steel skid plate for differential protection
• 3" rear coil spring spacers, longer sway bar end links, bump stop extensions, and rear shock extensions retain factory ride

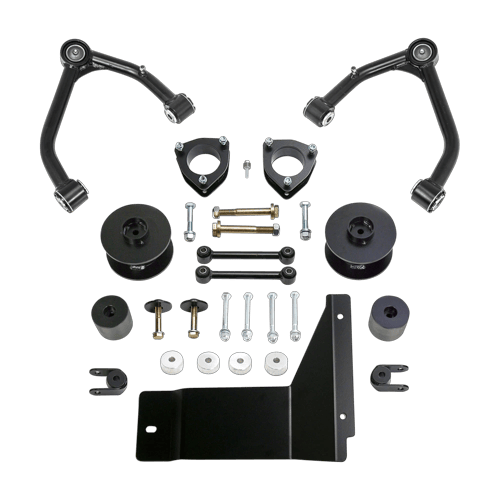

Kit Includes

• Tubular upper control arms with TCT pivot bushings
• Front strut extensions
• Billet aluminum differential drop brackets and skid plate
• 3" rear coil spring spacers
• Rear sway bar end links, bump stop extensions, and rear shock extensions
• Grade 10.9 hardware

Tire Fitment

Clears up to 33" tires (33x12.50 max) on aftermarket wheels; minor inner fenderwell trimming may be needed for 33x12.50. 33x11.50 on a 9" wheel with 0 offset fits with no rub. Also fits 295/65R18, 285/60R20, and 285/50R22.

Notes

Designed for use with aftermarket wheels; running stock wheels requires wheel spacer 10-3485 to clear the control arm at full lock. Installation may cause rear axle shift, and an adjustable rear track bar or drop bracket may be required. Estimated install time ~7.3 hours. Backed by ReadyLIFT's Limited Lifetime Warranty and ReadyGuard PowerTrain Warranty.
