ReadyLift - 2.5"F/1.5"R SST Lift Kit - 2001-2007 Toyota Sequoia - 69-5010

Complete 2.5" front / 1.5" rear SST suspension lift for the 2001-2007 Toyota Sequoia.

The 69-5010 uses powder-coated steel strut extensions and a front differential drop bracket to deliver 2.5" of front lift while retaining OEM suspension geometry, plus a rear spring spacer for a slight rake. It requires no cutting or strut spring pre-loading and installs with the provided heavy-duty hardware.

Fits: 2001-2007 Toyota Sequoia (2WD/4WD). Not for use with rear air bag suspension.

Features

• 2.5" front / 1.5" rear lift
• Powder-coated steel strut extensions
• Front differential drop and skid plate spacers
• Rear spring lift spacers
• No cutting or spring pre-load required; retains OEM ride and geometry

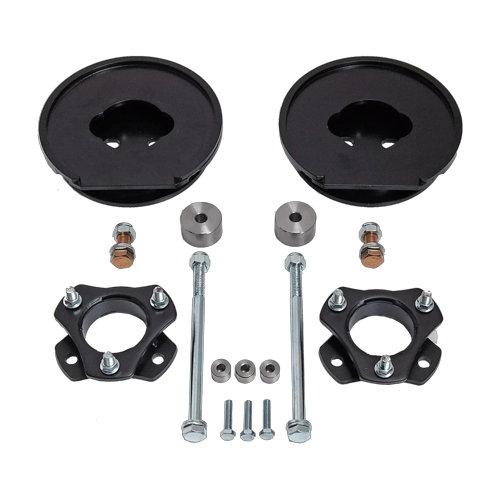

Kit Includes

• Front strut extensions
• Front differential drop spacers
• Skid plate spacers
• Rear spring lift spacers
• Heavy-duty hardware

Tire Fitment

Up to 33" diameter; 33x11.50 with no rub on a 9" wheel with 0 offset. Also fits 295/65R18, 285/60R20, and 285/50R22.

Notes

Not for use with rear air bag suspension. The rear spacer fits only one of three Sequoia rear frame designs; inspect the rear frame for a top spacer bolt-hole provision before installing, and contact ReadyLIFT customer service if it is absent. Estimated install time ~6 hours. Backed by ReadyLIFT's Limited Lifetime Warranty.
