ReadyLift - 4.5" Coil Spring Lift Kit with Falcon Shocks - 2019-2024 Ram 3500 (4WD Diesel) - 49-19430

4.5" front coil-spring lift kit with rear blocks, four Falcon 1.1 monotube shocks and Driveline Indexing System for 2019-2024 Ram 3500 HD 4WD high-output diesel.

The 4.5" coil-spring kit delivers the components of a big 6" kit at a slightly lower, garage-able stance and clears 37" tires. It includes heavy-duty radius arm drop brackets, fabricated steel front track bar brackets, a forged dropped pitman arm, sway bar relocation brackets and bump stop extensions, plus ReadyLIFT's CNC-machined 6061-T6 billet aluminum Driveline Indexing System (DIS) configured for the high-output diesel.

Fits: 2019-2024 Ram 3500 4WD HD, high-output diesel only. Will not fit standard-output 6.7L diesel, HEMI gasoline, dually, Classic, or automatic-leveling rear air suspension models.

Features

• 4.5" front lift with 3" rear taper blocks
• Four Falcon 1.1 monotube shocks tuned for the Ram 3500 HD
• Billet aluminum Driveline Indexing System (DIS) for high-output diesel
• New heavy-duty transmission crossmember

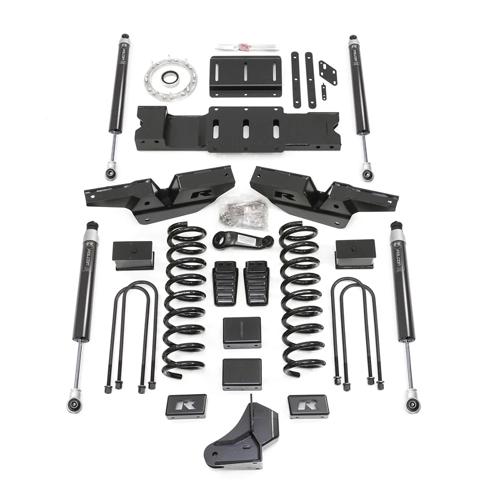

Kit Includes

• 4.5" lift front springs and 3" rear taper blocks
• Radius arm drop brackets; front track bar brackets
• Forged dropped pitman arm; sway bar relocation brackets; bump stop extensions
• Transfer case clocking ring and transmission crossmember
• (4) Falcon 1.1 monotube shocks

Tire Fitment

Up to 37x13.50 tires on 20x9 wide wheels.

Notes

Single-cab configuration not validated by ReadyLIFT.
