ReadyLift - 4.5" Coil Spring Lift Kit with Falcon Shocks - 2019-2024 Ram 2500 (4WD Diesel) - 49-19420

4.5" front / 3" rear coil-spring lift kit with four Falcon 1.1 monotube shocks and Driveline Indexing System for 2019-2024 Ram 2500 HD 4WD diesel.

The 4.5" coil-spring kit delivers the components of a big 6" kit at a slightly lower, garage-able stance and opens the door to 37" tires. It includes heavy-duty radius arm drop brackets, fabricated steel front and rear track bar brackets, a forged dropped pitman arm, sway bar relocation brackets and bump stop extensions, plus ReadyLIFT's CNC-machined 6061-T6 billet aluminum Driveline Indexing System (DIS) that re-clocks the transfer case for improved driveline angles.

Fits: 2019-2024 Ram 2500 4WD HD, diesel only.

Features

• 4.5" front / 3" rear lift
• Four Falcon 1.1 monotube shocks tuned for the Ram 2500 HD
• Billet aluminum Driveline Indexing System (DIS)
• New heavy-duty transmission crossmember

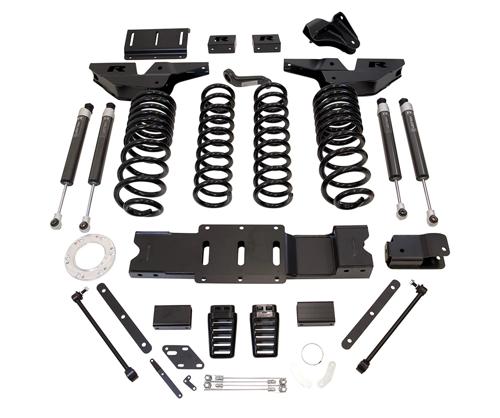

Kit Includes

• 4.5" lift front springs and 3" rear coil spring spacers
• Radius arm drop brackets; front and rear track bar brackets
• Forged dropped pitman arm; sway bar relocation brackets; bump stop extensions
• Transfer case clocking ring and transmission crossmember
• (4) Falcon 1.1 monotube shocks

Tire Fitment

Up to 37x13.50 tires on 20x9 wide wheels.

Notes

Does not work with factory air suspension or auto-level system. Single-cab configuration not validated by ReadyLIFT.
