ReadyLift - 4" Coil Spring Lift Kit with Falcon Shocks & Radius Arms - 2017-2022 Ford Super Duty F-250/F-350 (4WD Diesel) - 49-27421

4" coil-spring lift kit with four Falcon 1.1 monotube shocks and heavy-duty tubular radius arms for 2017-2022 Ford Super Duty diesel 4WD.

ReadyLIFT's 4" coil-spring kit combines specially engineered coil springs, front and rear Falcon 1.1 monotube shocks, the front track bar relocation bracket and heavy-duty tubular radius arms. The gusseted, inward-formed radius arms correct suspension geometry, add tire clearance and bolt on directly. Model-specific brake line extension brackets, bump stop extensions and sway bar frame mount extensions complete the kit.

Fits: 2017-2022 Ford Super Duty F-250/F-350 4WD Power Stroke diesel, single rear wheel only. Not recommended for 2WD or gas trucks.

Features

• 4" coil-spring lift with HD tubular radius arms for improved caster angle
• Four Falcon 1.1 monotube shocks
• Bolt-on installation; no structural modifications required

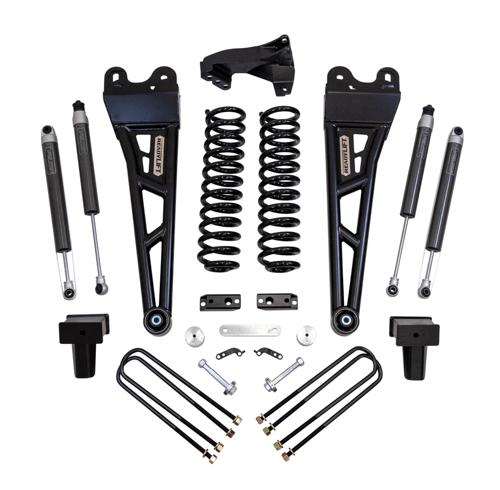

Kit Includes

• 4" lift front coil springs
• Tubular radius arms
• Front track bar relocation bracket
• Brake line extension and bump stop extension brackets
• Sway bar frame mount extensions and (4) Falcon 1.1 monotube shocks

Tire Fitment

Up to 37" tall tires on 9" wide wheels with +18 offset.

Notes

2017-2019 models may sit slightly lower. Single-cab configuration not validated by ReadyLIFT.
