ReadyLift - 4" Coil Spring Lift Kit with Falcon 2.1 Shocks & Radius Arms - 2023-2026 Ford Super Duty F-250/F-350 (4WD Diesel) - 49-23423

4" coil-spring lift kit with four Falcon 2.1 monotube shocks, tubular radius arms and a Falcon dual steering stabilizer for 2023-2026 Ford Super Duty diesel 4WD.

ReadyLIFT's 4" coil-spring kit includes front and rear Falcon 2.1 monotube performance shocks, the front track bar relocation bracket, heavy-duty tubular radius arms, a Falcon dual steering stabilizer and rear fabricated blocks. This is the sweet spot for Super Duty driving dynamics and maximum tire size with everyday usability.

Fits: 2023-2026 Ford Super Duty F-250/F-350 4WD Power Stroke diesel, single rear wheel only. Not recommended for 2WD or gas trucks.

Features

• 4" coil-spring lift with tubular radius arms for correct caster angle
• Four Falcon 2.1 monotube shocks
• Falcon dual steering stabilizer included
• Bolt-on installation; no structural modifications required

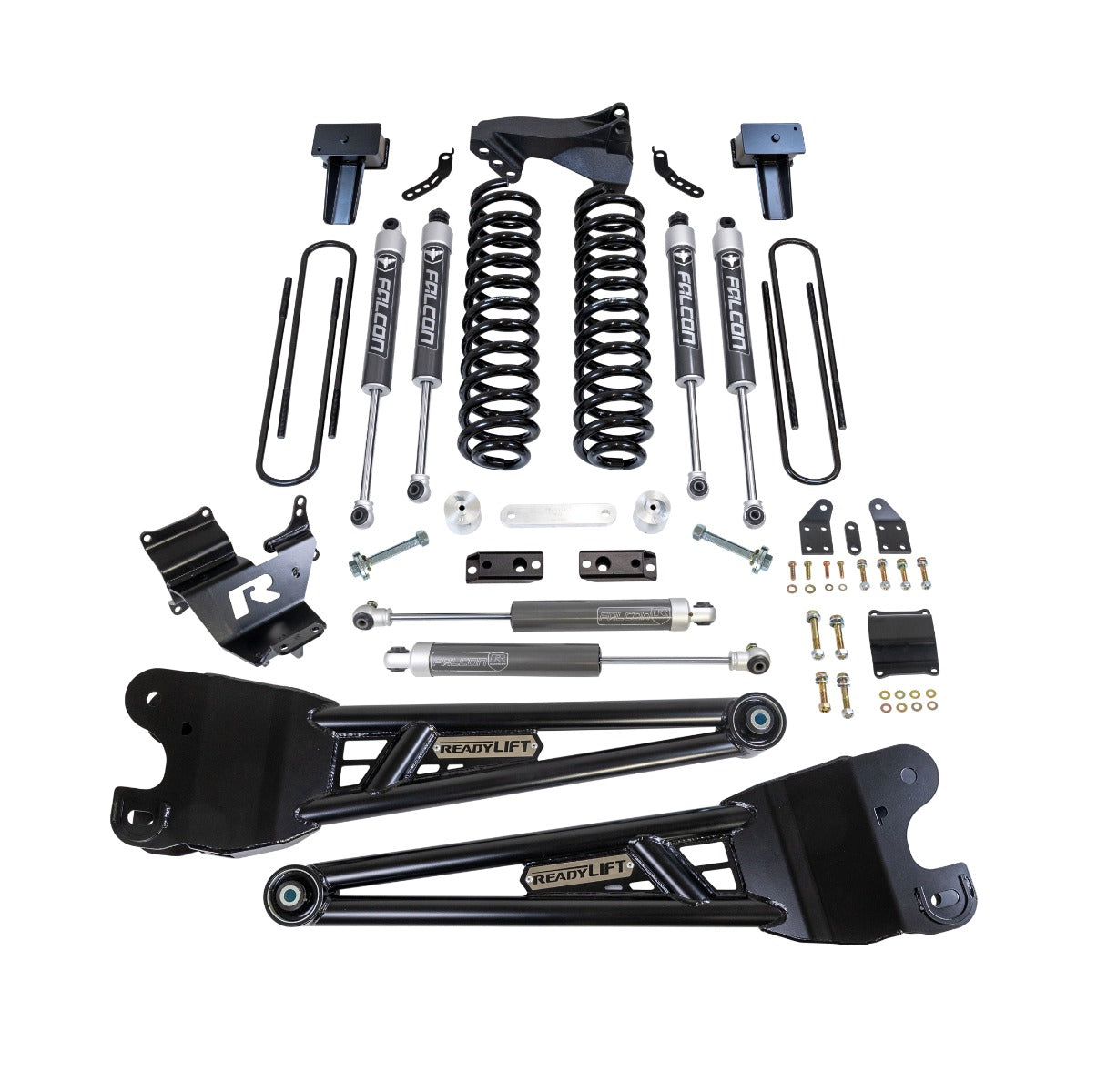

Kit Includes

• 4" lift front coil springs
• Tubular radius arms
• Front track bar relocation bracket
• Falcon dual steering stabilizer
• Rear fabricated blocks and (4) Falcon 2.1 monotube shocks

Tire Fitment

Up to 37" tall tires on 9" wide wheels with +18 offset.

Notes

Tremor versions will not gain the full 4" over stock. Trucks with the Onboard Scale option require the auto-leveling headlight bypass bracket (PN 67-23610). Caster bushings will not work on 10-lug trucks. Single-cab configuration not validated by ReadyLIFT.
