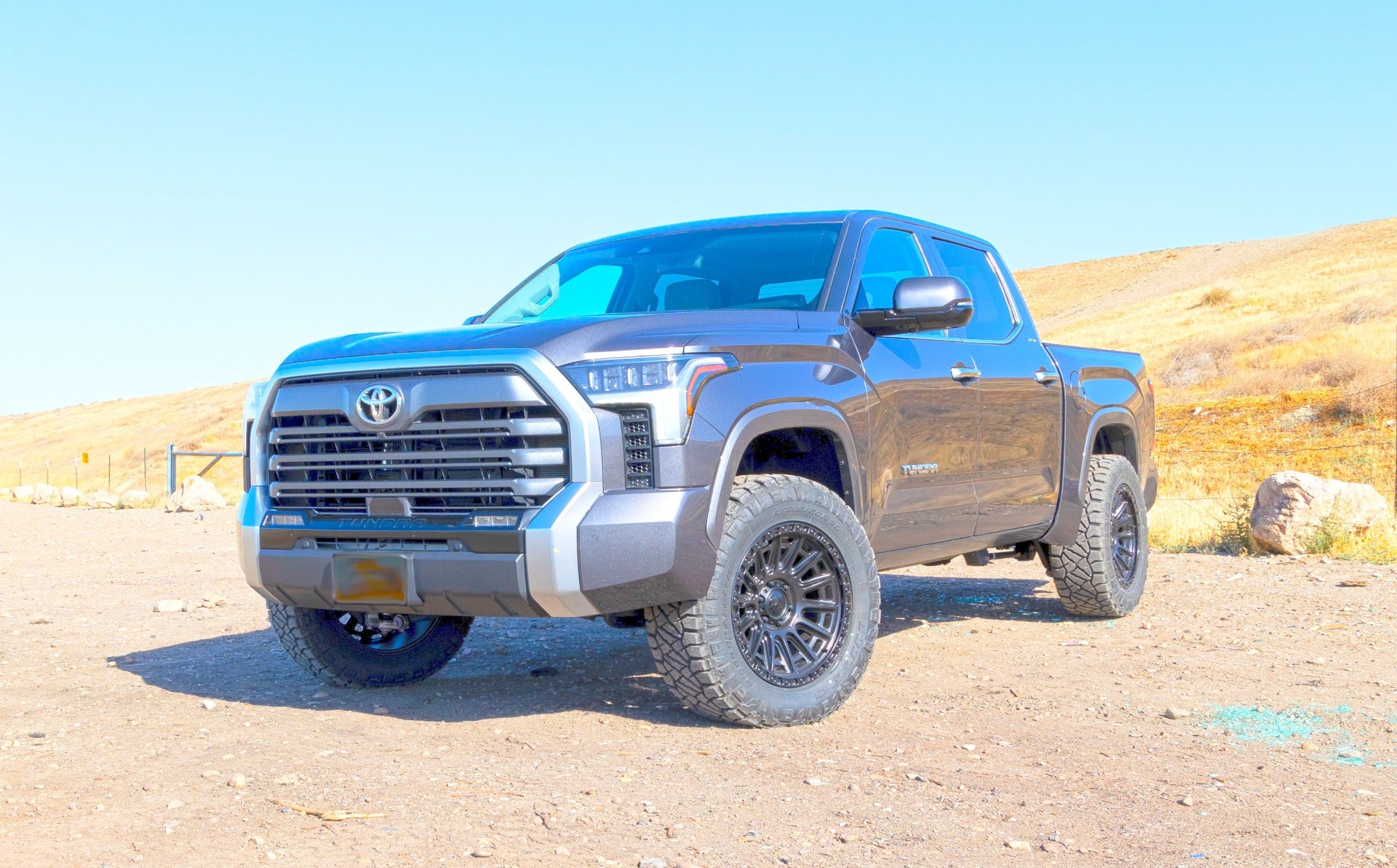

2" SST lift kit for the 2022-2024 Toyota Tundra with rear air suspension.
Levels all four corners of air-equipped Tundras: a front strut spacer adds lift without compressing springs, while rear airbag spacers retain full use of the load-leveling air system. Shock extensions, brake-line spacers/brackets and a slotted ride-height sensor bracket are included for fine-tuning.
Fits: 2022-2024 Toyota Tundra equipped with Load-Leveling Rear Height Control Air Suspension and AVS (2WD/4WD), including the i-Force Max V6 Hybrid. Not for coil-spring trucks, 1794 Edition, or TRD Pro.
Features
- 2" level lift on all four corners
- Retains full rear air-suspension operation
- Slotted ride-height sensor bracket for adjustment
- Clears tires up to 34"

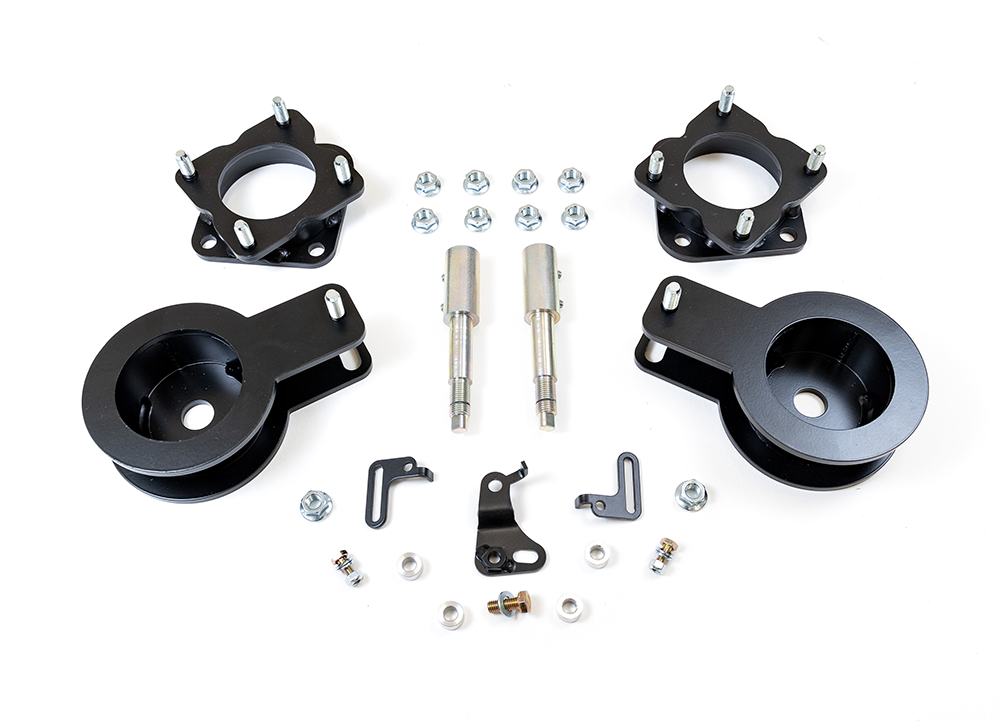

Kit Includes
- Fabricated steel front strut spacers
- Rear airbag spacers
- Rear shock extensions
- Brake line spacers and brackets
- Slotted rear ride-height sensor bracket
- Necessary hardware
Tire Fitment
Up to 34" (295/60R20 no-trim on a 20x9 wheel, +18 offset).
Notes
For rear-air (AVS) Tundras only; not for coil-spring trucks, 1794 Edition, or TRD Pro. Covers the i-Force Max V6 Hybrid.
