ReadyLift - 3"F/1"R SST Lift Kit - 2005-2023 Toyota Tacoma - 69-5112

3" front / 1" rear SST lift kit for the 2005-2023 six-lug Toyota Tacoma.

ReadyLIFT's Smart Suspension Technology uses fabricated steel top-mount strut extensions and a tapered 1" cast-iron rear block to net a near-level 2.75"-3.0" of front lift with room for larger tires, all while keeping the factory ride. Differential-drop and skid-plate spacers preserve CV angles and clearance on 4WD, and sway bar drop brackets are included.

Fits: 2005-2023 Toyota Tacoma 6-lug TRD / SR5 / Rock Warrior / Prerunner (2WD/4WD). Not for TRD Pro models.

Features

• 3" front / 1" rear lift (nets 2.75"-3.0" up front)
• Sway bar drop brackets
• Differential-drop for correct CV angles
• Retains OEM ride and geometry
• Clears up to 33" (32.5" recommended)

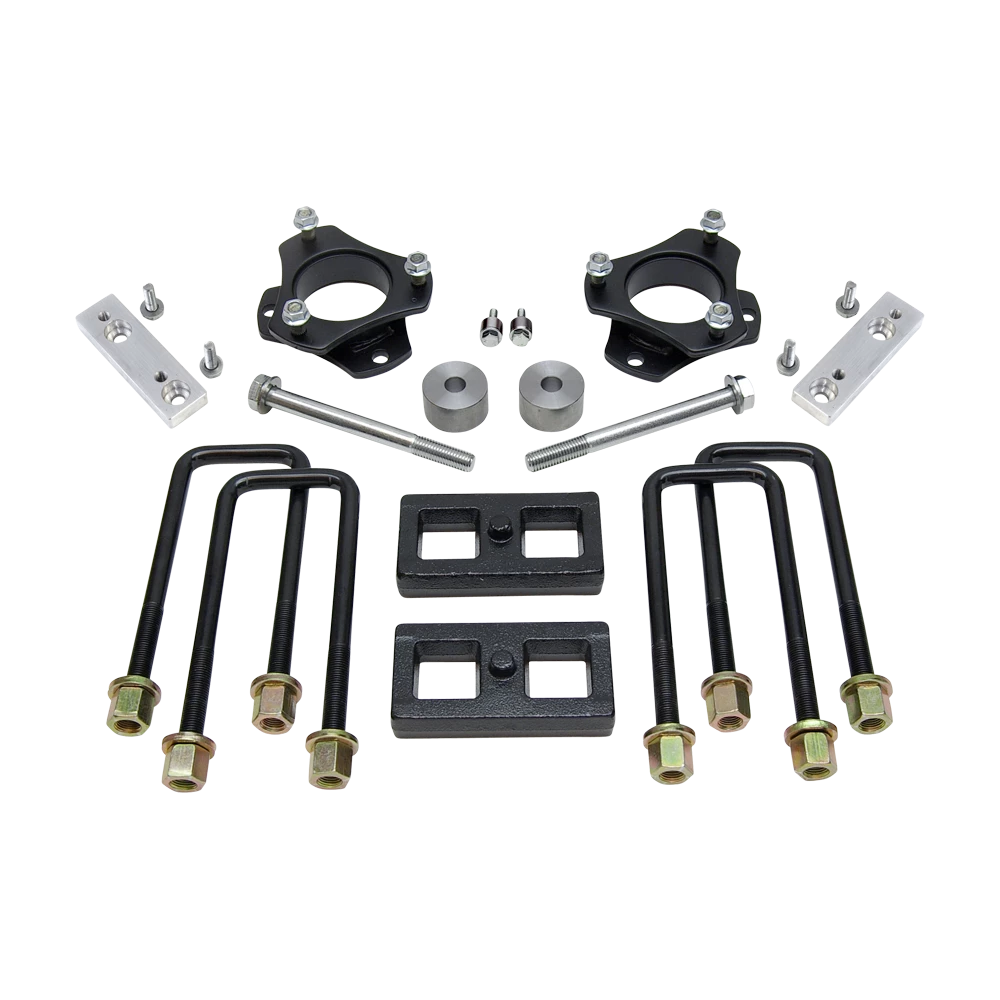

Kit Includes

• Pair of fabricated steel top-mount strut extensions
• OEM-style cast-iron 1" rear lift blocks with longer U-bolts
• Sway bar mount spacers
• Differential drop spacers
• Skid plate spacers
• Necessary hardware

Tire Fitment

Up to 33" (33x11.50 on a 9" wheel, +6 offset; minor fender trimming required for 33"). 32.5" recommended for no-trim fitment.

Notes

Not for TRD Pro models. On some 2016-2023 Tacomas with the "Crawl" transfer case, do not use the differential-drop spacers. 2011+ trucks may require an adjustable upper control arm to correct caster. Estimated installation time ~6 hours (excluding alignment).
